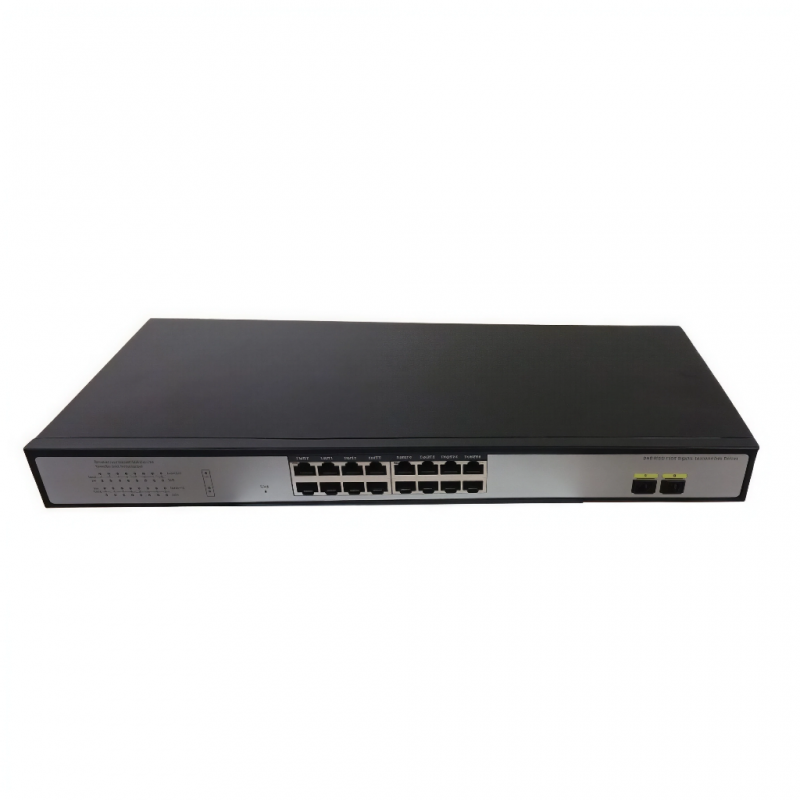

4Power Switch PoE Web Smart 16 ports 10/100/1000 + 2SFP 200W 4N-WSG16P2F

4power
4power
4PW 4N-WSG16P2F

The Switch PoE Web Smart 4Power 4N-WSG16P2F offers 16 Gigabit PoE+ ports and 2 SFP slots, with a 200 Watt PoE budget, ideal for corporate networks, IP surveillance, and professional Wi-Fi infrastructures:

  • 16 Gigabit PoE+ 802.3af/at ports

  • 2 1000Base-X SFP slots

  • Total PoE budget 200 Watt

  • Power Supply: AC 100–240V 50/60Hz

  • VLAN 802.1Q, STP/RSTP, IGMP Snooping

  • 8-level QoS

  • Web and SNMP v1/v2c management

  • Storage Temperature: -40°C ~ +75°C

  • Operating Temperature: -20°C ÷ +55°C

  • Dimensions: 440 × 190 × 45 mm

  • Certifications: CE, FCC, RoHS, WEEE, REACH

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
4Power Switch PoE Web Smart 16 ports 10/100/1000 + 2SFP 200W 4N-WSG16P2F
€304.37
€295.23
€295.23

Lowest price in 30 days:
€304.37
Save 3%
€295.23
Tax included
Calculate shipping cost
Offer expires in
Items Available: 1
Further availability of the manufacturer
€295.23

Buy it within and receive it from Thursday, 19 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Switch PoE Web Smart 4Power 16 Ports + 2 SFP, stable Gigabit connectivity

The 4N-WSG16P2F from 4Power is a Web Smart switch designed for professional environments requiring advanced control, centralized PoE power, and stable Gigabit connectivity.

The 16 10/100/1000BASE-T RJ45 auto MDI/MDI-X ports allow direct connection and power supply to IP cameras, Wi-Fi access points, VoIP phones, and IoT devices.

The 2 1000Base-X SFP slots allow fiber optic uplinks for network backbones or connections between rack cabinets.

PoE management functions:

  • Port enable/disable

  • Power and current monitoring

  • PoE status control per port

Perfect for video surveillance systems and professional wireless networks.

General Data
Total Ports 18 (16 RJ45 + 2 SFP)
RJ45 Ports 16 x 10/100/1000BASE-T RJ45 auto MDI/MDI
SFP Ports 2 x 1000Base-X SFP Slots
Switch Fabric 24 Gbps
Throughput 14.88 Mpps
MAC Address 8K
PoE Standard IEEE 802.3af / IEEE 802.3at
PSE Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power per Port Max 15.4W (802.3af), Max 30W (802.3at)
PoE Power Budget 200 W
Network Standard IEEE802.3X full-duplex, Backpressure half-duplex, IEEE 802.3af/at
Power Supply AC 100-240V 50/60Hz
LED Indicators PWR (green), Link (green), PoE (green)
Dimensions (LxWxH) 440 mm x 190 mm x 45 mm
Certifications CE, FCC, RoHS, WEEE, REACH
Port Mirroring TX / RX / Both - Many-to-1 monitor
VLAN 802.1Q tag-based, up to 26 VLAN groups
Spanning Tree Protocol STP (IEEE 802.1D), RSTP (IEEE 802.1w)
IGMP Snooping Supported
QoS 8 priority levels; port and 802.1p mapping
Security IEEE 802.1X port-based; Static MAC; Storm Control
Management Web browser, SNMP v1/v2c; Firmware via HTTP; Loopback Detection; Bandwidth Control (16-1000000 Kbit/s); PoE Management
ESD Protection 6 kV
Operating Temperature -20 ~ 55°C
Storage Temperature -40 ~ 75°C

There are no reviews

Data sheet

Type:
PoE Network Switches
System:
IP
Doors:
16+2
