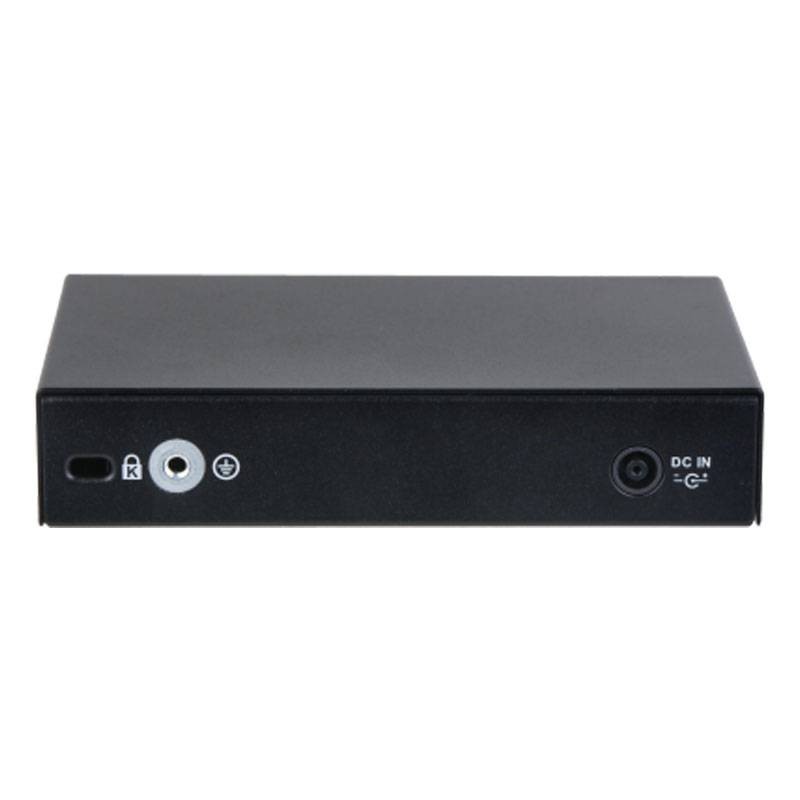

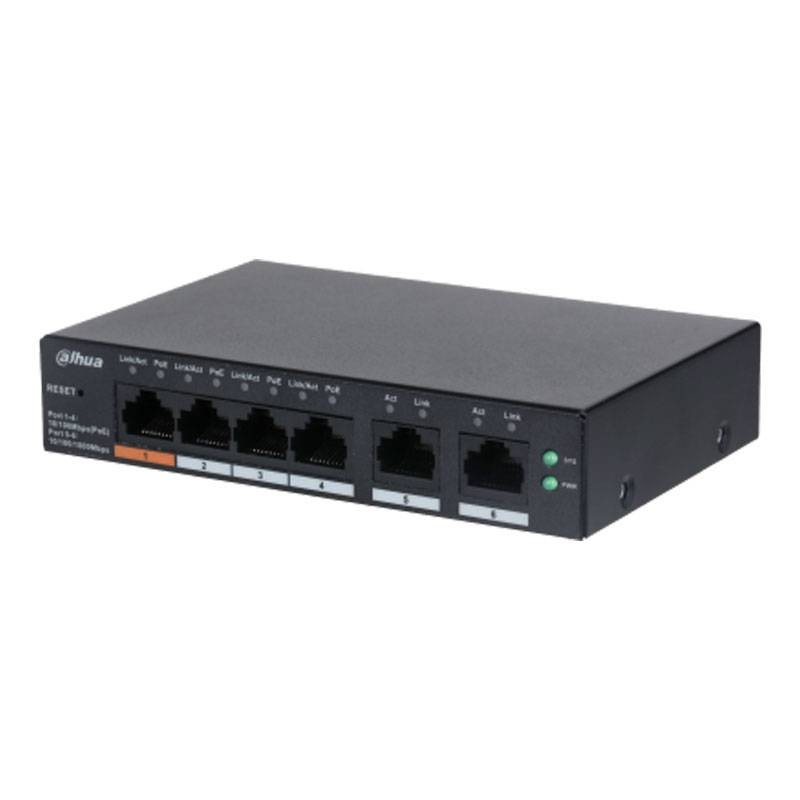

Dahua Cloud Switch 6 Ports POE M-0032448
DAH M-0032448
6923172571175
Dahua Ethernet 6-Port PoE Cloud Switch with cloud management, 4 PoE 10/100 Mbps ports and 2 Gigabit uplink ports. Supports intelligent PoE and Hi-PoE standard.
-
4 PoE 10/100 Mbps ports to directly power devices such as IP cameras
-
2 Gigabit 10/100/1000 Mbps uplink ports for fast and stable data traffic
-
Management from the cloud for remote control and centralized configurations
-
Support PoE intelligent automatic power management
-
Closed, dustproof metal enclosure, durable for installation in harsh environments
-
Wide operating temperature range for outdoor installations or technical cabinets
€56.39
Items Available: 19
Dahua 6-Port PoE Cloud Switch: Stable connection, remote control
The Dahua M-0032448 Switch is a compact and professional device designed to ensure reliable performance in PoE IP networks. The 4 RJ-45 ports support the IEEE 802.3af / at / Hi-PoE standard, enabling direct powering of compatible devices (such as cameras or IP phones) without the need for additional power supplies.
Cloud management enables remote monitoring, diagnostics, and full control from a centralized platform, making it ideal for multi-site installations or smart building installations.
Recommended Applications.
-
IP video surveillance systems
-
Home automation installations with PoE devices
-
Small- to medium-sized enterprise networks
-
Installations in industrial or technical environments due to the reinforced structure
Technical specifications of the Dahua 6-Port POE Cloud Switch
Hardware
| Power adapter included | Yes |
|---|---|
| PoE | Yes |
| Ethernet port | 4 |
| Ethernet port speed | 10/100 Mbps |
| Ethernet port uplink speed | 10/100/1000 Mbps |
| Function slot description | Ports 1-4: 4 × RJ-45 10/100 Mbps (PoE); Ports 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Reset button | 1 |
| External power supply | 53 VDC, 1.226 A |
Environmental Conditions
| Operating temperature | -10 °C ~ +55 °C |
|---|---|
| Operating humidity | 5%-95% RH, non-condensing |
| Storage Temperature | -40 °C ~ +70 °C |
| Storage humidity | 5%-95% RH, non-condensing |
| Power Consumption | Minimum ≤ 3 W, Full load 65 W |
Performance
| Layer | Layer 2 |
|---|---|
| Management type | Yes |
| Intelligent managed switch | Yes |
| MTBF | 232.62 years |
| Switching capacity | 4.8 Gbps |
| Packet forwarding rate | 3.57 Mpps |
| Packet buffer | 4 Mbit |
| Jumbo Frame | 9216 bytes |
| MAC table | 8K |
| VLAN number | 32 |
| Communication standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
PoE Features
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
|---|---|
| PoE Power Supply | Port 1 ≤ 60 W; Ports 2-4 ≤ 30 W; Total ≤ 60 W |
| PoE consumption management | Yes |
| PoE Pin Assignment | 1,2,4,5(V+), 3,6,7,8(V-) |
| Long-distance transmission | Yes |
Network Functionality
| VLAN Functionality | Port-based |
|---|---|
| IEEE 802.3x flow control | Yes |
| DHCP Functionality | DHCP client |
| Device Management | Web, App |
General
| Static Protection | Discharge to air: 8 kV; Contact: 6 kV |
|---|---|
| Lightning Protection | Common mode: 4 kV; Differential: 2 kV |
| Net weight | 0.28 kg |
| Gross weight | 0.92 kg |
| Product dimensions | 130 × 90 × 26 mm |
| Packaging dimensions | 265 × 238 × 76 mm |
| Casing material | Sheet metal |
| Installation | Table or wall mounting |
