Unmanaged PoE switch for professional networks and video surveillance

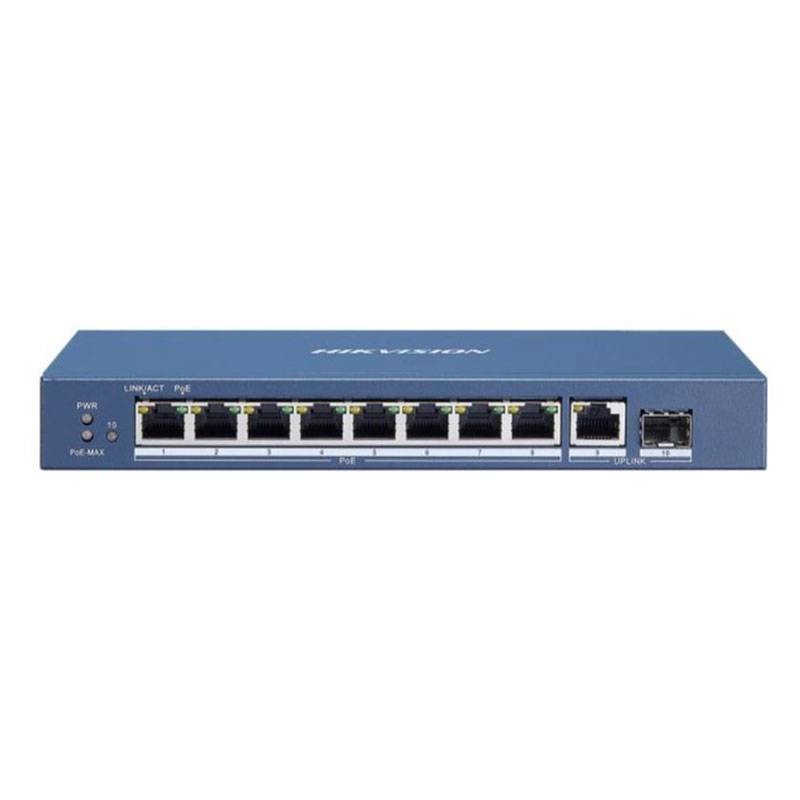

The DS-3E0510P-E switch is designed to provide high performance data transmission and PoE power for IP devices such as cameras, access points, and VoIP phones. With support for the IEEE 802.3af/at standard, it can provide up to 30W per port, with a total PoE budget of 110W.
10 total ports for maximum connectivity
The device includes:
-
8 Ethernet 10/100/1000 Mbps PoE ports
-
1 Gigabit uplink RJ45 Ethernet port
-
1 Gigabit uplink SFP port
An ideal configuration for IP video surveillance networks, enterprise networks and retail environments
Built-in reliability and security
The switch features surge protection up to 6 kV, ensuring long life even in electrically unstable environments. Fanless (fanless) design reduces noise and improves reliability over time.
Plug and play and flexible installation
The plug and play feature allows immediate installation, with no configuration required. It can be wall- or desktop-mounted, making it versatile for any usage scenario.
Hikvision Poe Switch Technical Specifications
General Specifications
| Shell |
Metal material, fanless design |
|---|
| Net weight |
0.6 kg (1.32 lb.) |
|---|
| Gross weight |
1.4 kg (3.09 lb.) |
|---|
| Dimensions (W × H × D) |
217.6 × 27.8 × 108.55 mm (8.6'' × 1.1'' × 4.3'') |
|---|
| Operating temperature range |
0 °C to 40 °C (32 °F to 104 °F) |
|---|
| Storage temperature |
-40 °C to 85 °C (-40 °F to 185 °F) |
|---|
| Operating humidity |
5% 95% (without condensation) |
|---|
| Relative humidity |
5% 95% (non-condensing) |
|---|

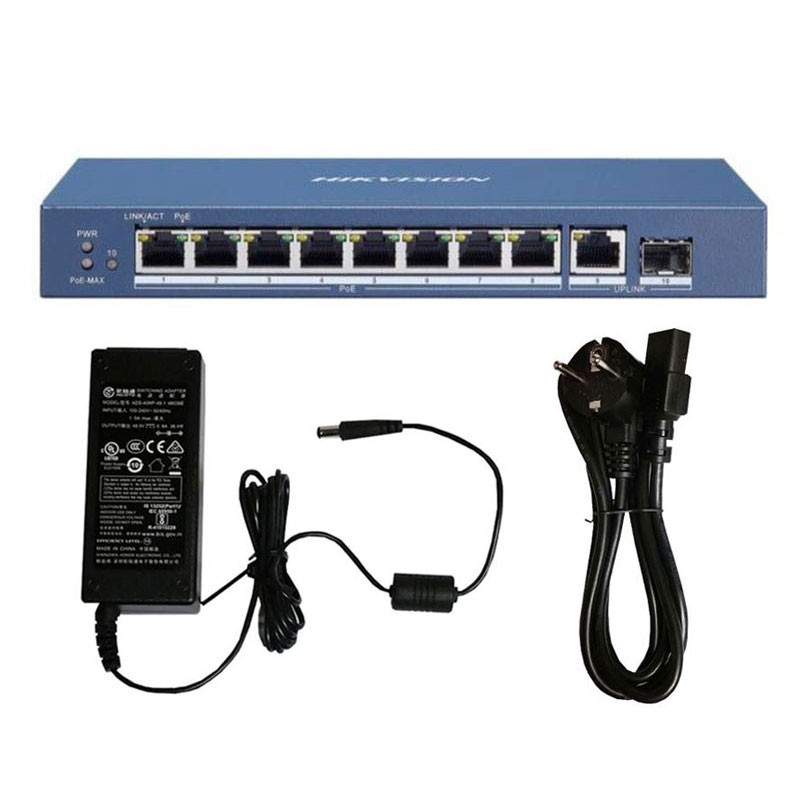

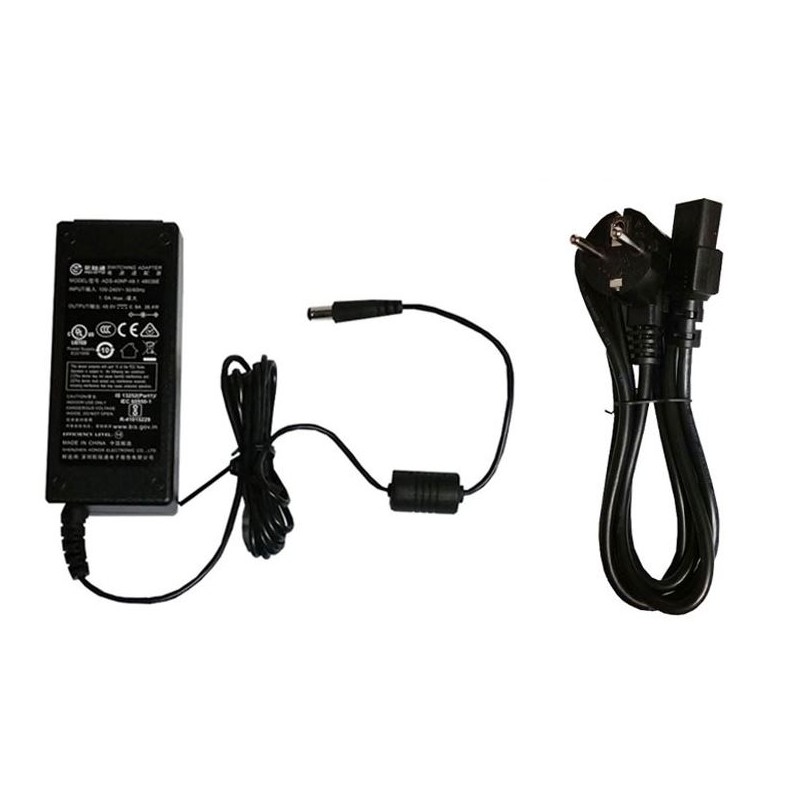

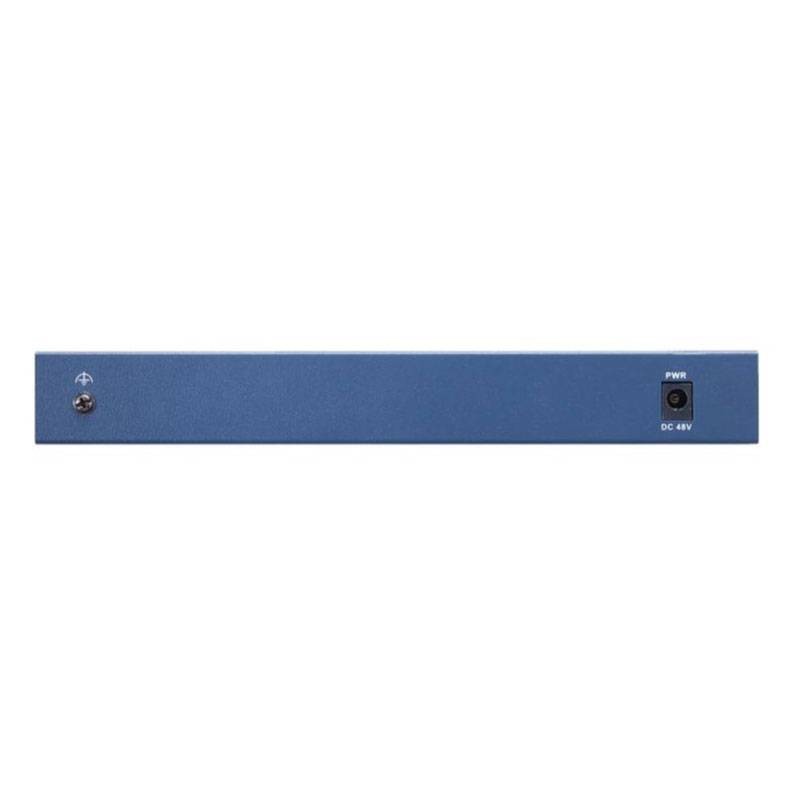

| Power supply |
48 V DC, 2.5 A |
|---|
| Maximum power consumption |
120 W |
|---|
| Power consumption in idle mode |
10 W |
|---|
| Installation mode |
Wall or desktop mounting |
|---|
| Surge protection |
6 kV |
|---|
Network Parameters
| Ports |
8 Gigabit PoE ports, 1 Gigabit RJ45 port, 1 Gigabit fiber optic port |
|---|
| MAC Address Table |
4K |
|---|
| Switching capacity |
20 Gbps |
|---|
| Packet forwarding speed |
14.88 Mpps |
|---|
| Internal cache |
1.5 Mbit |
|---|
PoE power supply
| PoE standards |
IEEE 802.3af, IEEE 802.3at |
|---|
| PoE power supply pins |
1/2(+), 3/6(-) |
|---|
| PoE port |
Ports 1 to 8 |
|---|
| Maximum power per port |
30 watts |
|---|
| PoE power budget |
110 Watts |
|---|
