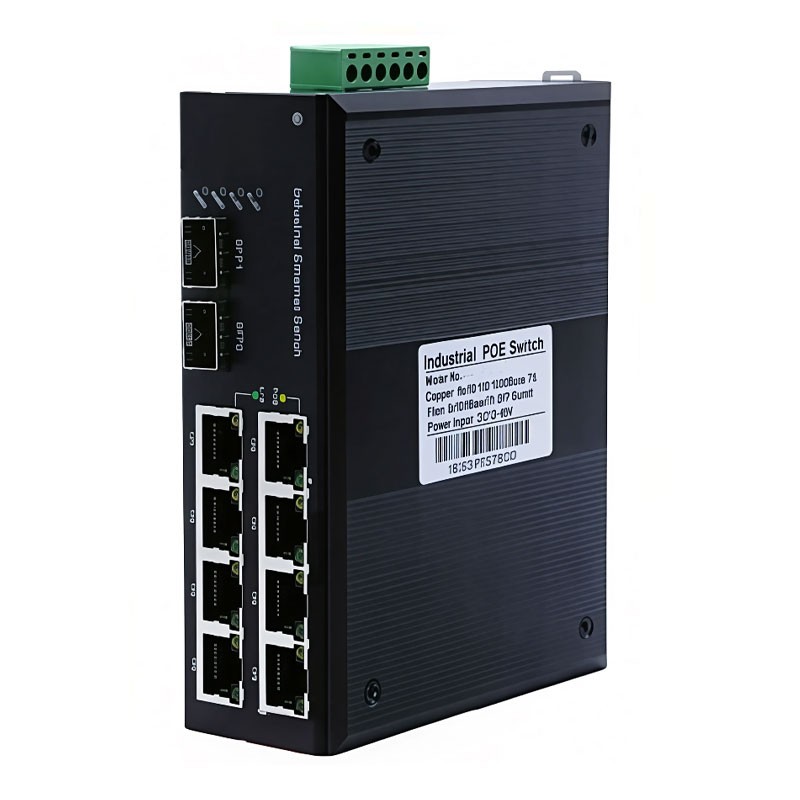

Industrial PoE Switch 4Power 4N-IG08P2F for professional networks
The 4N-IG08P2F from 4Power is an unmanaged industrial PoE switch compliant with IEEE 802.3af/at standards, designed to ensure high performance in industrial LAN networks, automation, video surveillance, and outdoor infrastructures.
The 8 Gigabit RJ45 ports provide PoE power directly over LAN cable, eliminating the need for local power supplies for devices such as IP cameras and wireless access points.
Network extension via optical fibre
Thanks to the 2 SFP 1000Base-X slots, the switch allows the conversion of the Gigabit Ethernet signal from copper to multimode or single-mode optical fibre, increasing the transmission distance compared to the 100 metres of copper.
It supports standard 1000Base-SX/LX SFP transceivers, allowing integration into industrial backbones or long-distance connections.
Industrial performance and reliability
Store and Forward architecture for secure and stable transmission. Maximum packet size: 10K byte.
Designed for extreme environments
IP40 aluminium alloy structure, robust and compact, ideal for electrical panels, industrial plants, and critical networks.
| General data |
| Protocols / Standards |
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x, IEEE802.1d, IEEE802.1Q, IEEE802.3af/at PoE |
| Processing type |
Store and Forward |
| MAC table size |
1024 bit |
| Buffer space |
1 Mbit |
| Backplane bandwidth |
12 Gbps |
| Latency |
<20 μs |
| Copper ports |
8 x RJ45 10/100/1000M (max distance 100 m) |
| Fibre optic ports |
2 x SFP slot 1.25G (variable distance based on SFP module) |
| LED indicators |
PWR1, PWR2, FL/A (fibre), TL/A (copper) |
| Input voltage |
12~56 VDC (redundant inputs) |
| Power consumption |
171W (PoE af) - 288W (PoE at) at full load |
| Protection |
Current overload; Polarity reversal |
| Power connector |
Terminal block |
| Operating temperature |
-40 °C ~ +85 °C |
| Storage temperature |
-40 °C ~ +95 °C |
| Relative humidity |
5-95% non-condensing |
| Housing |
Aluminium alloy, IP40 protection |
| Mounting |
DIN-Rail, wall |
| Dimensions |
138x107x45 mm |
