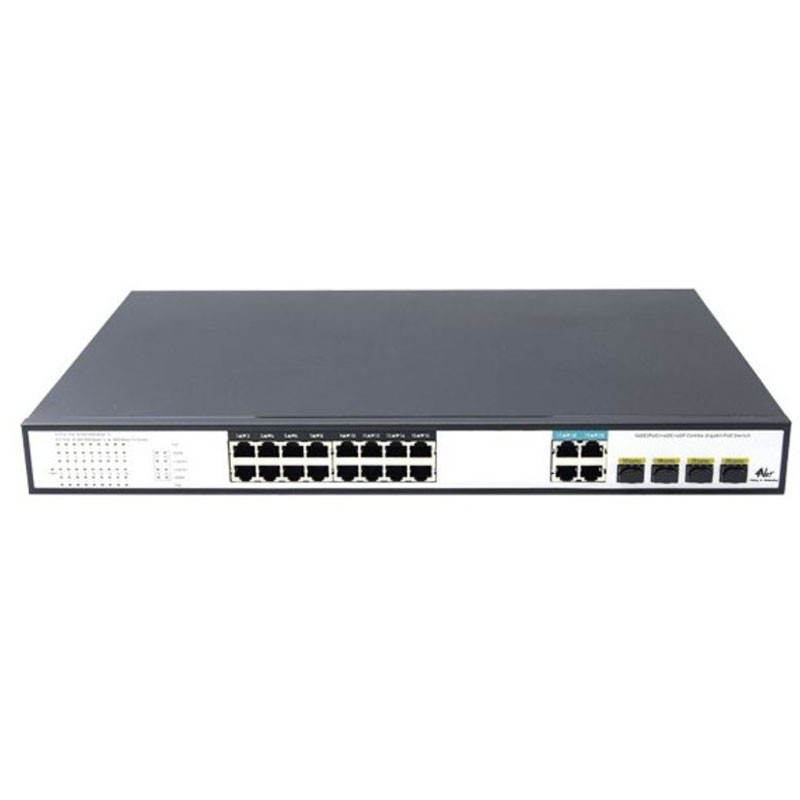

Switch PoE 4Power 4N-G16P4T4FC: power and connectivity for professional networks
The 4N-G16P4T4FC from 4Net is a professional PoE switch designed for corporate environments, structured offices, and IP surveillance systems. It integrates 16 PoE+ Gigabit ports, allowing direct power supply to devices such as IP cameras, Wi-Fi access points, VoIP phones, and network terminals without the need for dedicated power supplies.
The 4 Gigabit Combo ports and 4 SFP ports ensure high-speed uplink to fibre optic backbones or connections between network cabinets.
Advanced PoE power up to 300 Watts
Compliance with IEEE 802.3af/at standards for intelligent power delivery. The system automatically assigns the power required by connected devices. End-Span technology with power on pairs 1/2 (+) and 3/6 (-).
High performance and traffic management
Features like QoS and flow control improve data traffic quality, essential for VoIP and surveillance applications.
The Power, Speed, and PoE Active LED indicators allow immediate operational status control.
Robust structure and industrial reliability
The durable metal housing ensures longevity and protection. LED indicators for Power, Link/Act, PoE-Max, and SFP allow immediate monitoring.
Protection against surges up to 6kV, CE, FCC, RoHS, Reach, WEEE certifications.
| General Data |
|---|
| Total Ports |
20 |
| PoE Ports |
16 ports 10/100/1000 Base-T PoE |
| Gigabit Ports |
4 ports 10/100/1000 Base-T |
| SFP Ports |
4 SFP fibre ports |
| Switch Fabric |
56 Gbps |
| Throughput |
35.71 Mpps |
| MAC Address |
8K |
| Buffer |
4M SRAM |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PSE Type |
End-Span |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Output Power |
52V DC / Max. 30W per port |
| PoE Power Budget |
300 Watts |
| Supported PoE Classes |
Class 2: 16 ports @ 6.5W - Class 3: 16 ports @ 12.9W - Class 4: 12 ports @ 25.5W |
| Maximum Distance |
100 metres |
| Network Standards |
IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3x Flow Control, IEEE802.3af/at PoE, IEEE802.3az EEE |
| LED Indicators |
Power, Link/Act, PoE-Max, SFP |
| Power Supply |
AC 100-240V |
| Dimensions (LxWxH) |
440mm x 290mm x 44.5mm |
| Net Weight |
3.5 Kg |
| Operating Temperature |
-10°C ~ +45°C |
| Humidity |
10% - 90% non-condensing |
| Certifications |
CE, FCC Part 15, RoHS, Reach, WEEE |
