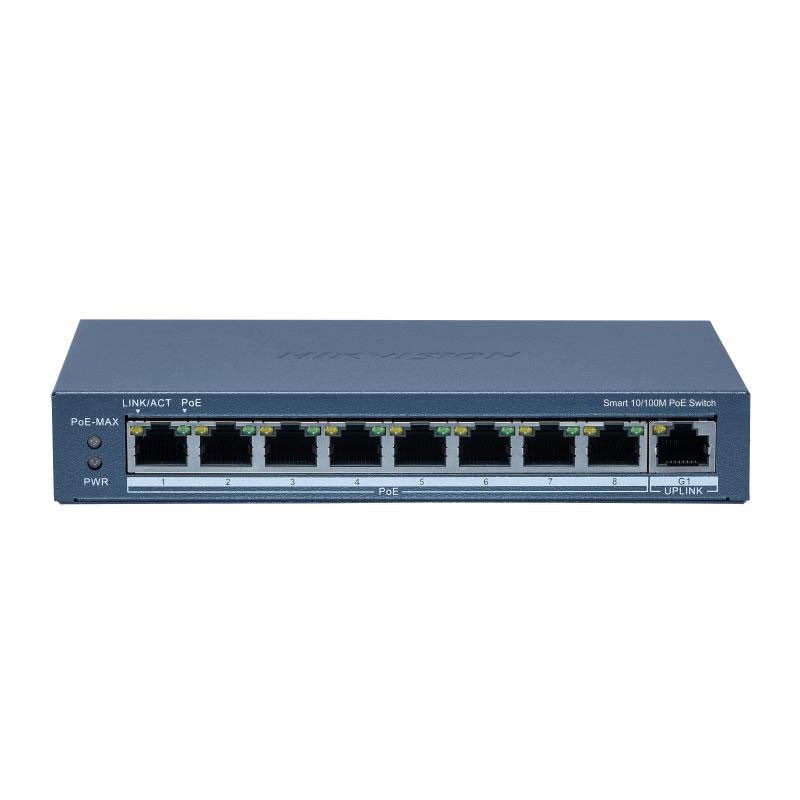

Hikvision PoE Network Switch DS-3E1309P-EI Fast Ethernet 8 ports 301803154
HIK 301803154
6942160495750
Hikvision DS-3E1309P-EI (301803154) is a PoE Fast Ethernet switch with 8 PoE 10/100 ports and 1 Gigabit uplink: 110W PoE budget, long-distance mode up to 300 m, VLAN 802.1Q and PoE watchdog for reliable surveillance systems.
-
8 PoE 10/100 Mbps ports + 1 Gigabit RJ45 port for fast uplink
-
PoE IEEE 802.3af/at, up to 30 W per port
-
Total PoE budget 110 W to power multiple cameras and IP devices
-
PoE long range up to 300 m for cameras over long distances
-
Network functions: VLAN 802.1Q, STP/RSTP anti-loop, cable detection
-
24/7 reliability: PoE Watchdog + 6 kV surge protection.
€87.84
Items Available: 1
PoE Switch DS-3E1309P-EI: compact, powerful and perfect for video surveillance
The DS-3E1309P-EI is the ideal switch for IP systems where few ports are needed but with professional functions. The 8 PoE ports allow direct connection and powering of IP cameras, video intercoms or access points, reducing power supplies and simplifying installation. The presence of a Gigabit uplink port is a concrete advantage: even if the PoE ports are 10/100, the uplink avoids bottlenecks to NVR or router when multiple video streams arrive together.
PoE+ up to 30W and 110W budget: well-sized power supply
The switch supports IEEE 802.3af/at (PoE/PoE+) with a maximum of 30 W per port. The most important data for sizing is the total PoE budget of 110 W: it means that the total power deliverable on the ports is shared among the connected devices. It is perfect for 48 cameras (depending on the consumption of each), even with models equipped with IR or advanced functions.
The PoE pins on 8-pin power are also indicated: 1/2(-), 3/6(+), 4/5(+), 7/8(-), useful in diagnostics and special cabling.
Transmission up to 300 meters: ideal for perimeters and outdoor areas
The PoE long range function up to 300 m solves one of the most common problems in video surveillance systems: cameras far from the technical room. It is very useful for gates, parking lots, warehouses, courtyards and perimeters where the distance exceeds the standard limits of traditional Ethernet.
VLAN, STP/RSTP and cable diagnostics: more stable and orderly network
The DS-3E1309P-EI integrates network functionalities that make a difference in real systems:
-
VLAN 802.1Q to separate the video network from the data network (more security and less mixed traffic)
-
STP/RSTP to prevent loops and network blocks in more complex topologies
-
Cable detection to identify faults or connection issues, speeding up assistance.
These functions improve stability and reduce troubleshooting times, especially in multi-switch systems.
PoE Watchdog and 6 kV protection: 24/7 continuity without interventions
The PoE Watchdog monitors connected devices and can automatically restart cameras that do not respond, restoring service without manual intervention. In addition, the 6 kV surge protection increases resilience on outdoor installations or in industrial environments where disturbances and discharges are more likely.
| GENERAL | |
|---|---|
| Enclosure | Metal material, fanless design |
| Net weight | 0.35 kg |
| Gross weight | 1.114 kg |
| Dimensions (W × H × D) | 170 × 27.6 × 93.1 mm |
| Operating temperature | 0 °C ~ +40 °C |
| Storage temperature | -40 °C ~ +85 °C |
| Operating humidity | 5% – 95% (non-condensing) |
| Power supply | 54 V DC, 2.22 A |
| Installation mode | Desktop, wall |
| Maximum power consumption | 120 W |
| Standby power consumption | 10 W |
| Surge protection | 6 kV |
| NETWORK PARAMETERS | |
| Ports | 8 PoE ports 10/100 Mbps, 1 Gigabit RJ45 port |
| MAC table | 8,000 addresses |
| Packet forwarding rate | 4.17 Mpps (total) / 2.68 Mpps (per port) |
| Switching capacity | 5.6 Gbps (total) / 3.6 Gbps (per port) |
| Internal cache | 4 MB |
| POE POWER SUPPLY | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE ports | From 1 to 8 |
| PoE pins | 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| Max power per port | 30 W |
| Total PoE budget | 110 W |
| SOFTWARE FUNCTIONS | |
| Long range | Ports 1–8 up to 300 m |
| Port isolation | Isolation mode for network security |
| PoE Watchdog | Automatic restart of non-responsive cameras |
| Loop prevention | STP 802.1D, RSTP 802.1w |
| VLAN | 802.1Q, ID 1–4094, Access / Trunk |
| Remote management | Hik-Partner Pro, Web, Hik-Central Pro, LLDP, Mirroring, cable detection |
| CERTIFICATIONS | |
| Safety | IEC 62368-1, EN 62368-1 |
| Compliance | CE, RoHS, WEEE, REACH |
There are no reviews
Data sheet
- Type: PoE Network Switches
- System: IP
- Doors: 8+1
