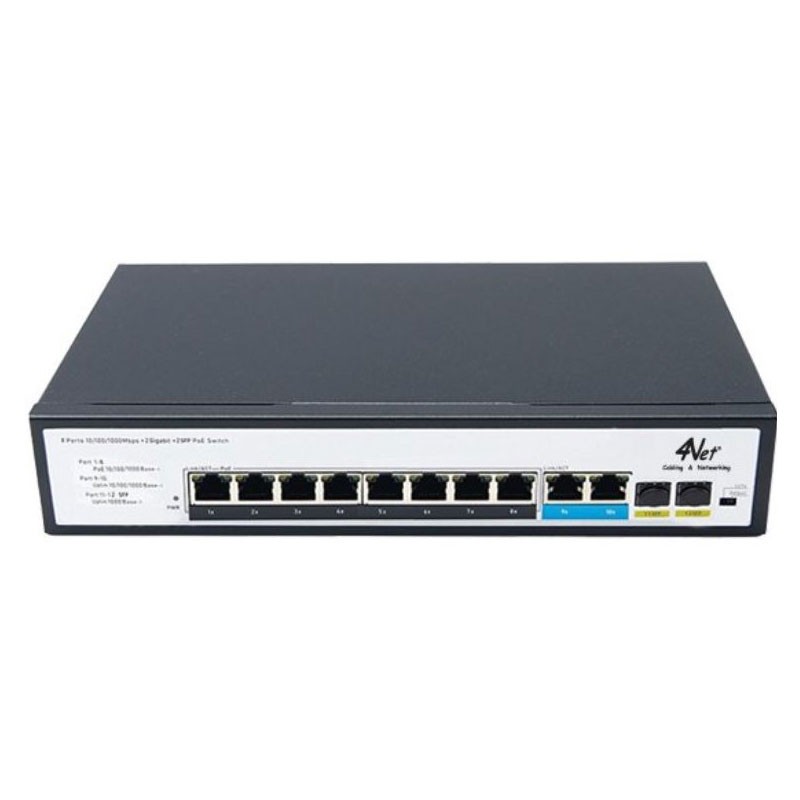

Switch PoE 4Power 4N-G08P2T2F: power and connectivity in a single device
The PoE switch 4N-G08P2T2F by 4Power is a complete solution for powering and connecting network devices in a corporate environment. Thanks to the 8 PoE+ Gigabit ports, it allows you to power IP cameras, Wi-Fi access points, VoIP phones, and other compatible devices directly via Ethernet cable, eliminating the need for dedicated power outlets.
The 2 RJ45 Gigabit ports and the 2 fiber optic SFP ports ensure high-speed uplink to network backbones or long-distance connections.
Intelligent and high-performance PoE power
Compatible with IEEE 802.3af/at standards, the switch delivers up to 30W per port, with a total budget of 120W. The automatic detection system assigns the necessary power to each connected device, optimizing consumption and safety.
The maximum PoE power distance reaches 250 meters, ideal for extensive video surveillance systems.
Compact and reliable design
The robust metal housing ensures durability over time and effective heat dissipation. The compact dimensions (290 × 200 × 44 mm) make it suitable for installations in rack cabinets, offices, or technical environments.
LED indicators Power, Link/Act, PoE-Max, and SFP allow immediate monitoring of the operational status.
What is PoE?
Power over Ethernet (PoE) is a technology that allows powering network devices such as VoIP phones, wireless access points, and IP cameras through the Ethernet cable, eliminating the need for additional power outlets. This technology simplifies the installation of network devices and reduces costs associated with electrical infrastructure.
| General Data |
|---|
| Total Ports |
12 |
| PoE+ Ports |
8 ports 10/100/1000 Base-Tx PoE (802.3af/at) |
| Gigabit Ports |
2 ports 10/100/1000 Base-T |
| SFP Ports |
2 fiber optic ports (SFP uplink) |
| Switch Fabric |
24 Gbps |
| Throughput |
17.85 Mpps |
| MAC Address |
4K |
| Buffer |
2M SRAM |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PSE Type |
End-Span |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Output Power |
52V DC / Max. 30W per port |
| PoE Power Budget |
120W |
| Supported PoE Classes |
Class 2: 8 ports @ 6.5W - Class 3: 8 ports @ 12.9W - Class 4: 4 ports @ 25.5W |
| Maximum PoE Distance |
250 m |
| Network Standards |
IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3x Flow Control, IEEE802.3af/at PoE, IEEE802.3az EEE |
| LED Indicators |
Power, Link/Act, PoE-Max, SFP |
| Power Supply |
AC 100-240V |
| Dimensions (LxWxH) |
290mm x 200mm x 44mm |
| Operating Temperature |
-10°C ~ +45°C |
| Humidity |
10% - 90% non-condensing |
| Certifications |
CE, FCC Part 15, RoHS, Reach, WEEE |
