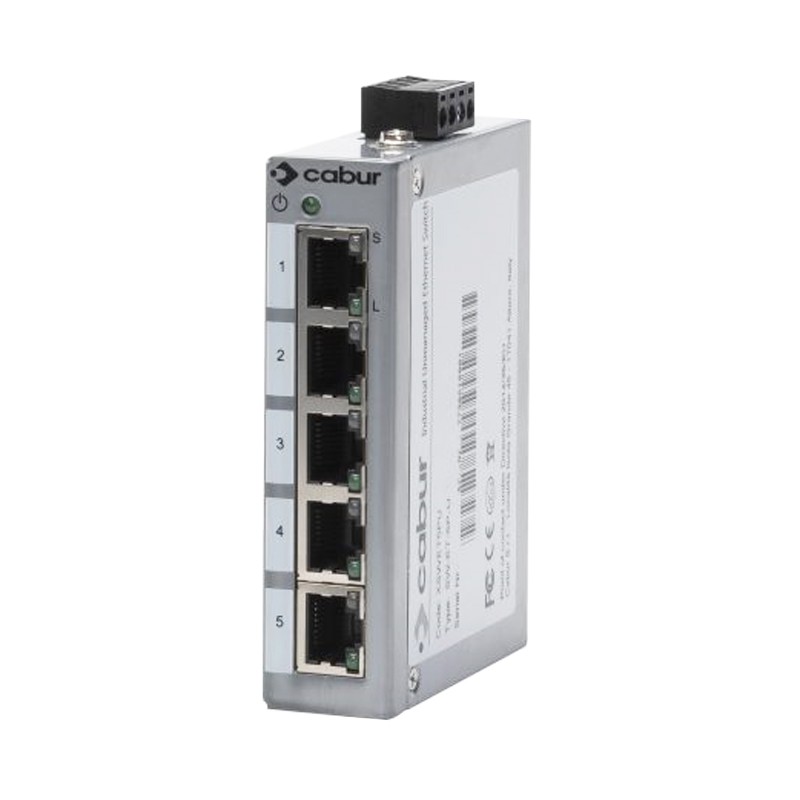

XSWET-5PU Cabur SWET-5PU Ethernet 5 Port Switch
CBR XSWET5PU
8017963199551
Cabur SWET-5PU Ethernet 5 Port Switch Designed to meet Level 3 (Heavy) industrial environments, DIN rail mountable.
€194.83
Items Available: 5
: 3
Features:
- IEEE802.3, 802.3u, 802.3x standards
- Processing Stores and forwards with full duplex IEEE802.3x, non-blocking flow control
- Protocols IEEE802.3x flow control, back pressure flow control
- MAC table size 2K
- RJ45 ports Auto-negotiation rate 10/100BaseT(X), Full/Half duplex mode and Auto MDI/MDI-X connection
- Power LED indicators, (Link/Speed/Activity for each port)
- Supply voltage 12-24 Vac/dc (12...36 Vdc / (1024 Vac)
- Absorbed current 170 mA
- Operating temperature range -10 to 60 °C
- Standards / approvals FCC Part15, CISPR (EN55022) Class A
- EMC standards EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-6-2
- Overvoltage category / pollution degree IP30
- Type of connectors 1.5 mm² (screw type)
- Housing material Metal housing
- Dimensions (WxHxD) 25×100×75 mm
- About rail mounting, side by side.
There are no reviews
Data sheet
- Type: Network Switch
- Doors: Five
