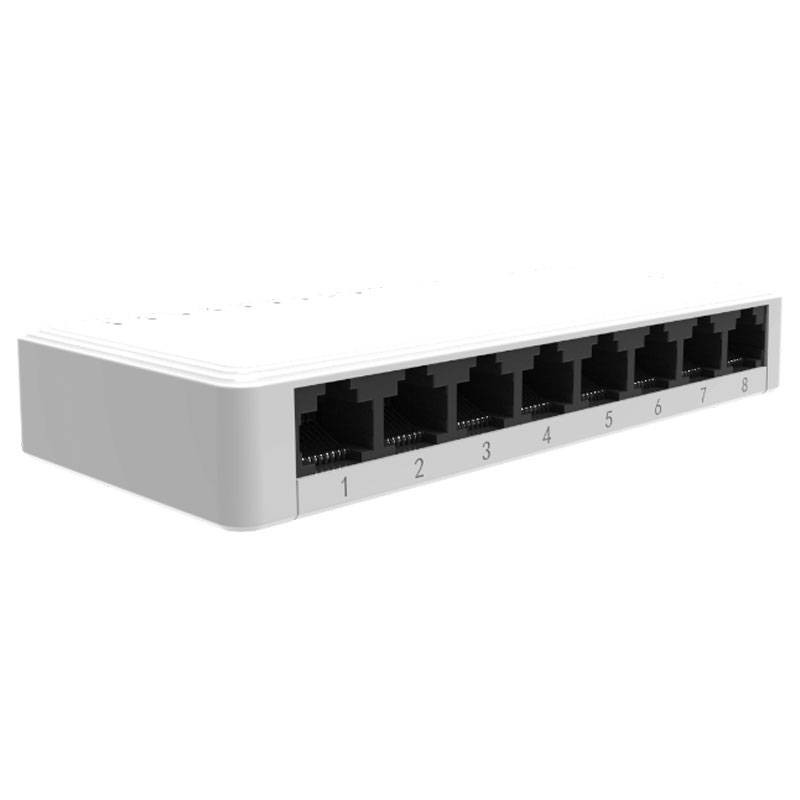

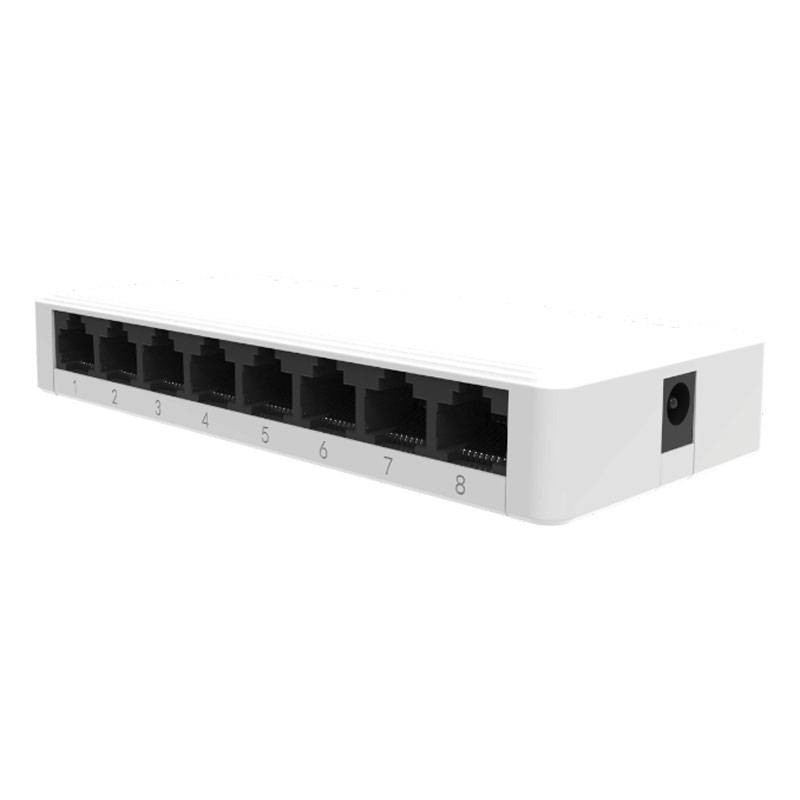

Fracarro GES08 Gigabit Switch: simple and reliable network expansion
The Fracarro GES08 switch is the ideal solution when the router is no longer enough and more LAN ports are needed for wired devices. It is perfect for connecting PCs, smart TVs, consoles, NAS, decoders, network printers, access points, or NVRs, improving stability and speed compared to Wi-Fi, especially in environments with many simultaneous connections. Being unmanaged, it requires no configurations: you connect it to the power supply and a network cable from the router and immediately start distributing the connection.
Eight 10/100/1000 Mbps ports: real performance for streaming, work, and backup
The 8 Gigabit ports allow you to fully exploit modern networks, ensuring faster transfers and lower latency. The bandwidth up to 1 Gbit/s per port is ideal for 4K streaming, smart working, video conferencing, and transfers to NAS or servers. In full duplex (up to 2 Gbit/s), devices can send and receive data simultaneously, making the LAN smoother even when multiple users are using the network at the same time.
Auto MDI/MDIX: true plug & play, no worries about cabling
The automatic MDI/MDIX technology eliminates the need to distinguish between straight or crossover cables: the switch recognizes and adapts the connection autonomously. This makes installation quick and error-proof, particularly useful in home environments or small offices where network expansion often occurs progressively.
Green Mode: up to 85% consumption reduction
With Green Mode, the GES08 optimizes energy consumption based on the state of the ports and traffic, achieving up to 85% savings compared to non-optimized devices. It is a practical advantage for a switch that remains on 24/7 near modems, routers, or in a small home rack.

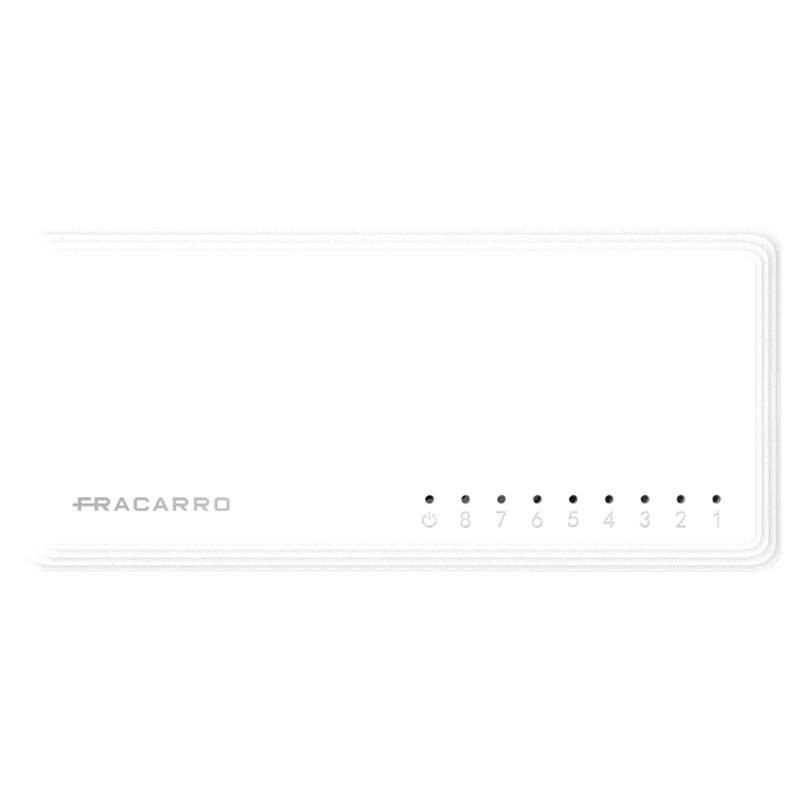

Compact and elegant design: suitable for visible installations
In addition to performance, Fracarro has focused on aesthetics: the compact and elegant design makes it suitable for visible installations (desk, TV cabinet, open space offices), keeping order without necessarily having to hide the device.
| FEATURES |
|---|
| LAN Inputs |
8 × 10/100/1000 Mbps auto-negotiable |
| Forwarding rate |
11 Mpps (64 bytes) |
| Forwarding mode |
Store and Forward |
| MAC address table |
2000 |
| MTBF |
≥ 100,000 h |
| POWER SUPPLY AND CONSUMPTION |
|---|
| Power supply voltage |
5 Vdc / 1 A |
| Consumption |
< 5 W |
| ENVIRONMENTAL CONDITIONS |
|---|
| Operating temperature |
from 0 to +40 °C |
| Relative humidity |
10–90% (non-condensing) |
| APPLICATIONS AND FUNCTIONALITIES |
|---|
| Maximum throughput |
16 Gbps |
| Speed per port |
2 Gbps/port (full duplex) |
| Mounting |
Supports wall mounting |
| Auto MDI/MDIX |
Yes |
| Green Mode |
Green Mode |
