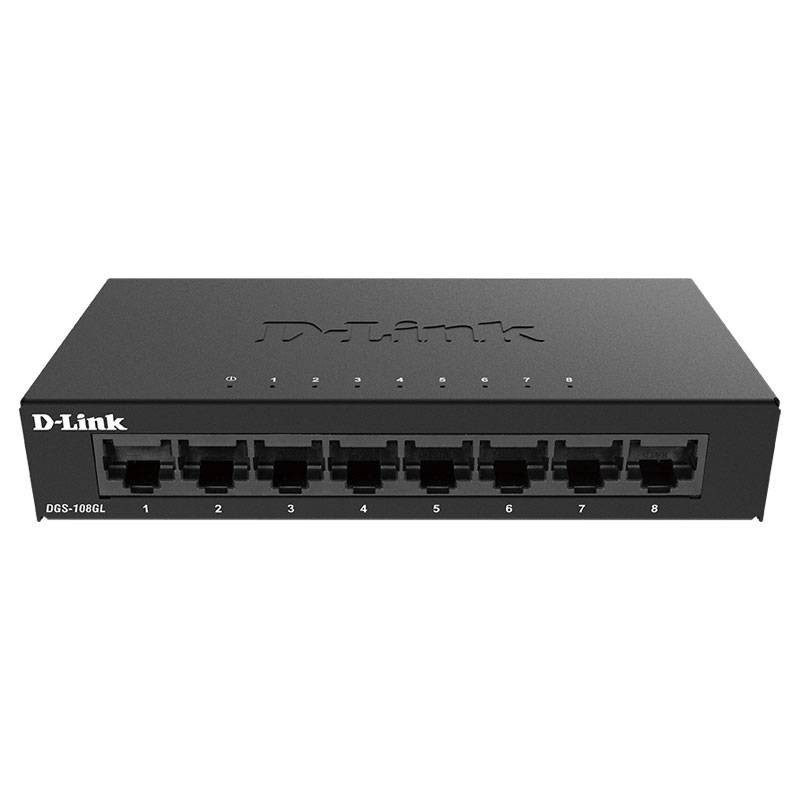

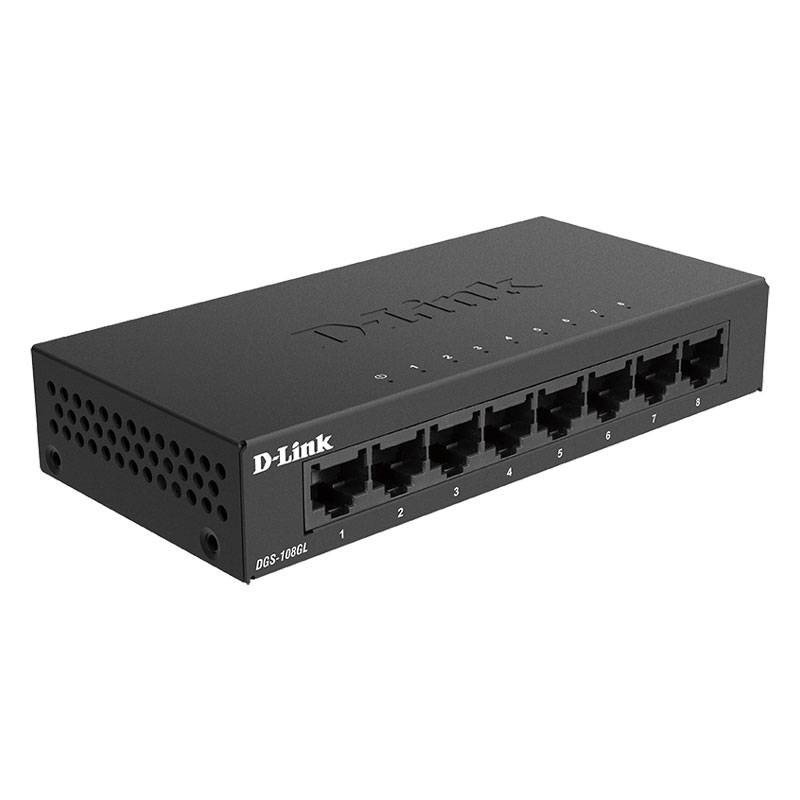

The DGS-108GL is a plug-and-play device that requires no advanced technical configuration. You can connect multiple computers in minutes and begin sharing an Internet connection, files, music and video across your home network or small office.
With Gigabit transfer speeds on each port, you can quickly transfer files between computers and connected devices. The 802.1p Quality of Service (QoS)-enabled switch, which automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enables unbuffered video streaming as well as smooth video and voice conferencing.
The DGS-108GL features a fanless design for quiet operation, reduced power consumption and increased reliability by eliminating a common point of failure. The rugged metal housing ensures the product withstands wider operating temperatures, helping to dissipate heat and reduce stress on internal components.
Thanks to the compact metal housing and fanless design, switches can be placed virtually anywhere and operate quietly. The DGS-108GL is designed with energy efficiency in mind. The switches automatically reduce power to idle or unconnected ports and support the IEEE 802.3az Energy Efficiency Ethernet standard.
Benefits:
- High-speed connectivity
- 8 Gigabit Ethernet LAN ports for high-speed wired connections
- Compact design
- Robust, compact metal housing is designed for durability Energy efficient and environmentally friendly
- Reduces power to one port if no connection is detected there
- Energy-efficient design reduces heat generated by allowing the switch to operate quietly
- Supports the IEEE 802.3az Energy-Efficient Ethernet (EEE) standard
- Ease of installation
- Plug-and-play installation
Features:
- Device interfaces: 8 LAN 10/100/1000 Mbps ports
- Switching Capability: 16 Gbps Switch Fabric
- Transmission Method: Store-and-forward
- MAC address table size: 4,000
- Packet filtering/forwarding rates: Ethernet: 14,880 pps per port - Fast Ethernet 148,800 pps per port - Gigabit Ethernet:1,488,000 pps per port
- LED indicators: Per port: Link/Activity - Per device: Power
- Dimensions: 140x67x26 mm

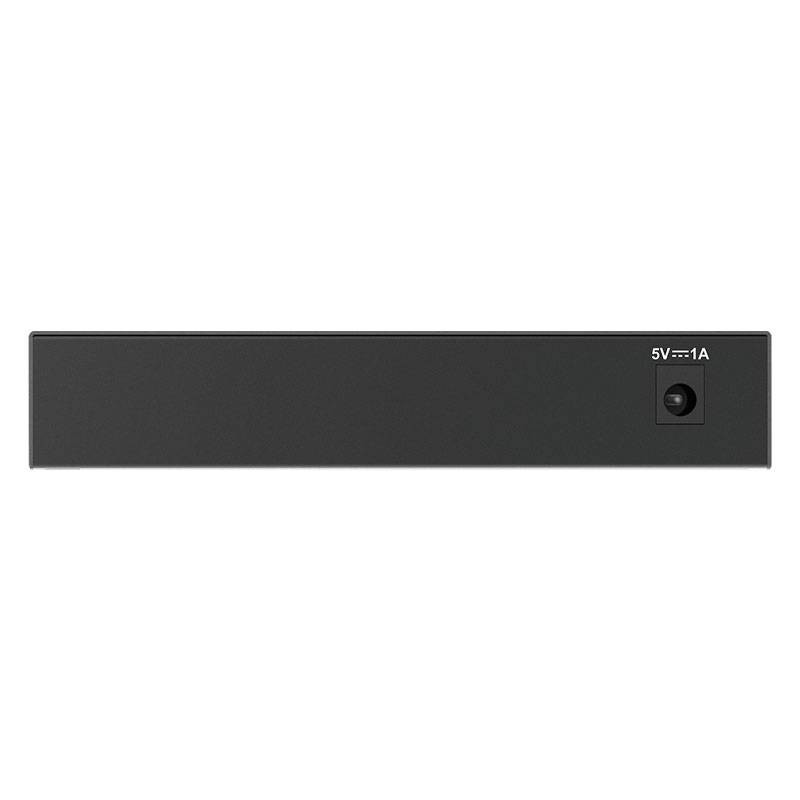

- Power Supply: 5V/1 A DC
- Power Consumption: Maximum 4.31 watts
- Temperature Operating: 0/+40 degrees
- Storage: -10/+70 degrees
- Humidity: Operating: 10% to 90% non-condensing - Storage: 5% to 95% non-condensing
- Maximum heat dissipation: 14.70 BTU/h
