Tenda Desktop Switch 8-port 10/100/1000 Mbps Gigabit TEG1008M
67V TEG1008M
6932849436228
Tenda Gigabit Desktop Switch is designed to offer fast and stable Ethernet connections, with 8 Gigabit ports (10/100/1000 Mbps) supporting a total bandwidth of up to 16Gbps. This makes it ideal for high-demand environments such as offices, small businesses and IP surveillance systems, where fast and continuous data transmission is required, with the following features:
-
Number of ports: 8, 10/100/1000 Mbps (Auto MDI/MDIX)
-
Transmission speed: Up to 16Gbps
-
Low power consumption: <5W
-
Protection: ESD up to ±8kV (Air discharge), ±6kV (Contact discharge)
-
Forwarding Mode: Store-and-Forward
-
Easy installation: Plug-and-play with no configuration required
-
Supports mounting: Desktop and wall-mounted
€27.16
Items Available: 9
: 9
Easy-to-install, secure and reliable Tenda switches over time
Simple and versatile installation
With plug-and-play technology, no complex configuration is required. The Tenda Switch is ready for use as soon as it is plugged in, supporting both desktop and wall mounting. Its compact construction and sleek gold-colored design will fit into any environment.
Advanced safety and security
With advanced ESD (electrostatic discharge) protection, the device is designed to withstand surges and current fluctuations, providing superior protection for your facility. Store-and-Forward forwarding mode ensures that packets are sent only when they are complete, minimizing bottlenecks in the network.
Reliability and durability
The switch has a high MAC addressing capacity, capable of handling up to 4,096 MAC addresses. In addition, the device is designed to operate in environments with temperatures between 0°C and 45°C, maintaining stable performance even under heavy use.
Technical Specifications Tenda Gigabit Switch
Hardware
| Feature | Value |
|---|---|
| Network Standards. | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| LED Indicator | 1 Power, 8 Link/Act |

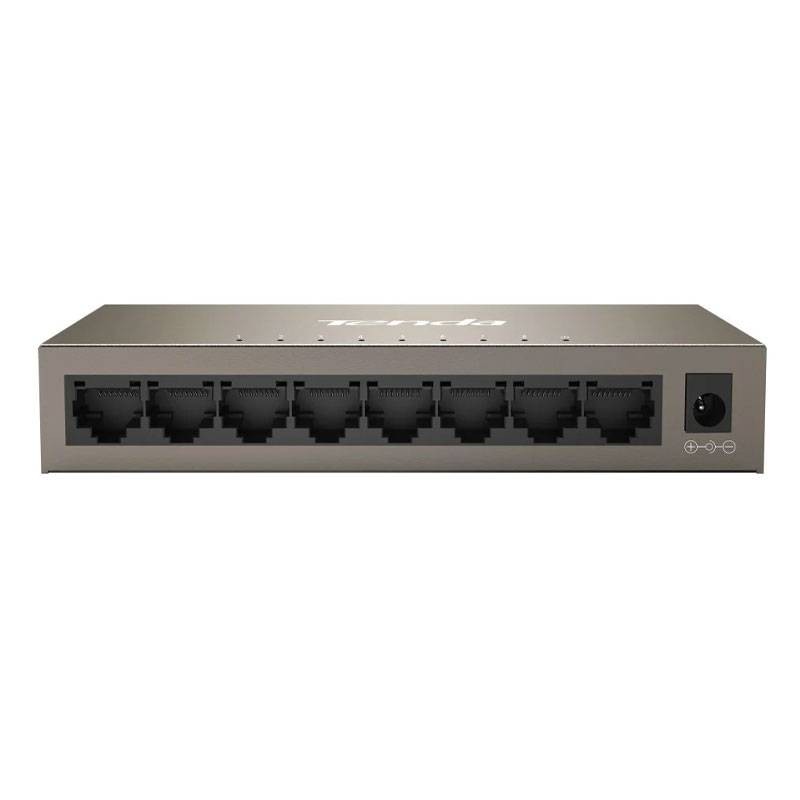

| Interfaces | 8 10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| Media transmission | CAT5/5e UTP or higher |
| Material | Metal |
| Protection Level | ESD, Air discharge: ±8kV, Contact discharge: ±6kV |
| Forwarding mode | Store-and-forward |
| Switch scope | 16Gbps |
| Packet forwarding speed | 12.00 Mpps |
| Buffer | 192KB |
| MAC address table | 4K |
| Power | Input: AC: 190-240V; 50/60Hz DC: 9-12V |
| Power Consumption | Max: < 5W |
Mounting
| Feature | Value |
|---|---|
| Mounting | Desktop, Wall |
Software
| Feature | Value |
|---|---|
| Protocols | CDMA/CD |
| MAC address learning | Auto-Learning and Auto-Aging |
| Functions | Plug-and-Play |
Dimensions
| Feature | Value |
|---|---|
| Width | 140 mm |
| Depth | 66.5 mm |
| Height | 25.3 mm |
Environmental Characteristics
| Feature | Value |
|---|---|
| Operating temperature | 0/+40 degrees |
| Storage temperature | -40/+70 degrees |
| Operating humidity | 10/90% RH, non-condensing |
| Storage humidity | 5/90% RH, non-condensing |
Certifications
| Feature | Value |
|---|---|
| Certifications | CE, FCC, RoHS |
Package Contents
| Item | Quantity |
|---|---|
| Desktop Ethernet Switch 8 ports 10/100/1000M | 1x |
| Power supply | 1x |
| Quick installation guide | 1x |
