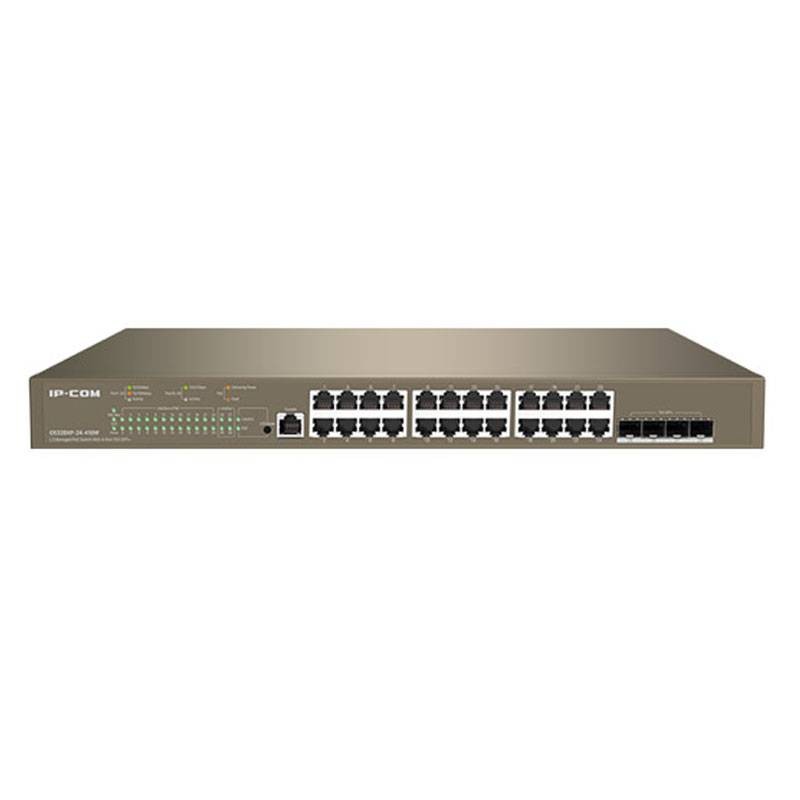

L3 IP-Com PoE 24-port + 4 SFP+ 10/100/1000 Mbps Managed Switch G5328XP-24-410W
67V G5328XP-24-410W
6932392835394
Layer 3 Cloud IP-Com Managed PoE Switch, designed for advanced enterprise networks, wireless coverage in hotels, schools and supermarkets, offers advanced management, robust security and PoE power for network devices, with the following features:
-
24 10/100/1000 Mbps Gigabit PoE ports
-
4 SFP+ 10G Base-X ports
-
PoE Power: Total 370W - Per port up to 30W
-
Switching capacity: 128 Gbps
-
Buffer: 12 Mb
-
MAC Table: 16K with automatic learning
-
ProFi Cloud Management: Remote configuration and monitoring via app and web interface
-
Advanced Security: IP/MAC/ARP filtering, DoS defense, ACL, SSH and HTTPS for a secure network
€512.02
Items Available: 1
L3 IP-Com PoE 24-port + 4 SFP+ 10/100/1000 Mbps Managed Switch
Layer-3 cloud managed switch with 10G uplink ports designed by IP-COM for SMB office networks and wireless coverage in hotels, schools and supermarkets. The switch provides 24 10/100/1000 Base-T Ethernet ports and 4 SFP+ 10G Base-X ports and offers cloud management, remote app management, and visualized local management, resulting in more efficient network maintenance, lower after-sales costs, and easier anytime, anywhere configuration.
High performance for advanced networks
The G5328XP-24-410W provides excellent performance with 128 Gbps switching capacity and 12 Mb buffer, ideal for high-density environments. The 4 10G uplink ports offer perfect scalability for large networks.
Versatile PoE Power Supply
With a total power rating of 370W, the switch powers a wide range of PoE devices such as IP cameras, wireless access points and VoIP phones, simplifying infrastructure and reducing costs.
Hardware Specifications
| Feature | Detail |
|---|---|
| LED Indicators | One Link/Act or PoE LED indicator for each port One Link/Act mode conversion LED indicator for each device One PoE mode conversion LED indicator for each device One PoE Max LED indicator for each device One power LED indicator for each device One SYS LED indicator for each device |
| Fixed ports | 24 × 10/100/1000 Ethernet Base-T ports 4 × 10G Base-X SFP+ ports 1 × console port |
| Lightning protection | 6 kV |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 95.2 Mpps |
| Switching buffer | 12 Mbit |
| MAC address table | 16 thousand |
| Input voltage | 100 - 240 V AC 50/60 Hz |
| Dimensions | 440x284x44 mm (W-D-A) |
| Total switch consumption | <410 W |
| Maximum PoE output power | 370 W |
| Operating temperature | 0/+45 degrees |
| Operating humidity | 10/90% RH, non-condensing |
| Storage temperature | -40/+70 degrees |
| Storage humidity | 5/90% RH, non-condensing |
Software specifications
| Feature | Detail |
|---|---|
| Security Features. | ARP receive limit, Unknown MAC address rejection DoS attack defense 802.1x security authentication RADIUS authentication HTTPS secure access SSHv2 secure access |
| Cloud Management. | Supports remote configuration deployment via the ProFi Cloud UI web platform Supports ProFi app management Supports log reporting and error detection Supports remote maintenance: reboot, backup, and update |
| Local Visualization | Supports discovery and detection of network devices such as routers, switches, and APs via LLDP protocol Supports discovery and detection of cameras via ONVIF protocol Supports automatic topology generation Supports local and main view Supports online/offline client detection Supports remote camera reboot Supports loop alerting Supports custom device type and device name |
| Upload and update | Supports http update Supports configuration import and export |
| Management and maintenance | Support Telnet configuration Support SNMP V1/V2/V3 Support RMON Support LLDP-MED Support web management and maintenance Support registry Support registry classification Support NTP, Support Ping test and Tracert Support memory and CPU monitoring |
There are no reviews
Data sheet
- Type: Network Switch
- Doors: 24+4
