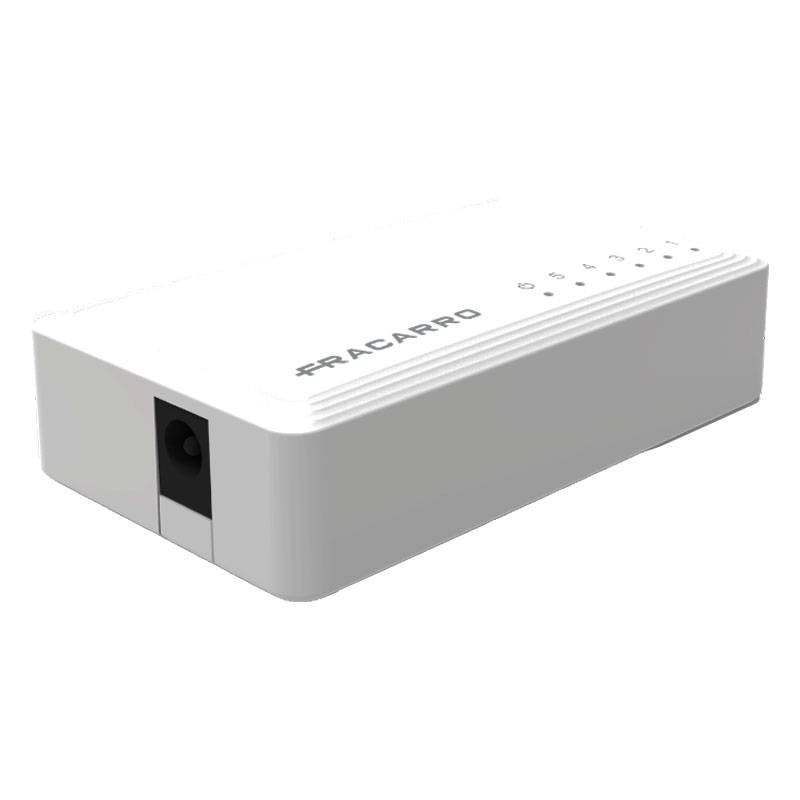

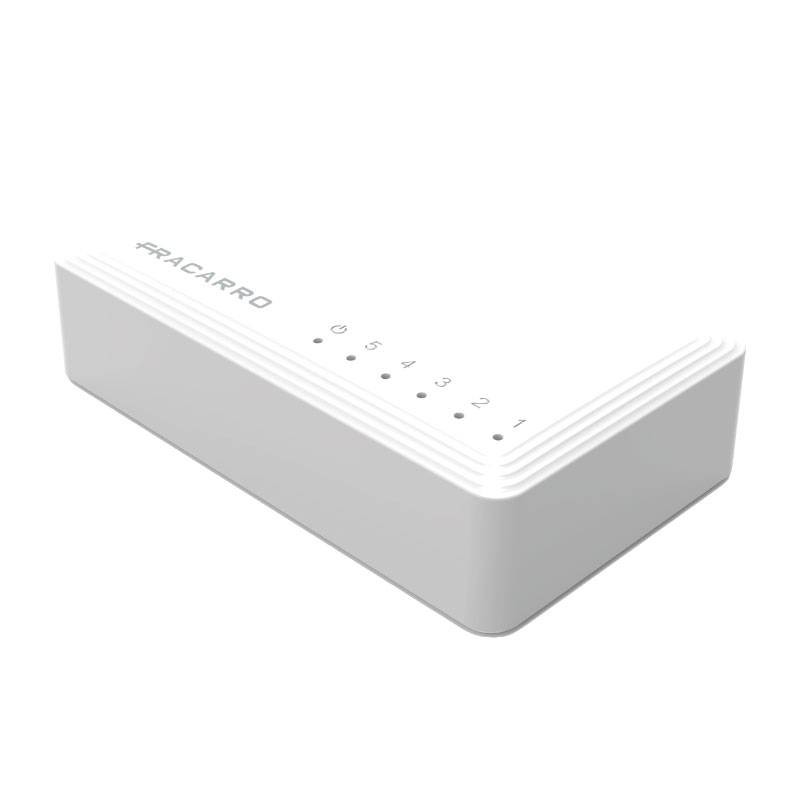

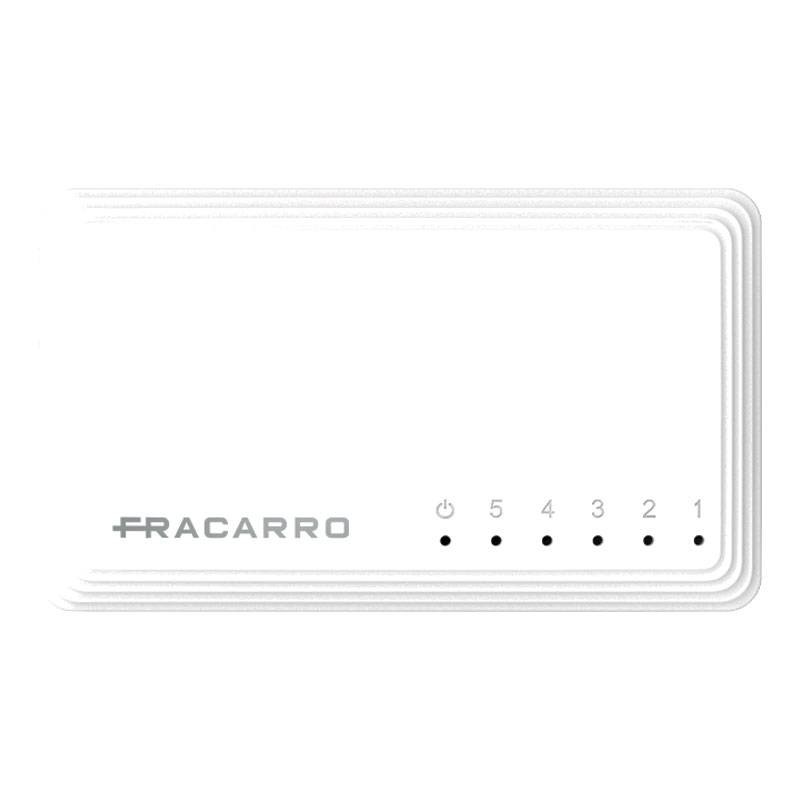

Fracarro GES05 Gigabit Switch: more ports, more speed, zero complications
The Fracarro GES05 Ethernet switch is the simplest solution to increase the number of available network sockets without changing the router or system. If you have a router with few LAN ports or want to connect more wired devices (PC, Smart TV, console, NAS, decoder, NVR/IP cameras, access point), the GES05 allows you to create a stable and fast network in just a few minutes. Being unmanaged, it requires no settings: it is perfect for those who want immediate reliability without having to configure VLANs or advanced functions.

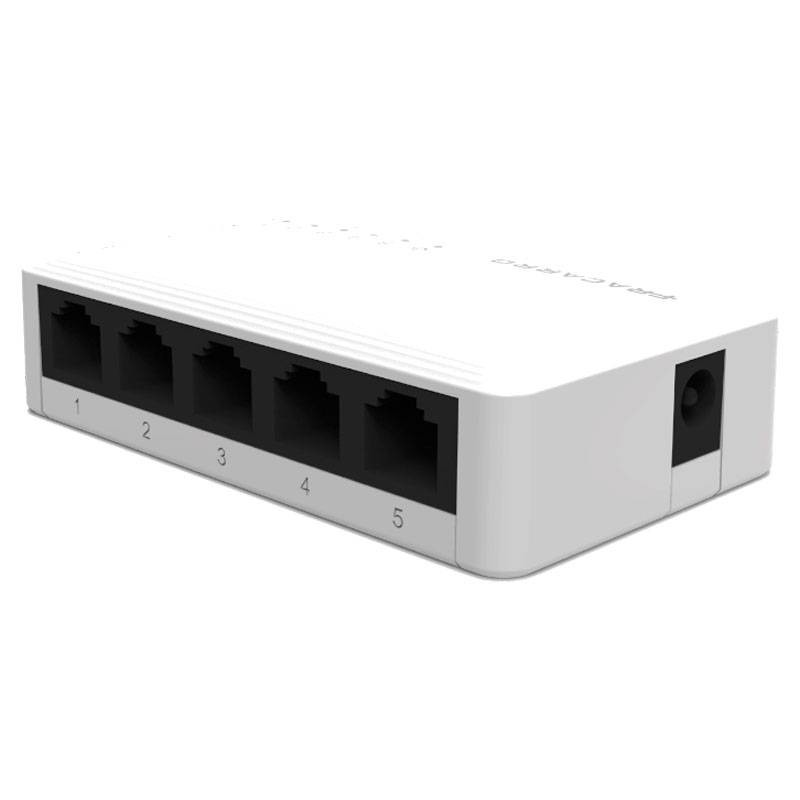

5 ports 10/100/1000 Mbps: real performance for streaming, backup and work
The 5 Gigabit ports ensure high bandwidth compared to old 10/100 switches, significantly improving the experience on modern applications: 4K streaming, file transfers on NAS, backups, video conferencing and remote work. The ability to handle up to 1 Gbit/s per port and 2 Gbit/s in full duplex means that each device can transmit and receive simultaneously with smoother performance, reducing bottlenecks in the local network.
Auto MDI/MDIX: simpler cabling and fewer errors
The automatic MDI/MDIX function eliminates doubts about the type of cable or the need for crossover cables: the switch automatically recognizes connections and adapts the port. This makes installation truly plug & play, useful both at home and in small offices where devices are added progressively.
Green Mode: energy saving without giving up the wired network
The Green Mode is designed to reduce consumption when the switch is not used to its maximum, achieving up to 85% energy savings depending on usage and connection conditions. It is a concrete advantage for devices that remain on for many hours a day, such as those in the office, in home racks or near modem/routers.
Where to install it: Home LANs, small offices, TV and surveillance systems
The compact format makes it easy to place on a desk, near the router or in a technical cabinet. It is particularly suitable for mixed systems (TV + data) and configurations where stability is needed: wired connections for smart home, streaming without buffering and surveillance networks where Ethernet cabling offers greater reliability than Wi-Fi.
| FEATURES |
|---|
| LAN inputs |
5 × 10/100/1000 Mbps auto-negotiable |
| Forwarding rate |
7 Mpps (64 byte) |
| Forwarding mode |
Store and Forward |
| MAC address table |
2000 |
| MTBF |
≥ 100,000 h |
| POWER SUPPLY AND CONSUMPTION |
|---|
| Power supply voltage |
5 Vdc / 1 A |
| Consumption |
< 5 W |
| ENVIRONMENTAL CONDITIONS |
|---|
| Working temperature |
from 0 to +40 °C |
| Relative humidity |
10–90% (non-condensing) |
| APPLICATIONS AND FUNCTIONALITIES |
|---|
| Maximum throughput |
10 Gbps |
| Speed per port |
2 Gbps/port (full duplex) |
| Mounting |
Supports wall mounting |
| Auto MDI/MDIX |
Yes |
| Green Mode |
Green Mode |
