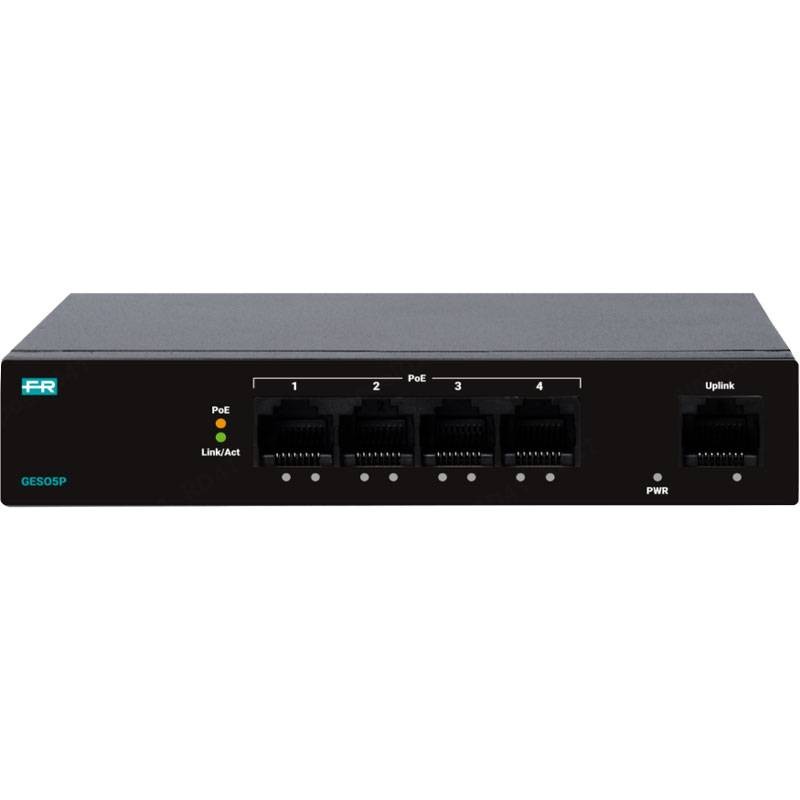

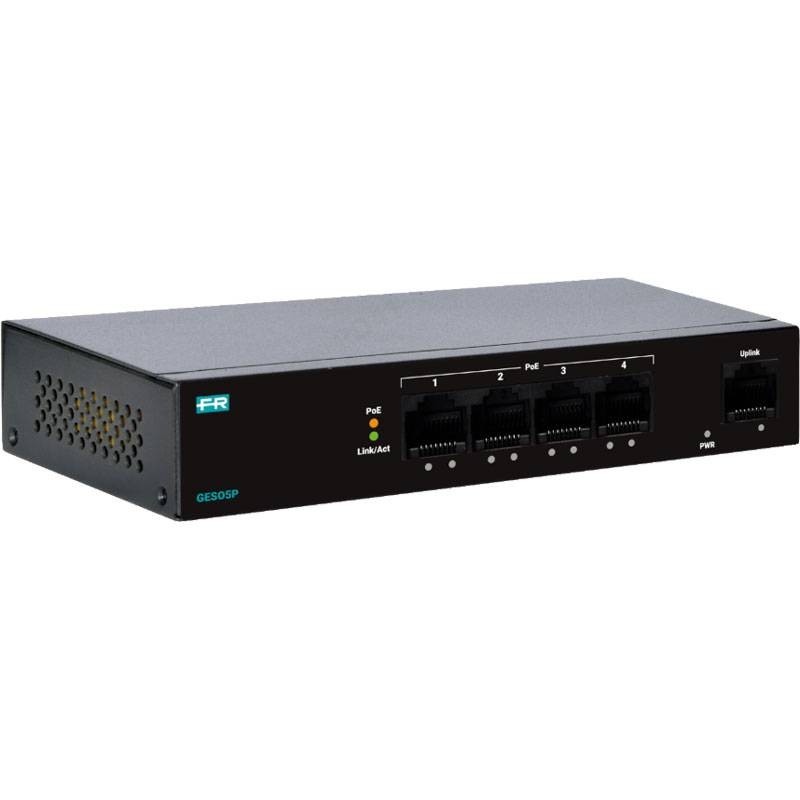

Switch PoE+ Fracarro GES05P: network and power in a single cable
The Fracarro GES05P Ethernet switch is designed for installations where, in addition to data, power is also needed for field devices. With PoE+ you can deliver power and connection through a single RJ45 cable, reducing installation times, ducting, and scattered power supplies. It is the ideal solution for video surveillance projects, IP intercoms, professional Wi-Fi, and VoIP telephony, especially when the points to be powered are far from power outlets or in inconvenient positions.
Being unmanaged, it is perfect for installers and users who want a practical product: connect it to the router and start working immediately.
4 PoE+ ports + Gigabit uplink: real performance for cameras and access points
The 4 PoE+ Gigabit ports handle modern high-traffic devices (high-resolution IP cameras, dual-band access points, video intercoms, access control terminals) without the limitation of old 10/100 switches. The Gigabit Uplink port is dedicated to connection to the router/NVR or main switch, keeping the backbone freer and faster, especially when multiple devices transmit simultaneously.
The ability to reach up to 1 Gbit/s per port and 2 Gbit/s in full duplex helps maintain stable video streams and smooth connections even under heavy use.
40W PoE budget: optimized shared power
The 40W PoE budget represents the total power available on the PoE ports. It is a key figure for sizing the system: it allows powering multiple devices simultaneously, distributing power according to needs (e.g., standard cameras, compact access points, or video intercoms). When choosing, it is useful to compare the power consumption of PoE devices to ensure they fit within the overall budget.
PoE Watchdog: designed for 24/7 systems
The Watchdog function is particularly useful in systems that must remain always active, such as video surveillance and access control. It helps keep PoE functions operational in 24/7 runtime mode, reducing downtime and improving service continuity. It is a concrete advantage when remote devices must remain reachable and powered without frequent interventions.
Metal casing and Green Mode: more robustness and less consumption
The high-dissipation metal casing improves thermal management, essential in PoE devices that work many hours and in technical environments. The Green Mode, on the other hand, allows reducing consumption by up to 85% based on load and connection status, useful for containing energy waste on devices that remain always on.
Recommended applications
The GES05P is ideal for:
-
IP PoE/PoE+ cameras and small NVR systems
-
IP video intercoms and internal stations
-
Access Points for stable Wi-Fi coverage
-
VoIP phones and office networks
-
Access control and IP automation devices
| FEATURES |
| LAN inputs |
5 × 10/100/1000 Mbps auto-negotiable |
| Forwarding rate |
7 Mpps (64 byte) |
| Forwarding mode |
Store and Forward |
| MAC address table |
2000 |
| MTBF |
≥ 50,000 h |
| PoE power budget |
40 W |
| POWER SUPPLY AND CONSUMPTION |
| Power supply voltage |
100–240 V AC / 50–60 Hz |
| Consumption |
< 50 W |
| ENVIRONMENTAL CONDITIONS |
| Operating temperature |
from 0 to +40 °C |
| Relative humidity |
10–90% (non-condensing) |
| DIMENSIONS AND WEIGHT |
| Product dimensions |
192 × 165 × 60 mm |
| Gross weight |
0.62 kg |
| APPLICATIONS AND FUNCTIONALITIES |
| Maximum throughput |
10 Gbps |
| Speed per port |
2 Gbps/port (full duplex) |
| PoE+ |
Up to 30 W per port |
| Watch Dog mode |
Yes |
| Auto MDI/MDIX |
Yes |
| Green Mode |
Green Mode |
| Mounting |
Supports wall mounting |
