The devices of the EXT series are centrifugal vacuum cleaners and as such are able to overcome the aeraulic resistance of long ducts. The air sucked in must not be dusty or corrosive.

Features:

• Centrifugal duct fans for outdoor installation
• Suitable for clean air with temperature from -20° to 60°C
• They avoid the installation of traditional and bulky vacuum cleaners inside the rooms, keeping their aesthetics unchanged.
• The outdoor installation solves any problem related to the noise of the vacuum cleaner in the rooms to be ventilated.
• They prevent the return of air when the appliance is switched off, therefore they are particularly suitable in windy areas.
• Ideal also for centralized ventilation of several rooms, thanks to the high performances

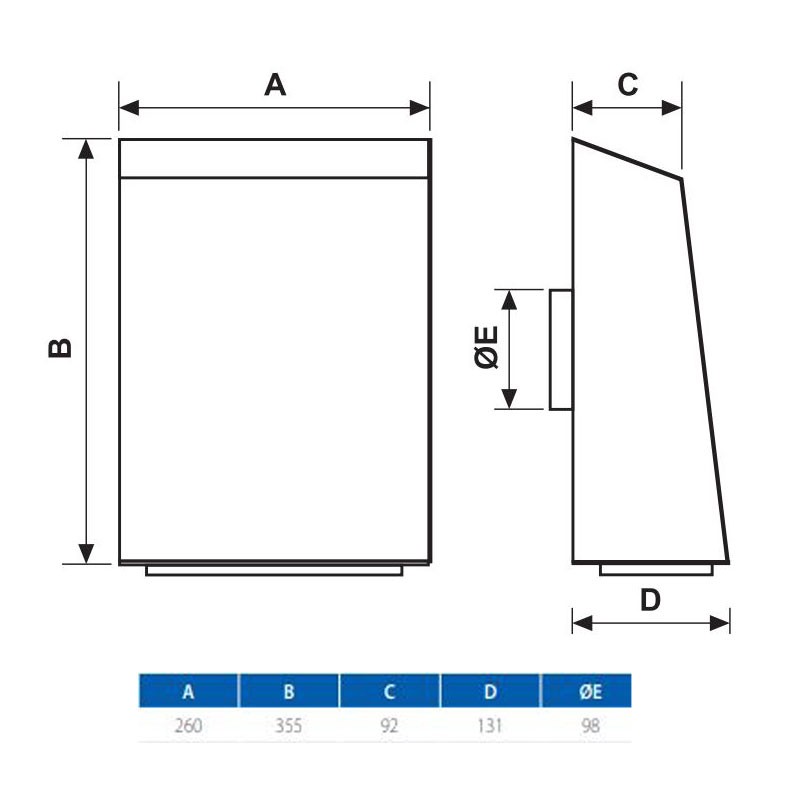

• Particularly small dimensions and overall dimensions
• Quick and easy electrical wiring
• Easy to install and inspect: 2 screws are all it takes to mount / dismantle it
• External protective net with closing flap
• Galvanized sheet metal structure painted with epoxy powders
• Lid in galvanized steel and epoxy paint for high protection against weathering and saline environments
• White paint (RAL 9010)
• Protected against splash water (IPX4)
• Statically and dynamically balanced backwards blade fan according to ISO 1940 standards
• Long Life single-phase (230V-50Hz) induction motor with thermal protection suitable for continuous service
• Complies with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/UE

Technical characteristics:

• Piping diameter 100 mm
• Max. flow rate 217 cubic meters/h
• Pressure Max 268 Pa
• Absorbed current 0.13 A
• Power 28 W
• Speed 1490 RPM/1"
• Sound Pressure (at 3 m) 44 db (A) (Lp(A) at 3 m in free field 230V/50Hz)
• IPX4 degree of protection
• Max temperature 60 C°.
