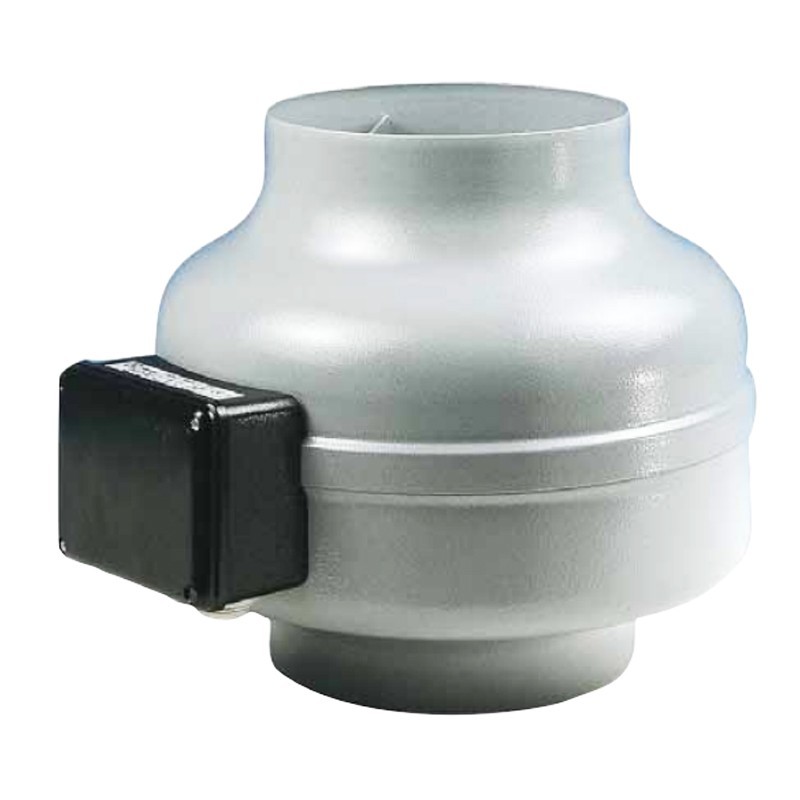

Elicent centrifugal aspirator AXC 100A diameter 98 2AX1122
ELI 2AX1122
8016510038961
Air and odour extractor fan Elicent model AXC 100A in-line centrifugal duct air and odour extractor, complete with brackets, Application in environments such as: public places, offices, gaming rooms, shops, houses, gyms, laboratories, bars, restaurants, canteens, hoods (with filter), etc.
€161.04
Items Available: 9
: 2
Due to its construction and performance characteristics, the AXC series can be used horizontally or vertically at any point in the pipeline. The air sucked in must not be dusty or corrosive.
Features:
- Centrifugal duct fans
- Installation in line with the pipeline
- Brackets and fixing brackets supplied as standard
- Suitable for clean air with max temperature 60°C
- IMQ Certificates
- Protected against splash water (IPX4)
- Reverse paddle fan
- Static and dynamic balancing according to ISO 1940 standards
- Epoxy powder coated steel structure
- Galvanized steel flow rectifiers
- Single-phase motor (230V-50Hz) with long life bearings with thermoprotector
- Ventilation unit suitable for continuous duty
- Compliant with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/UE
Technical specifications:
- Pipe diameter 100 mm
- Max flow rate 237 cubic meters/h
- Pressure Max 279 Pa
- Voltage at 50Hz 230V
- Current consumption 0.13 A
- Power 27 W
- Speed 1990 rpm/1'
- Sound pressure (at 3 m) 30 db (A) ( Lp(A) at 3 m in free field 230V/50Hz)
- Max Temperatures 60 C°
Data sheet
- Diameter: 100
- Type: Centrifugal fans
