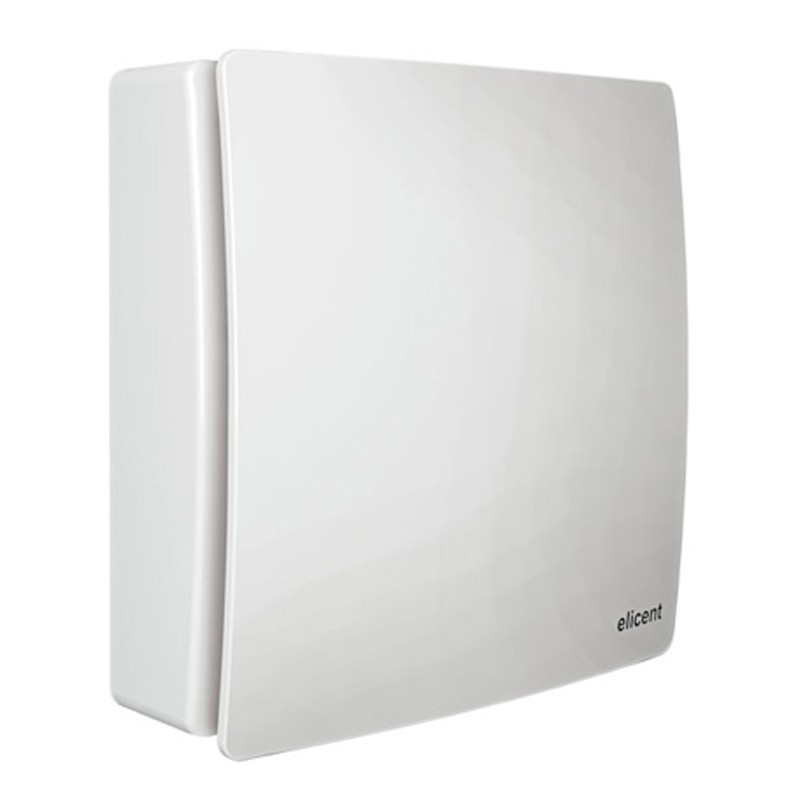

ELPREX is a series of powerful centrifugal extractors with off-centre outlet nozzle of ø 100 mm, suitable for duct ejection (single or multiple ducting) and for continuous or intermittent ventilation. Extremely compact and efficient, they are the ideal solution for all applications requiring high extraction capacity.

Features:

• Innovative design with smooth front and perimeter suction
• Advanced profile designed to improve the fluid dynamic performance of the product
• Equipped with anti-turbulence deflectors (Maico patent) that optimize performance and promote a homogeneous perception of sound frequencies
• Complete with sturdy non-return damper with anti-tilt system that prevents the return of air (this component can be removed in case of installation with external gravity grille)
• 230V-50 Hz induction motor with high magnetic permeability with thermal protection suitable for continuous duty
• Long Life 30,000 hours bearings that ensure durability
• Rear exit nozzle in angular position
• Sliding polypropylene filter, removable without disassembling the front panel and dishwasher safe
• Rear membrane that ensures adaptation to wall imperfections
• High quality antistatic polymer structure
• Protected against splash water (IPX4)
• Adjustable via variable speed drive and controllable (basic versions) via remote sensors Humidostat, PIR, AQS and Timer
• Made of double insulation: no grounding required
• Compliant with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU.

Features:

• Piping diameter 100 mm
• Max. flow rate 221 cubic meters/h
• Pressure Max 202 Pa
• Power 29 W
• Sound Pressure (at 3 meters) 41 db (A)
• IPX4 Degree of Protection
• Activation / switching off via light switch or separate.
