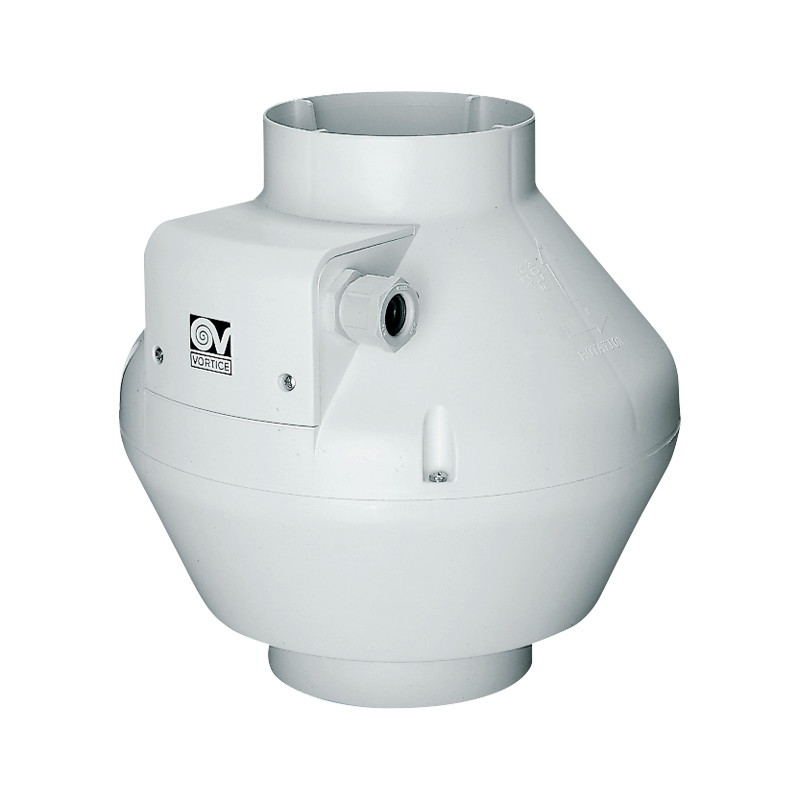

Vortice CA Axial centrifugal fan 150 V0 D 150 mm 3 speeds 0000016028
VOR 0000016028
8010300160283
Vortice CA 150 V0 D axial centrifugal exhaust fan, 3-speed operation. Ideal for industrial and civil environments with high demand for flow rate and safety, with the following features:
-
Nominal diameter: 150 mm
-
Motor: AC thermally protected with ball bearings
-
Compatible with remote sensors: Temperature, humidity, smoke, presence
-
Installation: Wall with galvanized brackets
-
Degree of protection: IPX4
-
Maximum air flow rate: 400 m³/h
-
Low noise: Max 64.5 dB(A) at 3 meters
€212.78
Items Available: 13
: 3
Frequently bought together
Vortice powerful ventilation fan with 3 selectable speeds
The CA 150 V0 D is designed to offer high ventilation performance with an air flow rate of up to 400 m³/h at maximum speed. The fan is equipped with a centrifugal impeller with backward blades, a guarantee of efficiency and quiet operation.
Durable and safe construction
Made of self-extinguishing V0 thermoplastic resin, this vacuum cleaner ensures maximum safety in case of overheating or fire. Compact and lightweight 2.6 kg construction allows easy wall installation via galvanized steel brackets.
Compatible with smart environmental sensors
The Vortice CA 150 V0 D is prepared for use with remote environmental sensors, which automate its operation based on temperature, humidity, smoke and presence. Ideal for public spaces, restrooms, industrial environments.
Recommended applications
-
Industrial and technical environments
-
Public restrooms
-
Laboratories and technical rooms
-
Warehouses and garages
-
Professional kitchens and canteens
-
Environments with the presence of moisture, vapors, or smoke
Technical Specifications Vortice vacuum cleaner
| Parameter | Value |
|---|---|
| Voltage | 220-240 V |
| Frequency | 50/60 Hz |
| Max current consumption | 0,22 A |
| Max power consumption | 43 W |
| Duct diameter | 150 mm |
| Exhaust Ø | 147 mm |
| Max flow rate | 400 m³/h (111 l/s) |
| Flow rate min | 160 m³/h (44 l/s) |
| Max pressure | 313 Pa |
| Max sound level (3 m) | 64.5 dB(A) |
| Insulation class | II |
| Degree of protection | IPX4 |
| Max. operating temperature | 50 °C |
| Weight | 2.6 kg |
| RPM | 2200 max / 890 min |
Data sheet
- Diameter: 150
- Type: Centrifugal fans
