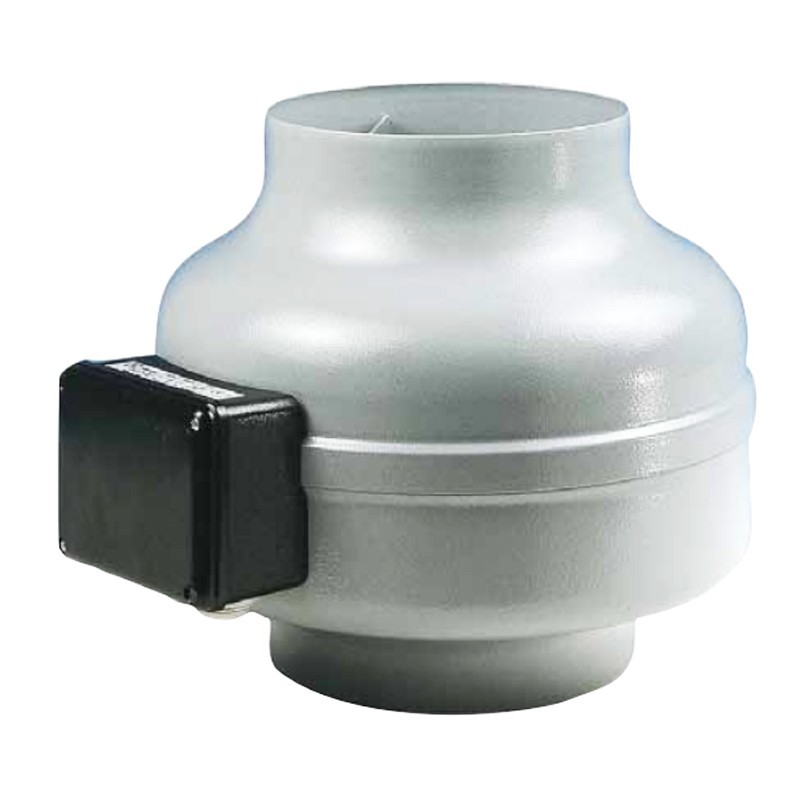

Elicent centrifugal aspirator 230v 1439m3/h diameter 314 2AX3105
ELI 2AX3105
8016510039067
Elicent AXC 315A series centrifugal duct air and odour extractor fan, complete with brackets, for environments such as: public places, offices, gaming rooms, shops, homes, gyms, changing rooms, laboratories, bars, restaurants, canteens, hoods (with filter), etc..
Elicent centrifugal aspirator 230v 1439m3/h diameter 314 2AX3105
€388.07
€388.07
Tax included
Tax included
Pay in installments with Klarna
Items Available: 2
Due to its construction and performance characteristics, the AXC series can be used horizontally or vertically at any point in the pipeline. The air sucked in must not be dusty or corrosive.
Features:
- Centrifugal duct aspirator
- Installation in line with the pipeline
- Brackets and fixing brackets supplied as standard
- Suitable for clean air with max temperature 60°C
- IMQ Certificates
- Protected against splash water (IPX4)
- Reverse paddle fan
- Static and dynamic balancing according to ISO 1940 standards
- Epoxy powder coated steel structure
- Galvanized steel flow rectifiers
- Single-phase motor (230V-50Hz) with long life bearings with thermoprotector
- Ventilation unit suitable for continuous duty
- Compliant with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/UE
Technical characteristics:
- Tubing 315 mm diameter
- Max flow rate 1439 cubic meters/h
- Pressure Max 742 Pa
- Voltage at 50hz 230V
- Current consumption 1.14 A
- Power 260W
- Speed Revolutions/1" 2645
- Sound pressure (at 3 m) 43 db (A) ( Lp(A) at 3 m in free field 230V/50Hz)
- IPX4 degree of protection
- T Max C° 60
Data sheet
- Diameter:
- 314
- Type:
- Centrifugal fans
