Vortice Wall-mounted Centrifugal Vacuum cleaner MEX 100/4
VOR 0000011313
8010300113135

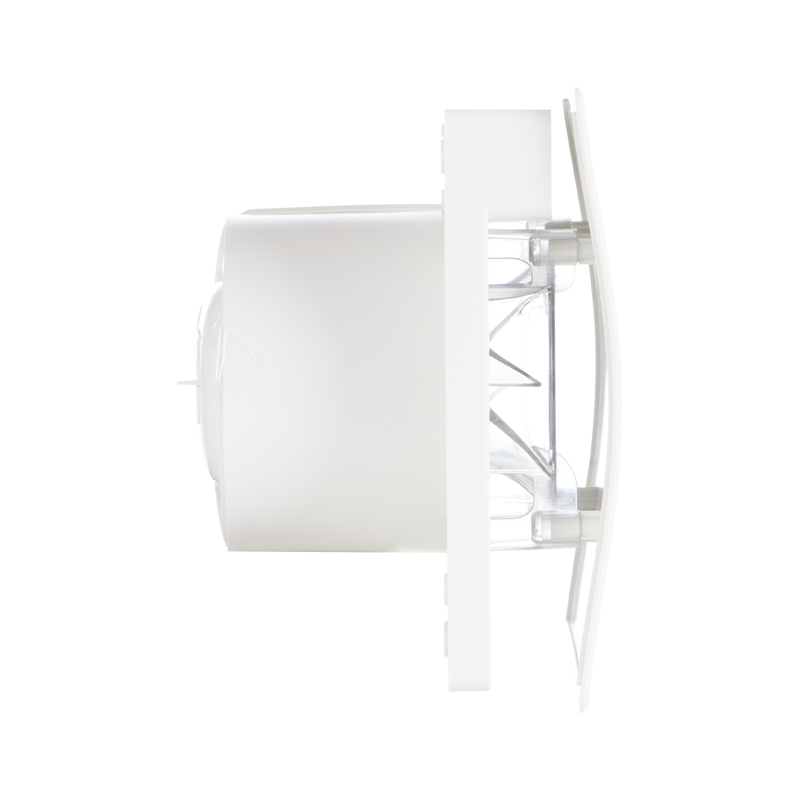

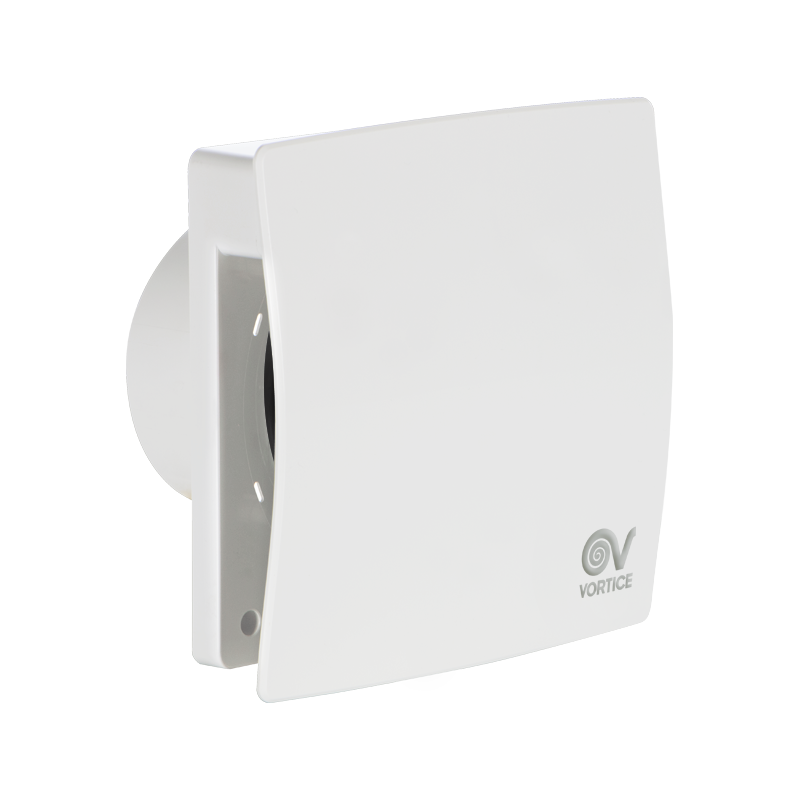

Wall mounted spiral Vortice vacuum cleaner model MEX 100/4" LL 1S wall application, White colour, Rated diameter 100 mm.
Vortice Wall-mounted Centrifugal Vacuum cleaner MEX 100/4
€70.02
€70.02
Tax included
Tax included
Pay in installments with Klarna
Items Available: 18
Features:
- Impact- and age-resistant plastic resin construction due to sun exposure ("UV resistant")
- Rated diameter 100 mm
- AC motor with shaft mounted on ball bearing support, directly coupled to a plastic helical-centrifugal impeller
- Maximum flow rate 90 m3/h
- Equipped with butterfly check valve as standard to prevent unintended air return when switched off
- IP45 degree of protection, which guarantees the possibility of installation in Zone 1 of the bathroom according to the international standard IEC 60364-7
- IMQ certified security.
Technical specifications:
- Max. current consumption at max. speed (A) 0.052
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP 45 degree of protection
- Insulation Class II
- Weight (Kg) 0.6
- Max. power consumption at max. speed 9W
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 230
- Max flow rate at max speed (l/s) 25
- Max. flow rate at max. speed (m³/h) 90
- Sound power Lw [dB(A)] - max vel 47.4
- Max pressure at max speed (mmH2O) 4
- Max pressure at max speed (Pa) 39,23
- Sound pressure Lp in free field [dB(A)] 3 m max speed 26,9
There are no reviews
Data sheet
- Diameter:
- 100
- Type:
- Centrifugal fans
