Vortice Wall mounted helicycentrifuge Vacuum cleaner MEX 100/4 0000011314
VOR 0000011314
8010300113142

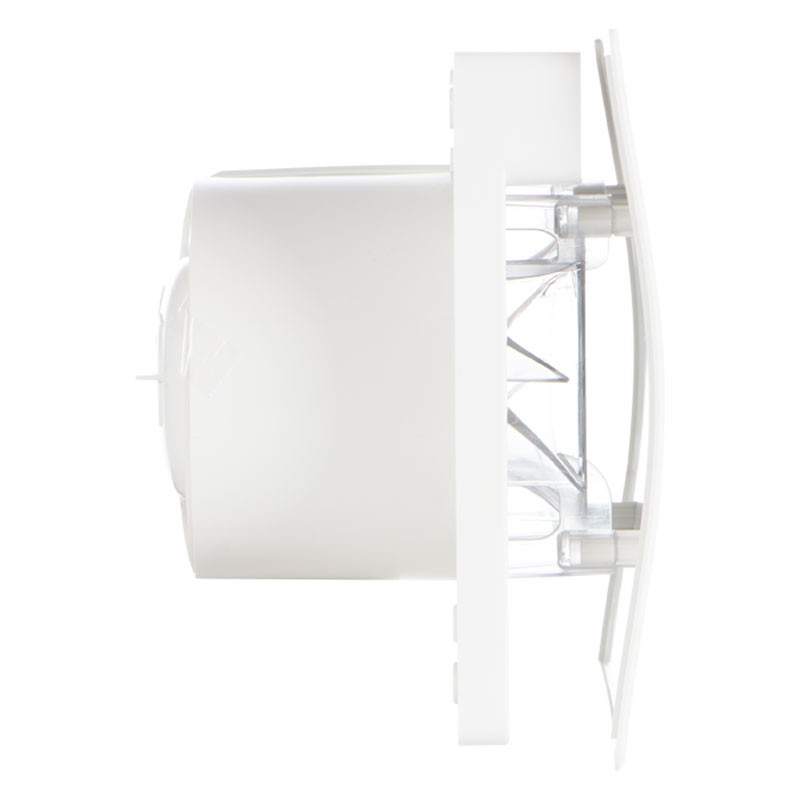

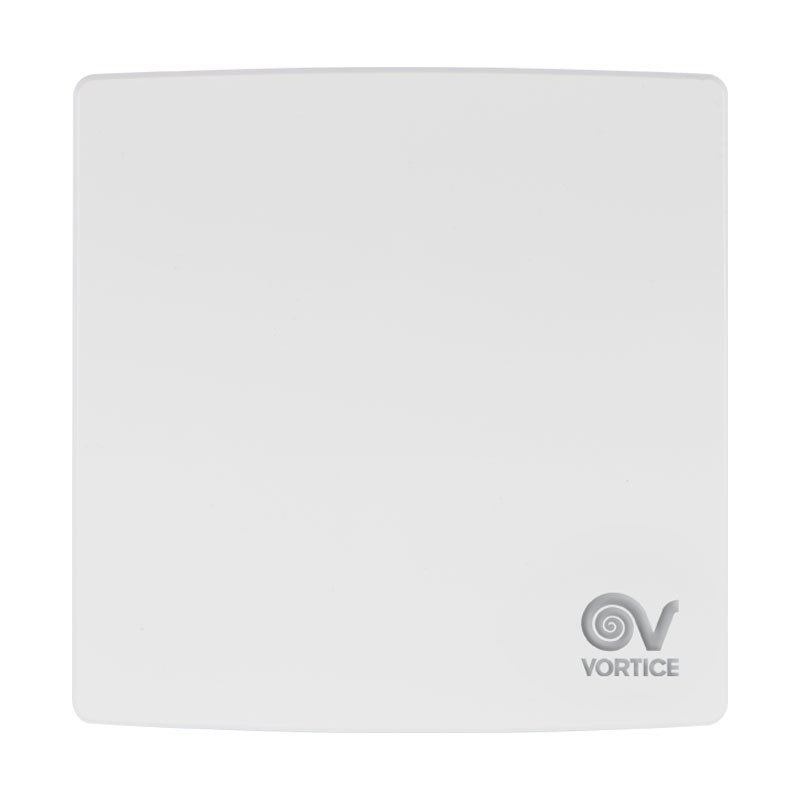

Vortice MEX 100/4 wall-mounted helicoentrifugal ventilator, 100 mm diameter, maximum air flow 90 m3/h.
Vortice Wall mounted helicycentrifuge Vacuum cleaner MEX 100/4 0000011314
€116.25
€116.25
Tax included
Tax included
Pay in installments with Klarna
Items Available: 3
Features:
- Construction in plastic resin resistant to impact and ageing due to exposure to the sun (UV resistant)
- AC motor with shaft mounted on a ball bearing support, directly coupled to a helical-centrifugal impeller in plastic material
- Maximum flow rate 90 m3/h
- Version equipped with electronic card that allows delayed shutdown; the delay can be programmed in a range between 3 and 20 at the time of installation
- Equipped as standard with butterfly check valve to prevent unwanted air return when switched off
- IP45 degree of protection, which guarantees the possibility of installation in Zone 1 of the bathroom according to international standard IEC 60364-7
- IMQ certified safety.
Technical specifications:
- Max absorbed current at max speed (A) 0,052
- Rated diameter duct (mm) 100
- Frequency (Hz) 50
- Protection degree IP45
- Insulation class II
- Weight (Kg)0,6
- Max power consumption at max speed (W) 9
- Max. ambient temperature of continuous operation (°C) 50
- Voltage (V) 230
- Max flow rate at max speed (l/s) 25
- Max flow rate at max speed (m³/h) 90
- Sound power level Lw
- dB(A) - max speed 47,4
- Pressure max at max speed (mmH2O) 4
- Max pressure at max speed (Pa) 39,23
- Sound pressure Lp in free field
- dB(A) 3 m max speed 26,9
- RPM max 2175.
Data sheet
- Diameter:
- 100
- Type:
- Centrifugal fans
