Elicent centrifugal aspirator 230v 287m3/h diameter 122 2AX1332
ELI 2AX1332
8016510038985

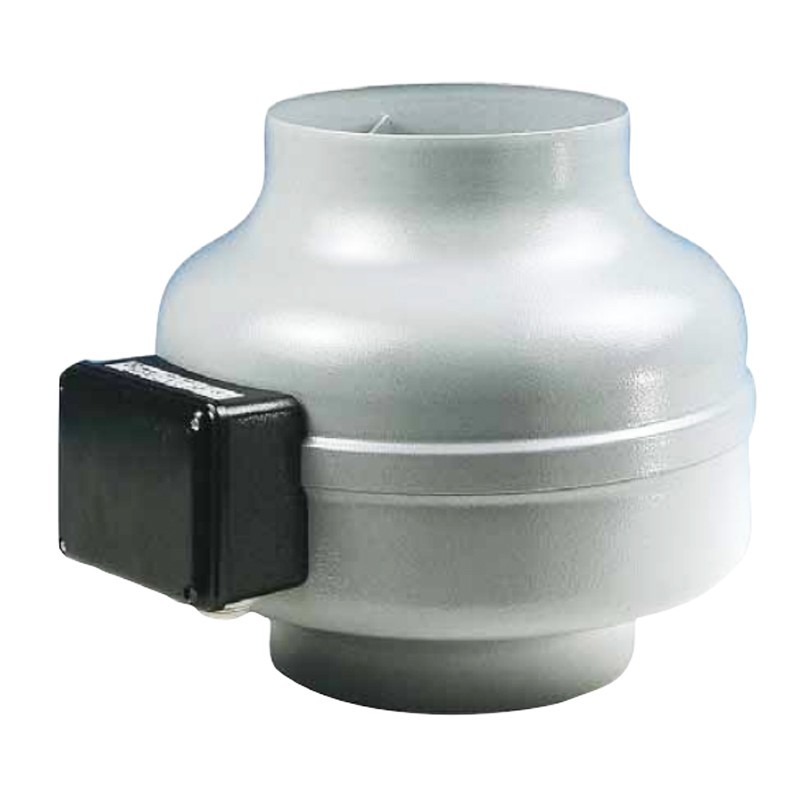

AXC 125A centrifugal duct model Elicent air and odour extractor fan, complete with brackets, Application in environments such as: public places, offices, gaming rooms, shops, houses, gyms, locker rooms, laboratories, bars, restaurants, canteens, hoods (with filter), etc.
Elicent centrifugal aspirator 230v 287m3/h diameter 122 2AX1332
€162.69
€162.69
Tax included
Tax included
Pay in installments with Klarna
Items Available: 4
Due to its construction and performance characteristics, the AXC series can be used horizontally or vertically at any point in the pipeline. The air sucked in must not be dusty or corrosive.
CHARACTERISTICS:
- Centrifugal duct fans
- Installation in line with the pipeline
- Brackets and fixing brackets supplied as standard
- Suitable for clean air with max temperature 60°C
- IMQ Certificates
- Protected against splash water (IPX4)
- Reverse paddle fan
- Static and dynamic balancing according to ISO 1940 standards
- Epoxy powder coated steel structure
- Galvanized steel flow rectifiers
- Single-phase motor (230V-50Hz) with long life bearings with thermoprotector
- Ventilation unit suitable for continuous duty
- Compliant with CEI EN 60335-2-80, EMC 2014/30/EU and LVD 2014/35/EU.
TECHNICAL CHARACTERISTICS:
- Pipe diameter 125 mm
- Max. flow rate 287 cubic meters/h
- Pressure Max 238 Pa
- Voltage at 50 Hz 230V
- Absorbed current 0.13 A
- Power 27 W
- Speed 1700 RPM/1"
- Sound Pressure (at 3 m) 32 db (A) (* Lp(A) at 3 m in free field 230V/50Hz)
- IPX4 Degree of Protection
- Max temperature 60 C°.
Data sheet
- Diameter:
- 122
- Type:
- Centrifugal fans
