Vortice Outdoor centrifugal fan CA 150 WE D E 3 speeds 0000016087
VOR 0000016087
8010300160870
Vortice Outdoor centrifugal fan CA 150 WE D E, powerful, quiet and weatherproof, with the following features:
-
Installation: Outdoor
-
Duct diameter: 150 mm
-
Speed: 3 levels (manual or via TRIO-CA)
-
Power consumption: 39-43-87 watts
-
Voltage: 230V
-
Degree of protection: IPX5 (protected against water jets)
€331.75
Items Available: 2
: 1
Frequently bought together
Professional suction for civil and industrial environments

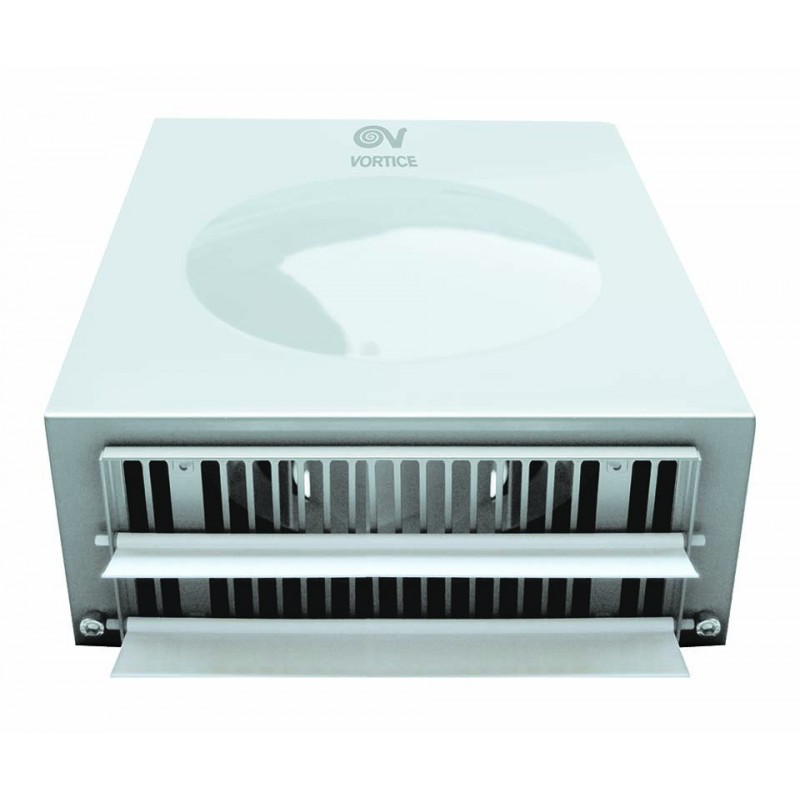

The Vortice CA 150 WE D E centrifugal duct exhaust fan is designed for outdoor installation in ducted ventilation systems. Ideal for expelling air and odors in domestic environments, kitchens, bathrooms, technical rooms and light industrial applications, it offers a flow rate of up to 625 m³/h, ensuring effective and continuous air exchange.
Sturdy construction and reliable motor
The external structure is made of stamped sheet steel and painted with scratch-resistant polyester to withstand the elements. The 3-speed AC motor, mounted on ball bearings, is thermally protected, ensuring long life even under continuous working conditions. Backward-bladed centrifugal impeller ensures powerful and quiet airflow.
Compatible with remote environmental sensors
The Vortice CA 150 WE D E can be connected to remote temperature, humidity, occupancy and smoke sensors, allowing automatic management of ventilation according to environmental conditions. An ideal solution for smart and energy-saving installations.
High performance and low consumption
Thanks to 3-speed technology, the device can be adjusted according to actual needs:
-
Maximum flow rate: 625 m³/h
-
Maximum pressure: 446 Pa
-
Maximum consumption: 87 W
-
Low noise emissions: up to 53 dB(A) at 3 m radiated
With minimal standby consumption (0.018 kW), this vacuum cleaner is also suitable for prolonged use while keeping energy costs low.
Technical Specifications Vortex Centrifugal Fan
| Parameter | Value |
|---|---|
| Model | Vortex CA 150 WE D E |
| Type | Centrifugal duct exhaust fan |
| Installation | External - ideal for forced ventilation systems |
| Duct diameter | 150 mm |
| Speed | 3 levels (selectable manually or via TRIO-CA) |
| Air flow rate (min/med/max) | 250 / 380 / 530 m³/h (up to 625 m³/h) |
| Maximum pressure | 433 - 446 Pa |
| Power consumption | 39 / 43 / 87 W |
| Current consumption | 0,36 - 0,46 A |
| Voltage / Frequency | 230V / 50Hz |
| Motor | AC with ball bearings and thermal protection |
| Motor RPM (RPM) | 1015 / 1800 / 2520 |
| Sound emission Lp at 3 m | 31 - 53 dB(A) |
| Sound power Lw radiated | 53.7 - 70.5 dB(A) |
| Insulation | Class I |
| Degree of protection | IPX5 (protected against water jets) |
| Max. ambient temperature | 55°C |
| Sensor compatibility | Yes (temperature, humidity, smoke, presence) |
| Structure | Outdoor painted steel casing |
There are no reviews
Data sheet
- Diameter: 150
- Type: Centrifugal fans
