Fischer final pre-assembled clamp PM F 40 for photovoltaic aluminum 00571222
FIS 00571222
8001132712221

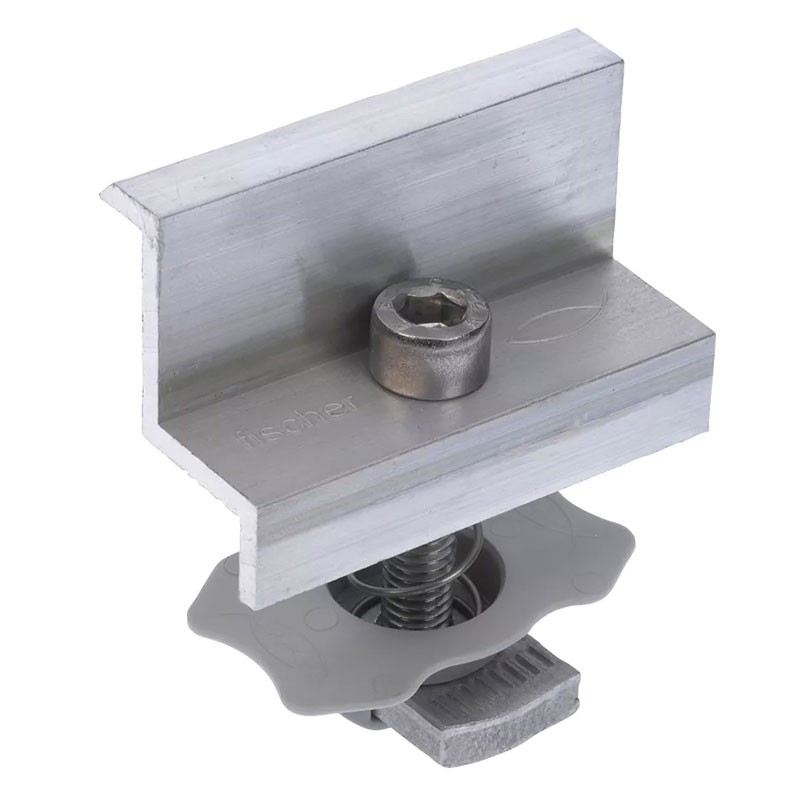

Fischer final preassembled clamp for photovoltaic panels. Equipped with an integrated spring and hammer nut with clip, it ensures quick, safe and accurate installation on compatible profiles, with the following features:
-
Suitable for 40 mm framed panels
-
Pre-assembled for quick installation
-

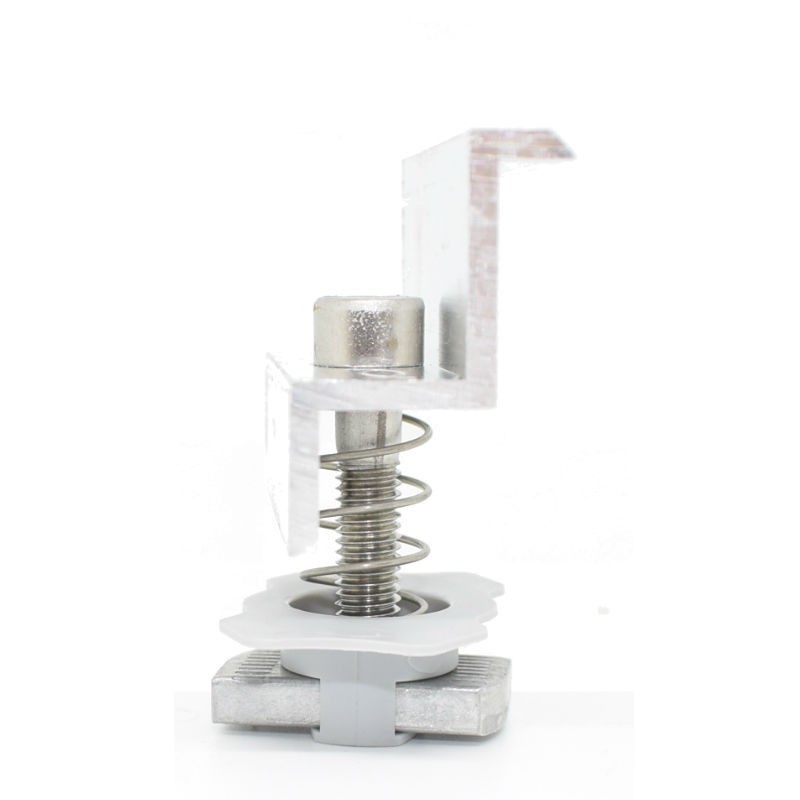

Integrated spring for easy positioning
-
Hammer nut with PA6 clip for immediate insertion into profile
-
Durable materials, aluminum and stainless steel
-
Recommended tightening torque 12 Nm
€2.06
Items Available: 286
: 38
PM F 40 end clamp: smart fastening for photovoltaic systems

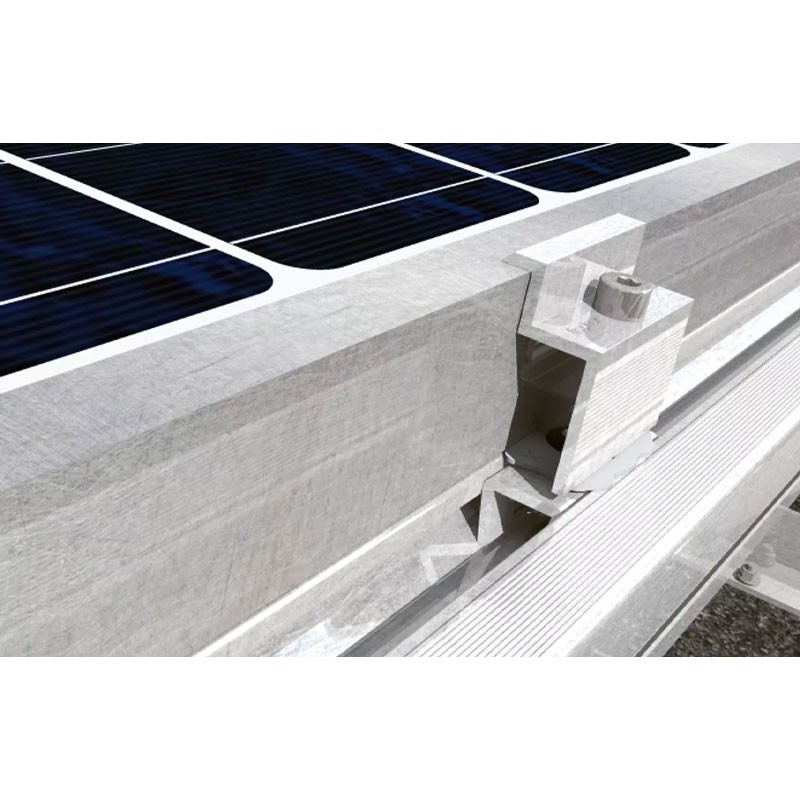

The PM F 40 end clamp is designed for simple and reliable fastening of 40 mm framed PV panels on aluminum structures. Thanks to the integrated spring system, the clamp remains raised during positioning, simplifying module installation and optimizing assembly time.

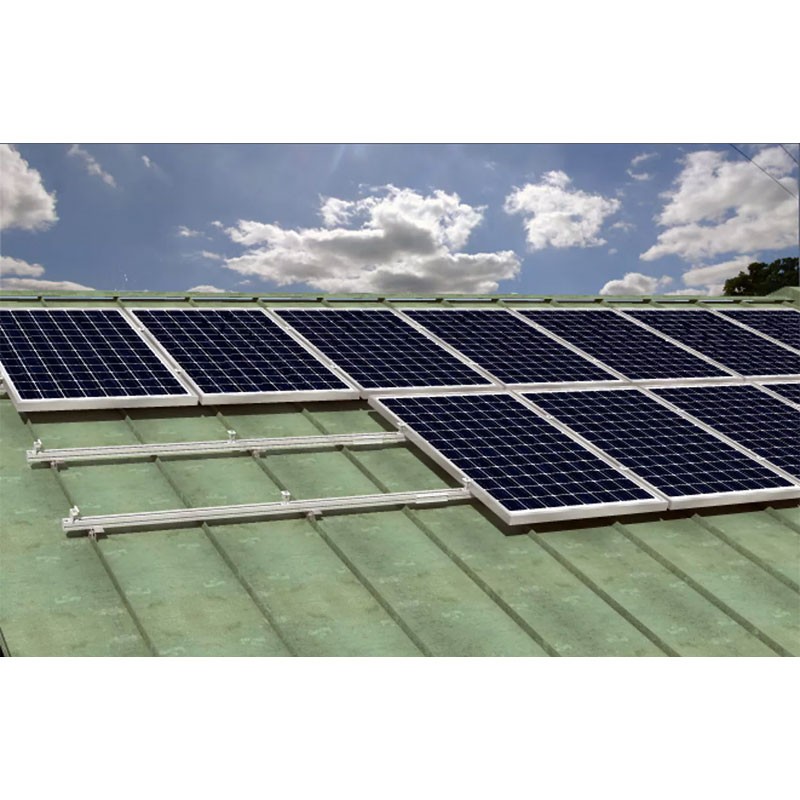

The hammer nut with plastic cage ensures immediate and secure insertion into the central groove of the support profile, making the system extremely practical even for installations on sloping roofs or industrial facilities.
Material quality and reliability
All clamp components are made of high-strength and durable materials:
-
Clamp body and nut: aluminum alloy AW 6060 T66, according to EN 755-2:2013 standard
-
TCEI screw: stainless steel A2-70, according to EN ISO 3506-1/2:2009
-
Nut clip: made of high-strength gray nylon PA6.
This combination ensures corrosion resistance, mechanical stability and long service life, even in adverse weather conditions.
Compatibility with profiles
The PM F 40 clamp is compatible with the following profiles:
-
SolarFish H33 AL
-
SolarFish H44 AL
-
SolarMetal P AL
-
SolarMetal L AL
Quick and easy assembly
-
Insert the hammerhead nut into the top slot of the profile
-
Turn 90 degrees clockwise to lock the nut into the slot
-
Place the photovoltaic panel on the structure
-
Fasten the screw by applying a torque of 12 Nm with a 6 mm SW hex key
Technical Specifications Fischer Clamp
Mechanical Data
| Model | PM F 40 |
| Module frame compatibility | 40 mm |
| Recommended tightening torque | 12 Nm |
| Tightening wrench | Hexagonal SW 6 mm |
Materials
| Clamp/nut material | Aluminum |
| Nut clip material | Nylon |
| Screw material | Stainless steel |
Compatibility Systems
| Compatible Systems | SolarFish and SolarMetal Profiles |
