Schneider TeSys LC1D Contactor 3P 38A AC3 220V AC LC1D38M7


SNR LC1D38M7 3389110352320

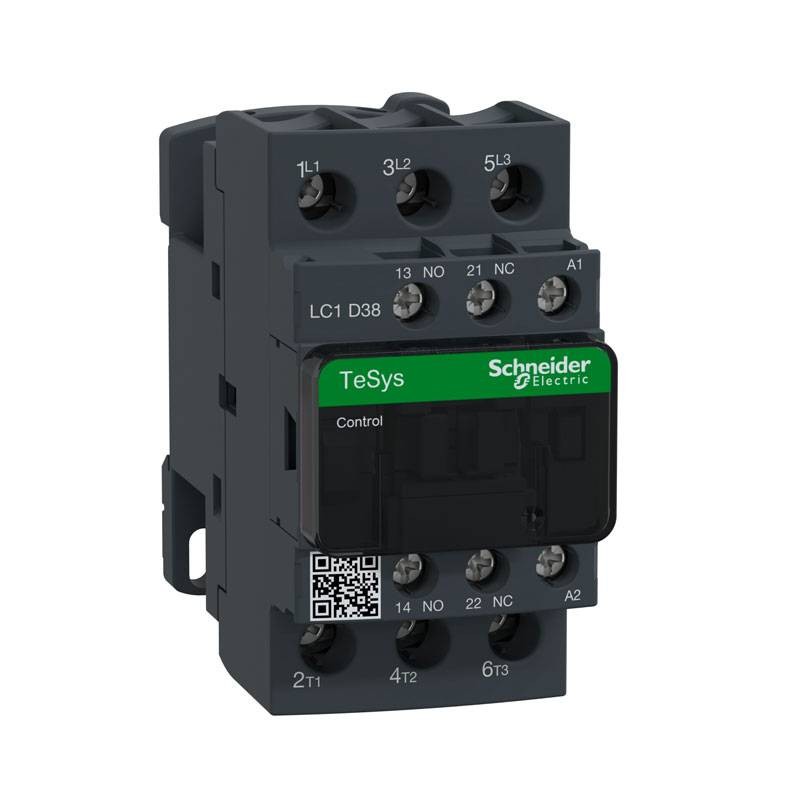

Schneider TeSys LC1D contactor with the following characteristics:



  • Number of poles: 3
  • Rated operating voltage Ue: <= 690 V "AC" 25...400 Hz Power circuit - <= 300 V DC Power circuit
  • Conventional thermal current in open air: 10A at <60 °C for signaling circuit - 50A at <60 °C for Power circuit
  • Control circuit type: AC at "50/60 Hz"
  • Auxiliary contact composition: 1 NO + 1 NC
  • Minimum switching voltage: 17V for signaling circuit
  • Minimum switching current: 5mA per signaling circuit
Request info about this product

Schneider TeSys LC1D Contactor 3P 38A AC3 220V AC LC1D38M7

€137.48
€137.48

Schneider TeSys LC1D Contactor 3P 38A AC3 220V AC LC1D38M7

€137.48
Tax included
klarna Pay in installments with Klarna
qty

Schneider TeSys LC1D Contactor 3P 38A AC3 220V AC LC1D38M7

€137.48

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

Advantages:

  • TeSys' D contactor, 3-pole (3NO), for motor control applications up to 38 A/690V AC-3 (18.5 kW at 400 V)
  • Features a 220V AC coil from 50/60 Hz, built-in 1NO+1NC auxiliary contacts (NC mirror certificate), connection via screw terminals
  • For operating speeds up to 3600 cycles/hour and environments up to 60°C
  • Features high reliability and durability
  • Compact (45mm wide), DIN rail mounting or screw mounting
  • Certified according to various standards (IEC, UL, CSA, CCC, EAC), Green Premium compliance (RoHS/REACh)



Rated use voltage:

  • <= 690 V "AC" 25...400 Hz Power circuit
  • <= 300 V DC Power circuit



Rated use current:

  • 50 A 60 °C) "AC" AC-1 for Power circuit at <= 440 V
  • 38 A 60 °C) "AC" AC-3 for Power circuit at <= 440 V
  • 38 A 60 °C) "AC" AC-3e for Power circuit at <= 440 V



Motor power:

  • 18.5 kW at 500 V "AC" "50/60 Hz" (AC-3)
  • 18.5 kW at 660...690 V "AC" "50/60 Hz" (AC-3)
  • 7.5 kW at 400 V "AC" "50/60 Hz" (AC-4)
  • 18.5 kW at 380...400 V "AC" "50/60 Hz" (AC-3)
  • 9 kW at 220...230 V "AC" "50/60 Hz" (AC-3)
  • 18.5 kW at 415...440 V "AC" "50/60 Hz" (AC-3)
  • 18.5 kW at 500 V "AC" "50/60 Hz" (AC-3e)
  • 18.5 kW at 660...690 V "AC" "50/60 Hz" (AC-3e)
  • 18.5 kW at 380...400 V "AC" "50/60 Hz" (AC-3e)
  • 9 kW at 220...230 V "AC" "50/60 Hz" (AC-3e)
  • 18.5 kW at 415...440 V "AC" "50 /60 Hz" (AC-3e)



Motor power in hp:

  • 10 hp at 230/240 V for 3-phase motors" AC""50/60 Hz"
  • 10 hp at 200/208 V for 3 phase motors" AC""50/60 Hz"
  • 5 hp at 240 V for 1 phase motors" AC" "50/60 Hz"
  • 20 hp at 480 V for 3 phase motors" AC""50/60 Hz"
  • 25 hp at 600 V for 3 phase motors" AC""50/60 Hz"



Conventional thermal current in open air:

  • 10 A at <60 °C per signaling circuit
  • 50 A at <60 °C for power circuit



Rated closing power Irms:

  • 140 A "AC" for signaling circuit complying with IEC 60947-5-1
  • 250 A DC for signaling circuit in accordance with IEC 60947-5-1
  • 550 A at 440 V for power circuit complying with IEC 60947



Rated short-time allowable current:

  • 60 A at <40 °C - 10 min for Power circuit
  • 430 A at <40 °C - 1 s for Power Circuit
  • 150 A at <40 °C - 1 min per Power Circuit
  • 310 A at <40 °C - 10 s per Power circuit
  • 100 A - 1 s per signaling circuit
  • 120 A - 500 ms per signaling circuit
  • 140 A - 100 ms per signaling circuit



Associated fuse gauge:

  • 10 A gG for signaling circuit complying with IEC 60947-5-1
  • 63 A gG at <= 690 V coordination Type 1 for Power circuit
  • 63 A gG at <= 690 V coordination Type 2 for Power circuit



Rated insulation voltage:

  • 600 V CSA certified Power circuit
  • 600 V UL certified Power circuit
  • 690 V complying with IEC 60947-1 signaling circuit
  • 600 V CSA certified signaling circuit
  • 600 V UL certified signaling circuit
  • 690 V complying with IEC 60947-4-1 Power circuit



Features:

  • Mechanical life span: 15 Mcicycles
  • Control circuit type: AC at "50/60 Hz"
  • Auxiliary contact composition: 1 NO + 1 NC
  • Mechanically linked type: 1 NO + 1 NC complying with IEC 60947-5-1
  • Minimum switching voltage: 17 V per signaling circuit
  • Minimum switching current: 5 mA per signaling circuit
  • Insulation resistance: > 10 MOhm per signaling circuit
  • Dimensions: height 85 mm - width 45 mm - depth 92 mm
  • Weight: 380 grams

Data sheet

Type:
Contactors
Voltage:
220V
Poles:
3P
Degree of protection:
IP20
Amps:
38A
