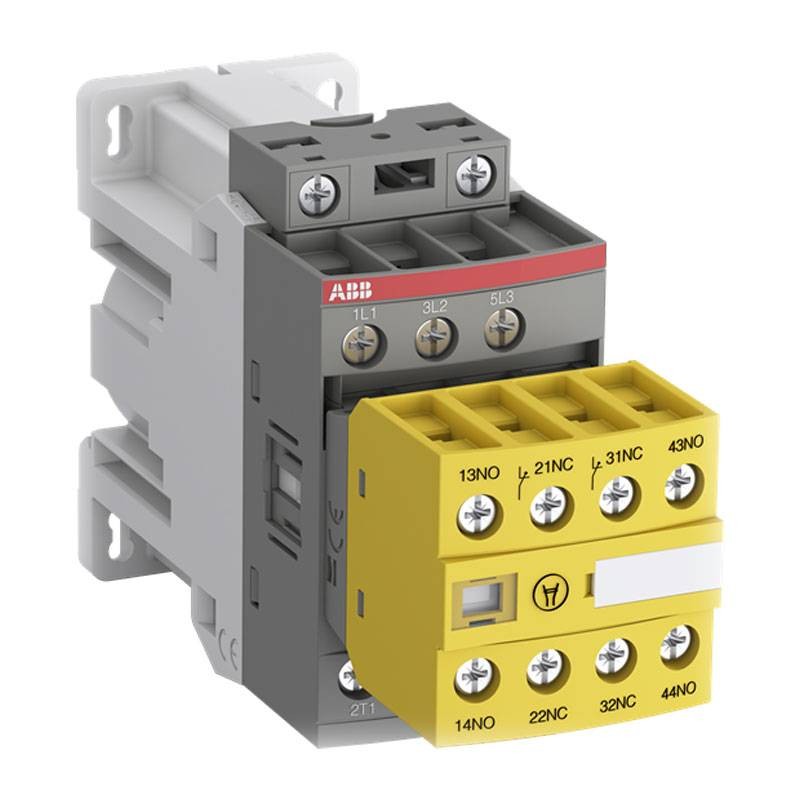

Abb three-pole safety contactor AFS09Z with 24 VDC coil AFS09Z302230

Abb
Abb
ABB AFS09Z302230 3471523158191

Abb AFS09Z 30-22-30 three-pole safety contactor with 24 VDC coil with the following characteristics:



  • Number of NO main contacts: 3
  • Number of NO auxiliary contacts: 2
  • Number of NC auxiliary contacts: 2
  • Rated operating voltage: Auxiliary circuit 690V
  • Impulse withstand voltage (Uimp): 6kV
  • DIN rail mounting: TH35 - TH35-7.5
  • Degree of protection: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb three-pole safety contactor AFS09Z with 24 VDC coil AFS09Z302230
€52.20
€52.20

€52.20
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€52.20

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Main Circuit: 50/60 Hz
  • Maximum mechanical switching frequency: 3600 cycles per hour
  • Rated control circuit voltage (Uc): DCin CD operation 24 V
  • Operation time: Between coil de-energizing and NC contact closing 22 ... 57 ms
  • Between coil de-energizing and NO contact opening 17 ... 29 ms
  • Between coil excitation and NC contact opening 20 ... 35 ms
  • Between coil excitation and NO contact closure 27 ...53 ms
  • Cable stripping length: Auxiliary circuit 10 mm
  • Terminal type: screw terminals
  • Width: 45 mm
  • Depth: 130.5 mm
  • Height: 86 mm

There are no reviews

Data sheet

Type:
Contactors
Voltage:
690V
Degree of protection:
IP20
