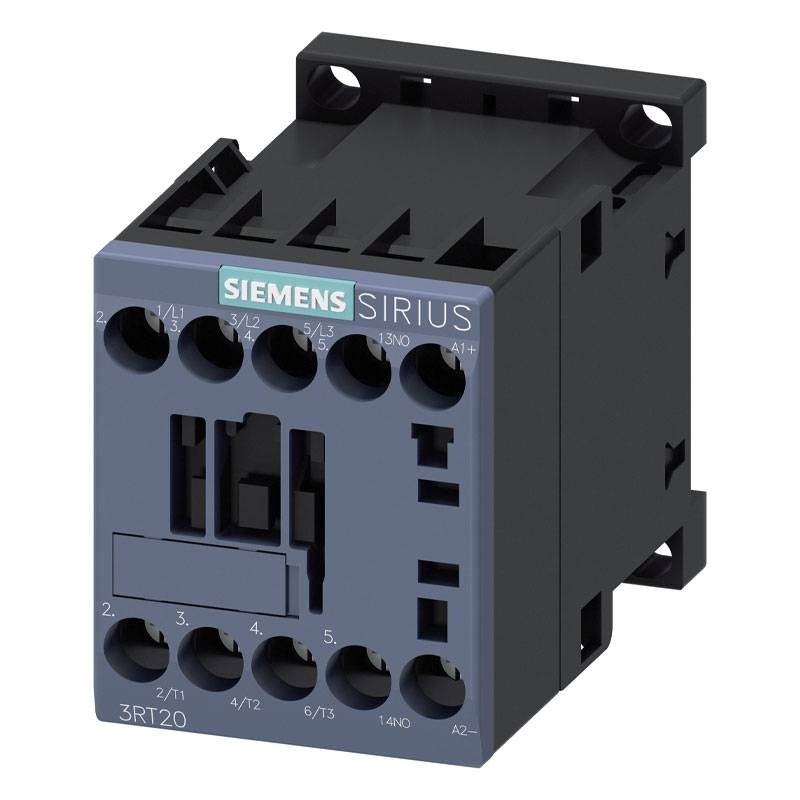

Siemens Sirius AC-3e/AC-3 power contactor 9A 3P 24V DC 3RT20161BB41
SIE 3RT20161BB41
4011209783942
Siemens Sirius AC-3e/AC-3 power contactor power up to 4 kW at 400V, with 3-pole configuration and 24 V DC supply, is equipped with a normally open (1 NO) auxiliary contact and screw terminals with the following characteristics:
-
Rated current: 9 amps
-
Power: up to 4 kW at 400 V
-
3-pole configuration, 24V DC power supply
-
Auxiliary contact: 1 NO
-
Screw terminals for secure mounting
-
Compact, construction size S00
€28.50
Items Available: 200
: 35
Siemens AC-3e/AC-3 power contactor 9A 3P 24V DC
This contactor is suitable for handling AC-3e and AC-3 loads, with a power rating of up to 4 kW and a current rating of 9 A. The 3-pole configuration and 24V DC power supply make it ideal for industrial electrical systems, ensuring stable and safe operation.
Simple and stable installation
The contactor has screw terminals for safe and quick mounting, while the normally open (1 NO) auxiliary contact offers more control flexibility in circuits. The S00 construction size makes it perfect for installations in limited spaces.
Compact and durable
This power contactor offers reliability under heavy-duty conditions, with a compact design that saves space. Quality construction ensures long life and low maintenance.
Detailed technical specifications:
-
Load type: AC-3e/AC-3
-
Rated current: 9 A
-
Power: 4 kW at 400 V
-
Pole configuration: 3 poles
-
Power supply: DC 24 V
-
Auxiliary contacts: 1 NO
-
Screw terminals
-
Design size: S00
-
Height 58 mm - Width 45 mm - Depth 73 mm
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24V
- Poles: 3P
- Amps: 9A
