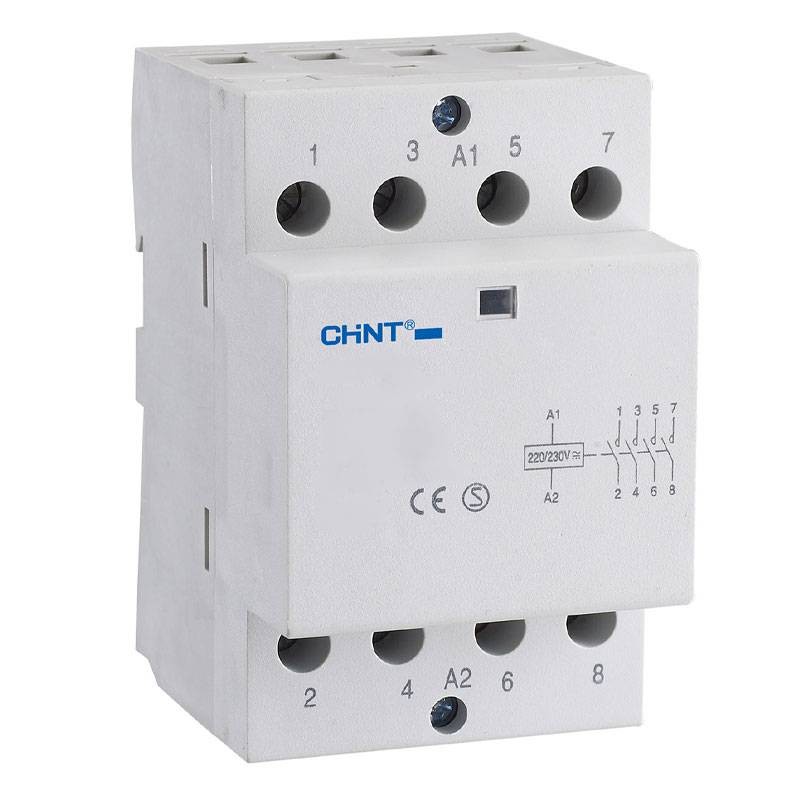

Chint Modular Contactor NCH8 40A 4NA 4P 230 Vac 3 Modules 256099


CHT 256099 6940092491055

Chint NCH8 modular contactor with the following characteristics:

  • Rated voltage: 400 Vac
  • Rated current: 40 Amperes
  • Coil voltage in VAC 50/60 Hz: 230 Vac
  • Number of poles: 4
  • Number of NO main contacts: 4
  • Number of modules: 3
  • Degree of protection: IP20
Request info about this product

Chint Modular Contactor NCH8 40A 4NA 4P 230 Vac 3 Modules 256099

€74.47
€74.47

Chint Modular Contactor NCH8 40A 4NA 4P 230 Vac 3 Modules 256099

€74.47
Tax included
klarna Pay in installments with Klarna
qty

Chint Modular Contactor NCH8 40A 4NA 4P 230 Vac 3 Modules 256099

€74.47

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

A contactor is a device for closing and opening electrical circuits, mostly high voltage circuits, by remote control.

IEC 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes contact channels between the system and the power structure. In short, a kind of switch to be used for all eventualities.

Features:

  • Reference standard: IEC/EN 61095
  • Rated current In AC3: 15 A
  • Rated frequency: 50/60 Hz
  • Isolation voltage: 500 Vac
  • Power Dissipation: 8.6 W
  • Dimensions: 85x54x65.5 mm (HxWxD)

Data sheet

Type:
Contactors
Voltage:
400VAC
Modules:
3
Poles:
4P
Degree of protection:
IP20
Amps:
40A
