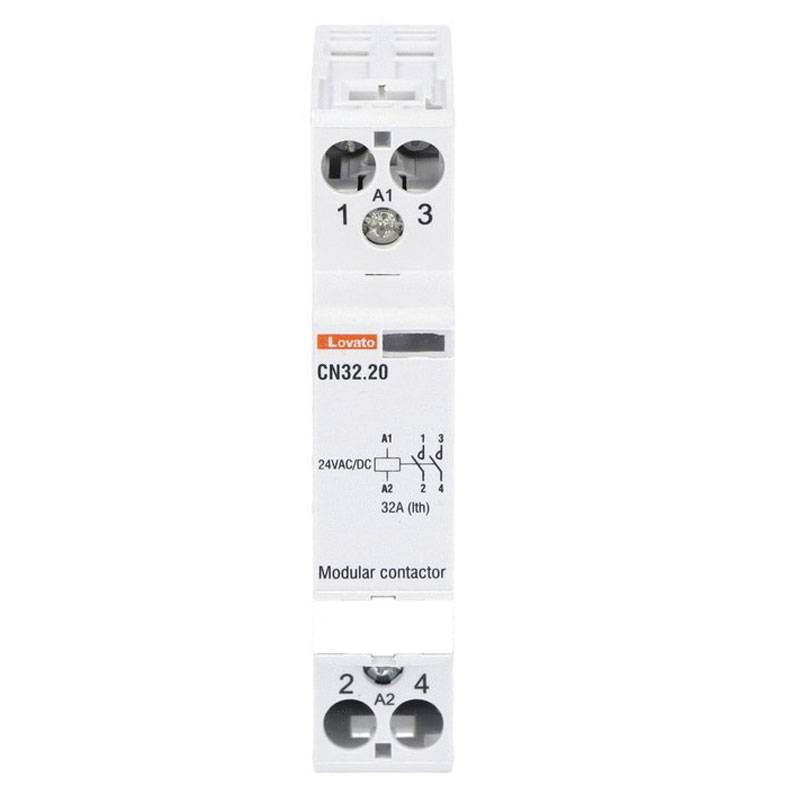

Lovato Modular Contactor 32A AC1 24V AC/DC 1 Module CN3220024
LOV CN3220024
8013975218112
Lovato AC1 modular contactor is a compact device designed for controlling electrical loads in AC and DC circuits, ideal for industrial and residential applications, with the following features:
-
Rated current: 32 amps
-
Rated supply voltage: 24V AC/DC
-
Number of poles: 2
-
Type of contacts: 2NO
-
Number of DIN modules: 1
-
Degree of protection: IP20
-
Coil tightening torque: 0.6 Nm
-
Terminal tightening torque: 1.2 Nm
€28.49
Items Available: 3
Lovato Modular Contactor 32A AC1 24V AC/DC 1 Module
With a modular 1-DIN-module design, the Lovato contactor occupies minimal space within the electrical panel, making it perfect for installations where space must be optimized without sacrificing performance.
Versatility with AC/DC power supply
Thanks to compatibility with AC and DC voltages (24V AC/DC), this contactor is extremely flexible, adapting to different system configurations.
Reliable performance
Designed for a current rating of 32A under AC1 conditions, the device ensures safe and stable control of electrical loads. The 2NO contacts ensure reliable management of lighting circuits, motors or resistors.
Safety and Resistance
With an IP20 rating, the Lovato contactor is suitable for installations in environments protected from dust and accidental contact. It can operate over a wide temperature range, from -25 to +70 degrees, ensuring high performance even in harsh conditions.
Key Features
-
Number of DIN modules: 1, for compact installation
-
Type of contacts: 2NO (normally open)
-
Type of operating voltage: AC/DC, for maximum versatility
-
Degree of protection: IP20, for installation in protected panels
-
Coil and power supply terminals: Coil: 1-2.5mmq - Power supply: 1-10mmq
-
Operating temperature: -25/+70 degrees
-
Storage temperature: -30/+80 degrees
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24V
- Poles: 2P
- Degree of protection: IP20
- Amps: 32A
