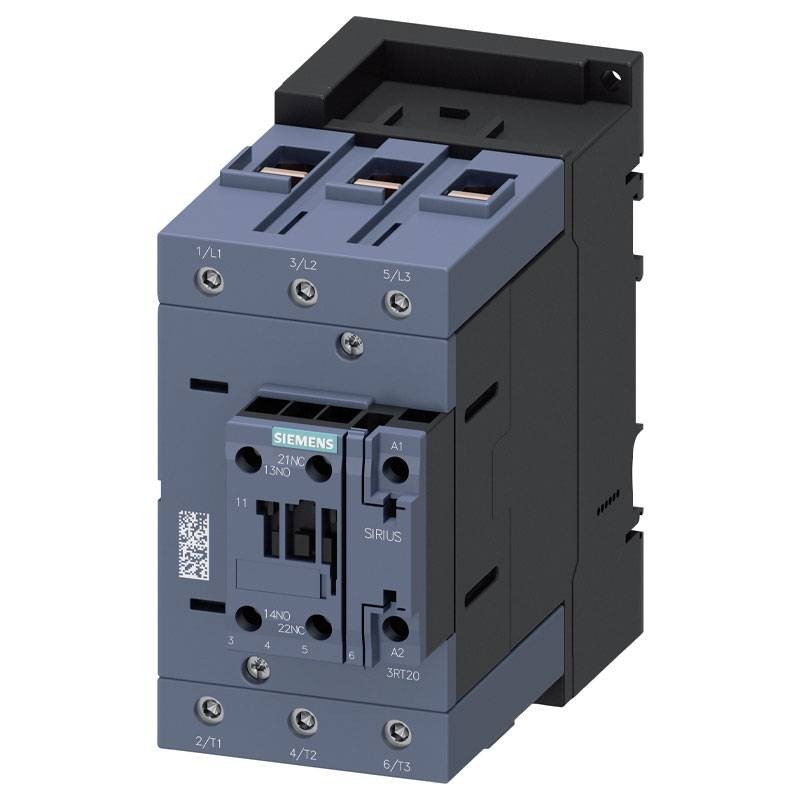

Siemens Sirius power contactor AC-3e/AC-3 95A 3P 230V AC 3RT20461AP00
SIE 3RT20461AP00
4047621022239
Siemens Sirius AC-3e/AC-3 power contactor power up to 45 kW at 400V, with 3-pole configuration and 230 V AC power supply, includes auxiliary contacts configured as 1 NO + 1 NC with the following characteristics:
-
Rated current: 95 amps
-
Power: up to 45 kW at 400 V
-
3-pole configuration, 230V AC power supply
-
Auxiliary contacts: 1 NO + 1 NC with screw terminals for safe and easy installation
-
S3 construction size makes it ideal for high-power loads in industrial spaces
€335.07
Items Available: 2
Siemens Sirius AC-3e/AC-3 95A 3P 230V AC power contactor
This contactor is ideal for applications requiring reliable handling of high loads up to 45 kW and 95 A, thanks to its 3-pole configuration and 230V AC, 50 Hz power supply, which ensures stable performance in demanding working environments.
Easy installation and built-in auxiliary contacts
Equipped with screw terminals, the contactor is designed for quick and safe mounting. It includes auxiliary contacts configured as 1 NO + 1 NC, offering control versatility and integration into industrial systems.
Rugged design for demanding environments
Built to withstand demanding operating conditions, this contactor is S3 construction size, perfect for handling high loads and ensuring safety and reliability over time.
Detailed specifications:
-
Load type: AC-3e/AC-3
-
Rated current: 95 A
-
Supported power: 45 kW at 400 V
-
Pole configuration: 3 poles
-
Power supply: AC 230 V, 50 Hz
-
Auxiliary contacts: 1 NO + 1 NC
-
Screw terminals
-
Design size: S3
-
Height 140 mm - Width 70 mm - Depth 152 mm
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Poles: 3P
- Amps: 95A
