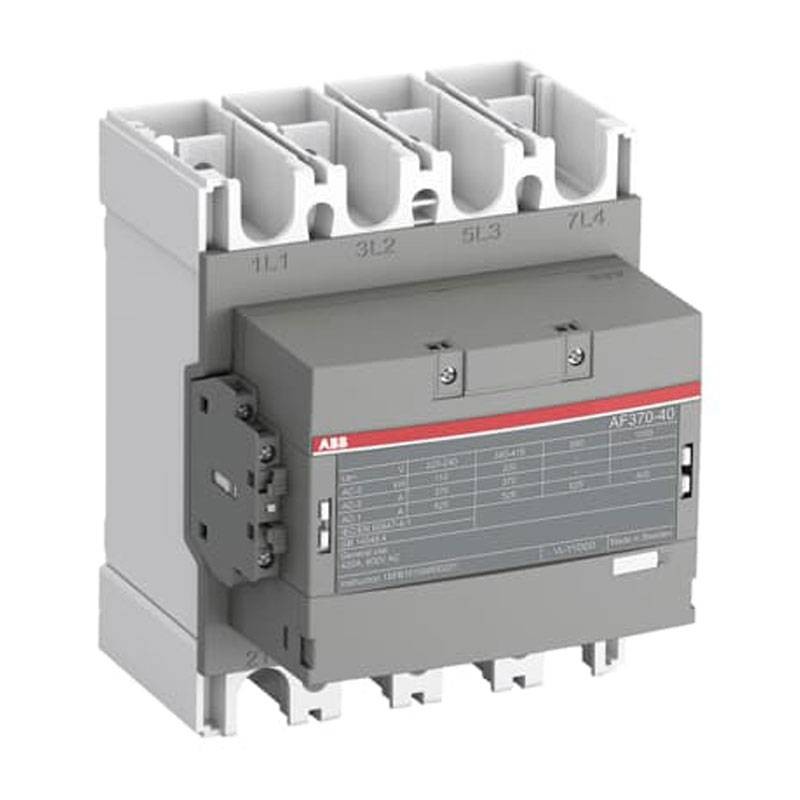

ABB Four-pole Contactor AF370-40-11-13 (AF370401113): 4 high-performance poles with wide range coil 100250 VAC/DC, 4 main NO contacts and auxiliary 1NO+1NC, ideal for control and power in industrial installations up to 1000 V.
-
4P (four-pole) with 4 main NO contacts for managing three-phase lines + neutral or multiple loads
-
Coil 100250 VAC/DC: maximum flexibility on different power supplies, simplifies stock and maintenance
-
AC-1 current up to 525 A at 690 V (40°C): suitable for resistive loads and power distribution
-
AC-3 current 370 A (55°C): ideal for motor control in start/service
-
AC-3 power up to 200 kW at 380/400-440 V (and 110 kW at 220/240 V)
-
Integrated auxiliaries 1 NO + 1 NC for feedback, interlocks, and control logics
€1,160.95
Items Available: 3
ABB Contactor AF370: reliable power control for industrial installations
The ABB AF370-40-11-13 contactor is designed for applications where operational continuity and high maneuverability are required. The four-pole (4P) configuration makes it particularly versatile: it allows control of three-phase circuits with neutral, management of distributed loads, or controlled sectioning on multiple lines. It is a typical choice in distribution boards, large-scale HVAC systems, industrial automation, and motor starts with high absorption.
Wide range coil 100-250 VAC/DC: one code for multiple installations
One of the strengths of the AF series is the wide-range coil: 100-250 VAC/DC. This means that the same contactor can be used on installations with different control power supplies (AC or DC), reducing the need to stock multiple variants and speeding up replacement interventions. In production environments, this flexibility translates into simpler maintenance and reduced plant downtime.
Electrical performance: AC-1 for resistive loads, AC-3 for motors
The AF370 model offers significant ratings both in AC-1 (predominantly resistive or slightly inductive loads) and in AC-3 (motor operation). In AC-1 it reaches up to 525 A at 690 V (40°C), with values adapting to operating temperatures (e.g., 425 A at 60°C). In AC-3 it maintains 370 A at 55°C on multiple typical motor supply voltages, with nominal powers reaching 200 kW at 380/400-440 V. This makes it suitable for process lines, pumps, compressors, fans, and power units where switching reliability is essential.
Contacts: power 4NO and auxiliary 1NO+1NC for complete logic
The provision of 4 main NO contacts allows power switching on 4 poles, while the auxiliary contacts 1 NO + 1 NC are perfect for status signaling, self-holding, consents, interlocks, and integration with PLCs or control circuits. It is a very practical configuration because it avoids the immediate addition of external auxiliary blocks in many standard applications.
| GENERAL DATA | |
|---|---|
| Number of main NO contacts: | 4 |
| Number of main NC contacts: | 0 |
| Number of auxiliary NO contacts: | 1 |
| Number of auxiliary NC contacts: | 1 |
| Number of poles: | 4P |
| ELECTRICAL DATA | |
| Rated operational voltage: | Main Circuit 1000 V |
| Rated frequency (f): | Main Circuit 50 Hz Main Circuit 50 / 60 Hz |
| Conventional free air thermal current (Ith): | according to IEC 60947-4-1, Open Contactors q = 40 °C 525 A |
| Rated operational current AC-1 (Ie): | (1000 V) 40 °C 400 A (1000 V) 60 °C 350 A (1000 V) 70 °C 290 A (690 V) 40 °C 525 A (690 V) 60 °C 425 A (690 V) 70 °C 350 A |
| Rated operational current AC-3 (Ie): | (415 V) 55 °C 370 A (440 V) 55 °C 370 A (380 / 400 V) 55 °C 370 A (220 / 230 / 240 V) 55 °C 370 A |
| Rated operational power AC-3 (Pe): | (415 V) 200 kW (440 V) 200 kW (380 / 400 V) 200 kW (220 / 230 / 240 V) 110 kW |
| Rated breaking capacity AC-3 according to IEC 60947-4-1: | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e: | 8.5 x Ie AC-3e |
| Rated making capacity AC-3 according to IEC 60947-4-1: | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e: | 12 x Ie AC-3e |
| Short-circuit protection devices: | Fuses Type gG 630 A |
| Rated short-time withstand current (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1709 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3700 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2960 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1208 A |
| Maximum breaking capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 5000 A |
| Rated insulation voltage (Ui): | according to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V according to UL/CSA 600 V |
| Impulse withstand voltage (Uimp): | Circuito Principale 8 kV |
| Maximum electrical switching frequency: | AC-1 300 cycles per hour AC-3 300 cycles per hour |
| Mechanical lifespan: | 5 million |
| Maximum mechanical switching frequency: | 300 cycles per hour |
| Coil operating limits: | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated control circuit voltage (Uc): | 50 Hz 100 ... 250 V 60 Hz 100 ... 250 V DC Operation 100 ... 250 V |
| Power loss: | at Nominal Operating Conditions per Pole 72 W |
| Operating time: | Between Coil De-energization and NO Contact Opening 45 ... 80 ms Between Coil Energization and NO Contact Closing 30 ... 60 ms |
| Main circuit cable sections: | Flexible 2 x 70 ... 185 mm² Rigid Al-Cable 1 x 185 ... 240 mm² Rigid Cu-Cable 1 x 6 ... 300 mm² Rigid Cu-Cable 2 x 70 ... 185 mm² |
| Auxiliary circuit cable sections: | Flexible with Ferrule 1x 0.75 ... 2.5 mm² Flexible with Ferrule 2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² Flexible 2x0.75 ... 2.5 mm² Solid 2 x 1 ... 4 mm² Stranded 2 x 1 .... 4 mm² |
| Connection capacity: | Flexible 2 x 70 ... 185 mm² Rigid Cu-Cable 2 x 70 ... 185 mm² |
| Degree of protection: | according to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 according to IEC 60529, IEC 60947-1, EN 60529 Coils IP20 according to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Tightening torque: | Cable Lug 9 N·m Main Circuit 22 ... 43 N·m |
| Terminal type: | Main Circuit: Bars |
| Product name: | Contactors over 100A |
| DIMENSIONS AND WEIGHT | |
| Product width: | 184 mm |
| Product depth: | 180 mm |
| Product height: | 225 mm |
| Net product weight: | 5.7 kg |
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 400/440VAC
- Poles: 4P
- Amps: 525A
