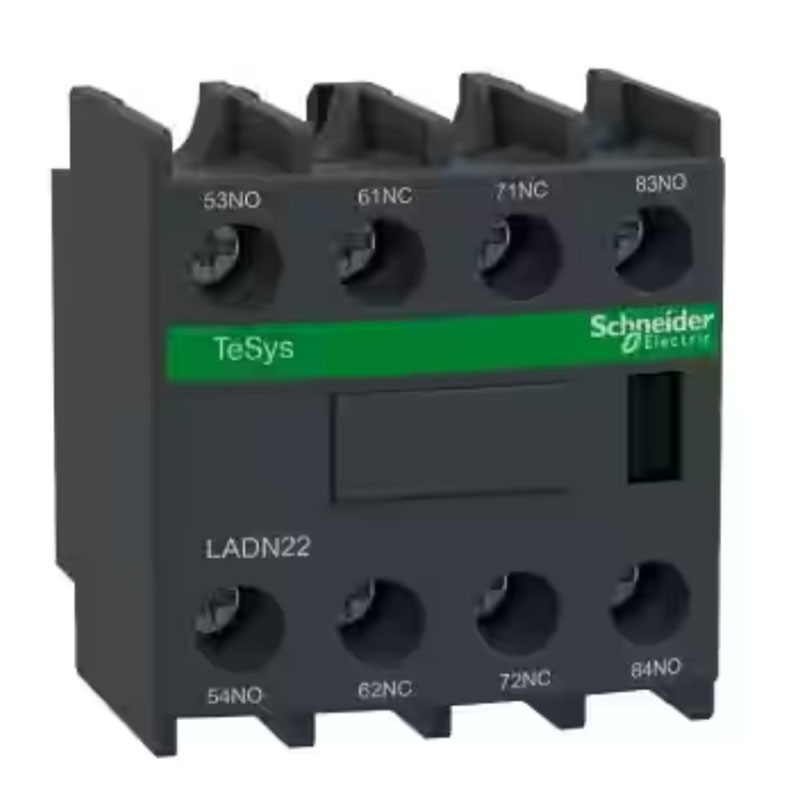

Telemecanique front auxiliary contact block 2NA+2NC LADN22
SNR LADN22
3389110384031
Schneider Telemecanique auxiliary contact block, with the following features:
- Mounting position: front side
- Pole contact composition: 2 NO + 2 NC
- Contact operation: instantaneous
- Rated operating voltage [Ue]: 690 V "AC" 25...400 Hz
- Rated insulation voltage [Ui]: 690V according to IEC 60947-5-1, 600V according to UL, 600V according to CSA
- Conventional thermal current in open air [Ith]: 10A at <60°C
- Rated closing power Irms: 140A "AC" complying with IEC 60947-5-1, 250A DC complying with IEC 60947-5-1
- Allowable temporary rated current: 100A at <60 °C 1 s, 120A at <60 °C 500 ms, 140A at <60 °C 100 ms
- Type of protection: gG fuse 10 A
- Mechanical endurance: 30 Mccycles
Telemecanique front auxiliary contact block 2NA+2NC LADN22
€16.93
€16.93
Tax included
Tax included
Pay in installments with Klarna
Items Available: 90
Frequently bought together
LADN22 is an additional auxiliary contact block from Schneider Electric for TeSys D and TeSys F contactors. A front-mount block, it features 2NO+2NC instantaneous contacts up to 10 A 690 V AC. Can be used in safety applications due to certified NC mirror contacts. Easy front-mounting via clip, provides high reliability and durability. Available worldwide, has certification to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant.
Advantages:
- Additional block with mechanically connected 2NA+2NC auxiliary contacts, with instantaneous operation
- Suitable for safety system control due to its certified NC mirror contacts
- High electrical durability: several million operating cycles in AC-14/AC-15/DC-13 depending on conditions
- Clip-on front mounting on all TeSys D and TeSys F contactors
- Environmentally friendly product performance
Connections-clamps:
- Screw clamp terminals 1 cable 1...4 mm² flexible with cable termination
- Screw clamp terminals 1 cables 1...4 mm² flexible without cable termination
- Screw clamps 2 cables 1...2.5 mm² flexible with cable termination
- Screw clamps 2 cables 1...4 mm² flexible without cable termination
- Screw clamps 1 cable 1...4 mm² rigid without cable termination
- Screw clamps 2 cables 1...4 mm² rigid without cable termination
Tightening torque:
- 1.7 Nm - with Ø 6 mm flat screwdriver
- 1.7 Nm - with Philips screwdriver No 2
- 1.7 Nm - with pozidriv screwdriver No 2
Other technical features:
- Minimum switching current: 5 mA
- Minimum switching voltage: 17V
- Non-overlapping time: 1.5 ms to deactivation without overlap between NC and NO contacts, 1.5 ms to activation without overlap between NC and NO contacts
- Insulation resistance: > 10 MOhm
- Environmental characteristics: normal environment
- Degree of protection IP20 complying with IEC 60529
- Protection treatment: TH complying with IEC 60068
- Storage temperature: -60/+80 °C
- Operating ambient temperature: -5/+60 °C
- Operating altitude: 3000 m
Dimensions and color:
- Color: dark gray
- Height 48 mm
- Width 44 mm
- Depth 42 mm
Data sheet
- Type:
- Auxiliary Contacts
- Voltage:
- 690V
- Degree of protection:
- IP20
