Schneider TeSys LC1D Contactor 3P 12A AC3 380 V AC LC1D12Q7
SNR LC1D12Q7
3389110349320

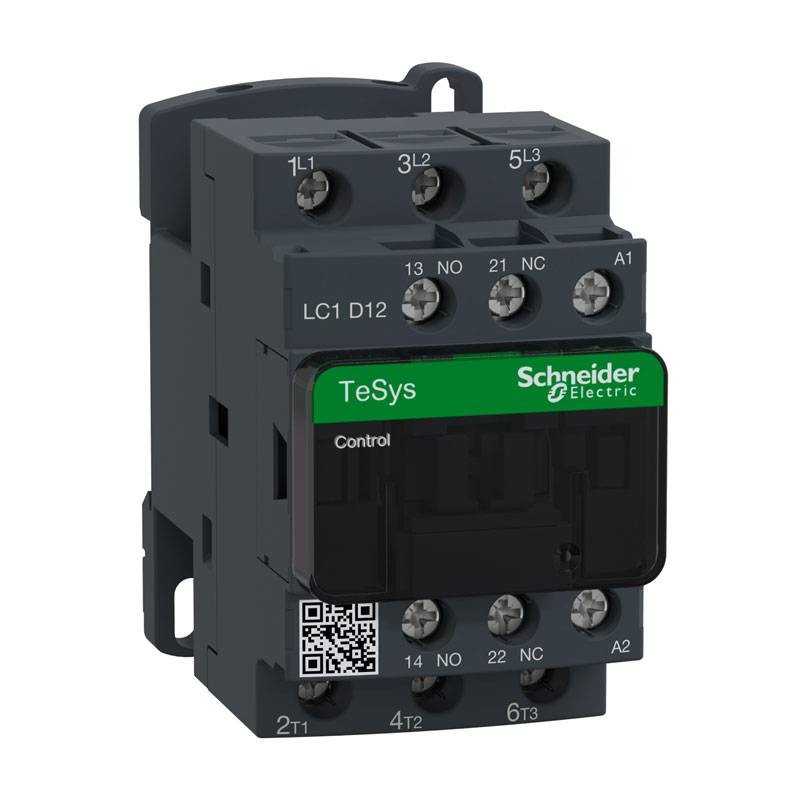

Schneider TeSys LC1D contactor with the following characteristics:
- Number of poles: 3
- Rated operating voltage
- Ue: <= 690 V "AC" 25...400 Hz Power circuit - <= 300 V DC Power circuit
- Rated use current
- Ie: 25A 60 °C) "AC" AC-1 for Power circuit at <= 440 V - 12A 60 °C) "AC" AC-3 for Power circuit at <= 440 V - 12A 60 °C) "AC" AC-3e for Power circuit at <= 440 V
- Contact pole composition: 3 NO
- Contact compatibility: M2
- Auxiliary contact composition: 1 NO + 1 NC
- Rated impulse withstand voltage: 6 kV in accordance with IEC 60947
€48.38
Items Available: 6
: 1
Frequently bought together
LC1D12Q7 is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 5.5 kW at 400 V. It includes a 380 V 50/60 Hz AC coil, built-in 1NA+1NC auxiliary contacts (NC mirror contact) and connection via screw terminals. Compact, DIN-rail-mounted, it ensures high reliability and durability. Available worldwide, it is certified for multiple standards (IEC, UL, CSA, CCC, EAC, Marine) and compatible with Green Premium (RoHs/Reach)
Rated use voltage (Ue):
- <= 690 V "AC" 25...400 Hz Power circuit
- <= 300 V DC Power circuit
Rated use current (Ie):
- 25 A 60 °C) "AC" AC-1 for Power circuit at <= 440 V
- 12 A 60 °C) "AC" AC-3 for Power circuit at <= 440 V
- 12 A 60 °C) "AC" AC-3e for Power circuit at <= 440 V
Motor power (kW):
- 3 kW at 220...230 V "AC" "50/60 Hz" (AC-3)
- 5.5 kW at 380...400 V "AC" "50/60 Hz" (AC-3)
- 5.5 kW at 415...440 V "AC" "50/60 Hz" (AC-3)
- 7.5 kW at 500 V "AC" "50/60 Hz" (AC-3)
- 7.5 kW at 660...690 V "AC" "50/60 Hz" (AC-3)
- 3.7 kW at 400 V "AC" "50/60 Hz" (AC-4)
- 3 kW at 220...230 V "AC" "50/60 Hz" (AC-3e)
- 5.5 kW at 380...400 V "AC" "50/60 Hz" (AC-3e)
- 5.5 kW at 415...440 V "AC" "50/60 Hz" (AC-3e)
- 7.5 kW at 500 V "AC" "50/60 Hz" (AC-3e)
- 7.5 kW at 660...690 V "AC" "50/60 Hz" (AC-3e)
Motor power in hp:
- 0.5 hp at 115 V for 1 phase motors "AC" "50/60 Hz"
- 2 hp at 230/240 V for 1 phase motors" AC" "50/60 Hz"
- 3 hp at 200/208 V for 3 phase motors" AC" "50/60 Hz"
- 3 hp at 230/240 V for 3 phase motors" AC""50/60 Hz"
- 7.5 hp at 460/480 V for 3 phase motors" AC" "50/60 Hz"
- 10 hp at 575/600 V for 3 phase motors" AC" "50/60 Hz"
Conventional thermal current in open air:
- 25 A at <60 °C for Power Circuit
- 10 A at <60 °C for signaling circuit
Rated closing power Irms:
- 250 A at 440 V for Power circuit complying with IEC 60947
- 140 A "AC" for signaling circuit complying with IEC 60947-5-1
- 250 A DC for signaling circuit complying with IEC 60947-5-1
Rated short-time allowable current:
- 105 A at <40 °C - 10 s for Power circuit
- 210 A at <40 °C - 1 s for Power circuit
- 30 A at <40 °C - 10 min for Power Circuit
- 61 A at <40 °C - 1 min per Power circuit
- 100 A - 1 s per signaling circuit
- 120 A - 500 ms per signaling circuit
- 140 A - 100 ms per signaling circuit
Associated fuse gauge:
- 10 A gG for signaling circuit complying with IEC 60947-5-1
- 40 A gG at <= 690 V coordination Type 1 for Power circuit
- 25 A gG at <= 690 V coordination Type 2 for Power circuit
Rated insulation voltage:
- 690 V complying with IEC 60947-4-1 Power Circuit
- 600 V CSA certified Power circuit
- 600 V UL certified Power circuit
- 690 V complying with IEC 60947-1 signaling circuit
- 600 V CSA certified signaling circuit
- 600 V UL certified signaling circuit
Features:
- Mechanical life span: 15 Mccycles
- Auxiliary contact composition: 1 NO + 1 NC
- Mechanically linked type 1 NO + 1 NC complying with IEC 60947-5-1
- Mirror contact type 1 NC complying with IEC 60947-4-1
- Minimum switching voltage: 17V per signaling circuit
- Minimum switching current: 5 mA per signaling circuit
- Insulation resistance: > 10 MOhm per signaling circuit
- IP rating: IP20 Front side complies with IEC 60529
- Dimensions and weight: height 77 mm width 45 mm depth 86 mm weight: 325 grams
There are no reviews
Data sheet
- Type: Contactors
- Poles: 3P
- Degree of protection: IP20
