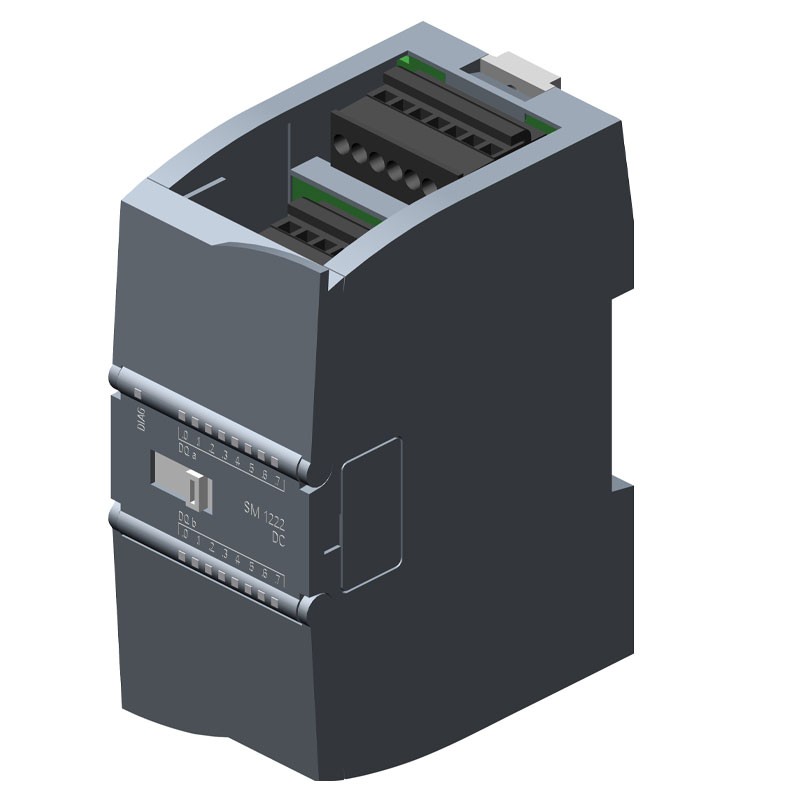

Siemens S7-1200 SM1222 16DO 24VDC Output Module 6ES72221BH320XB0
SIE 6ES72221BH320XB0
6940408101951
Digital output module Siemens S7-1200 SM 1222, DQ 16x24 VDC/0.5 A, with the following characteristics:
- Supply voltage: Allowable range, lower limit (DC) 20.4V - Allowable range, upper limit (DC) 28.8V
- Input current from the backplane bus DC 5 V, max. 140 mA
- Power dissipation: typ. 2,5W
- Digital outputs: 16
- Short-circuit protection No (to be provided externally)
- Limitation of opening inductive extra voltage on tip. (L+) -48 V
- Output voltage: Nominal value DC 24V, for signal "0," max. 0.1V; with load of 10 kOhm, for signal "1," min. DC 20V
- Output current: for signal "1" nominal value 0.5A - for signal "0" residual current, max. 10 µA
- Cable length: with shielding, max. 500 m - without shielding, max. 150 m
- Diagnostic alarm: yes
€227.07
Items Available: 49
: 1
Other technical features:
- LED diagnostic display for output status: yes
- IP20 degree of protection
- Free fall: Drop height, max. 0.3 m; five times, in shipping packaging
- Ambient temperature for storage/transportation: -40/+70°C
- Atmospheric pressure according to IEC 60068-2-13: Storage/transport, min. 660 hPa - Storage/transport, max. 1 080 hPa
- Relative humidity: Operating at 25 °C without condensation, max. 95 %.
- Front connector required
- Housing material: plastic
- Dimensions: Width 45mm - Height 100mm - Depth 75mm
- Weight: 220 grams approx.
There are no reviews
Data sheet
- Type: Digital output modules
- Voltage: 24V
