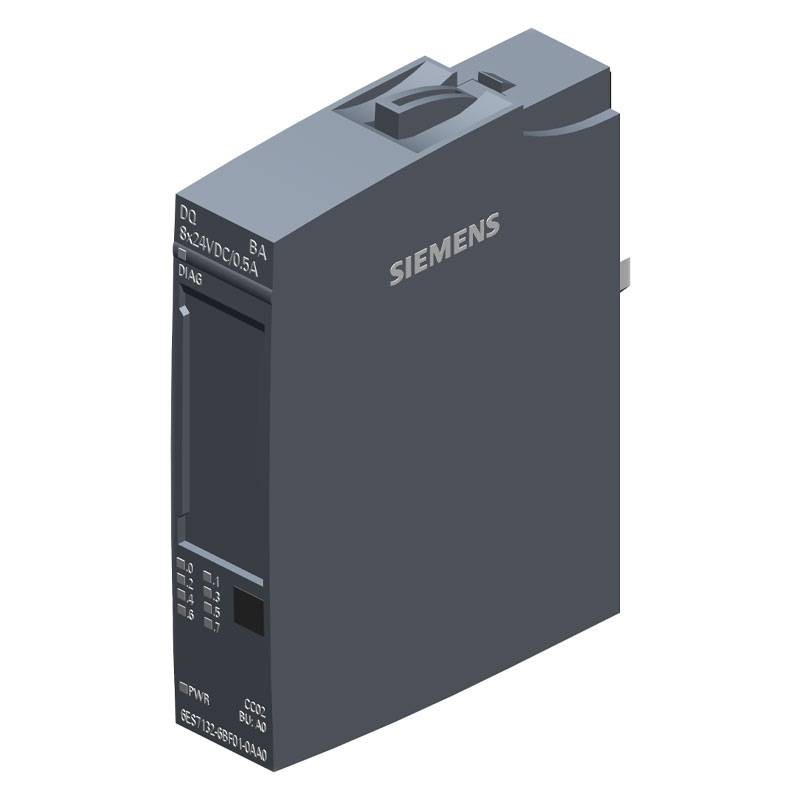

Siemens Simatic ET 200SP digital output module 8x 24V DC/0.5A 6ES71326BF010AA0
SIE 6ES71326BF010AA0
4047623408611
Siemens Simatic ET 200SP digital output module 6ES71326BF010AA0 with the following characteristics:
- Number of outputs: 8
- Rated value: 24V DC
- Current consumption: 45 mA without load
- Power dissipation: 1W
- Compatibility with base unit (BU) type A0
- Output logic: Source Output (PNP)
- Diagnostics: Power supply voltage monitoring

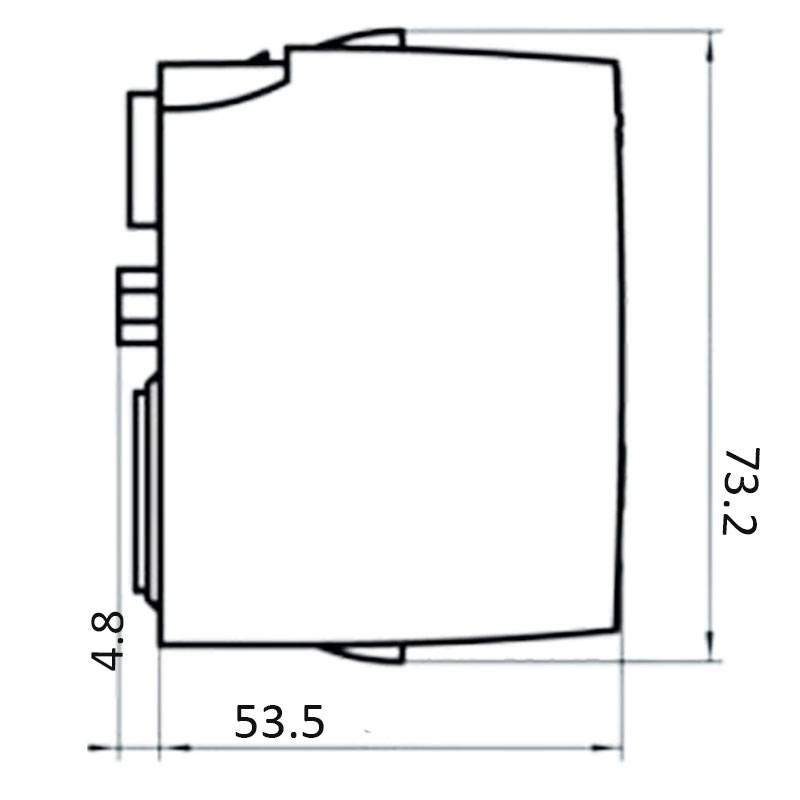

- Dimensions: 15x73x58 mm (W-H-P)
Ideal for controlling actuators in industrial automation systems.
€80.85
Items Available: 8
: 3
The Siemens SIMATIC ET 200SP DQ 8x 24V DC/0.5A Basic digital output module is designed to handle up to 8 24V DC digital outputs with a maximum capacity of 0.5A per channel.
It uses Source Output (PNP) logic, i.e., switching occurs on the positive side. It integrates a diagnostic module to monitor the supply voltage and offers a replacement value output function in case of an error.
It is compatible with A0-type base units and is color-coded CC02 for easy recognition and configuration.
Features:
- Rated value: DC 24 V
- Allowable range, lower limit: 19.2 V
- Allowable range upper limit: 28.8 V
- Addressing space per module, max. 1 byte
- Type of digital Source Output (PNP, switching to P)
- Number of outputs 8
- Closing on P
- Digital outputs, parameterizable
- Interrupting power of outputs: with ohmic load, max. 0.5 A - with lamp load, max. 5 W
- Horizontal mounting position: up to 60 °C, max. 4 A
- Vertical mounting position: up to 50 °C, max. 4 A
- Cable length: with shielding, max. 1 000 m - without shielding, max. 600 m
- Width 15 mm
- Height 73 mm
- Depth 58 mm
There are no reviews
Data sheet
- Type: Digital output modules
- Voltage: 24V
