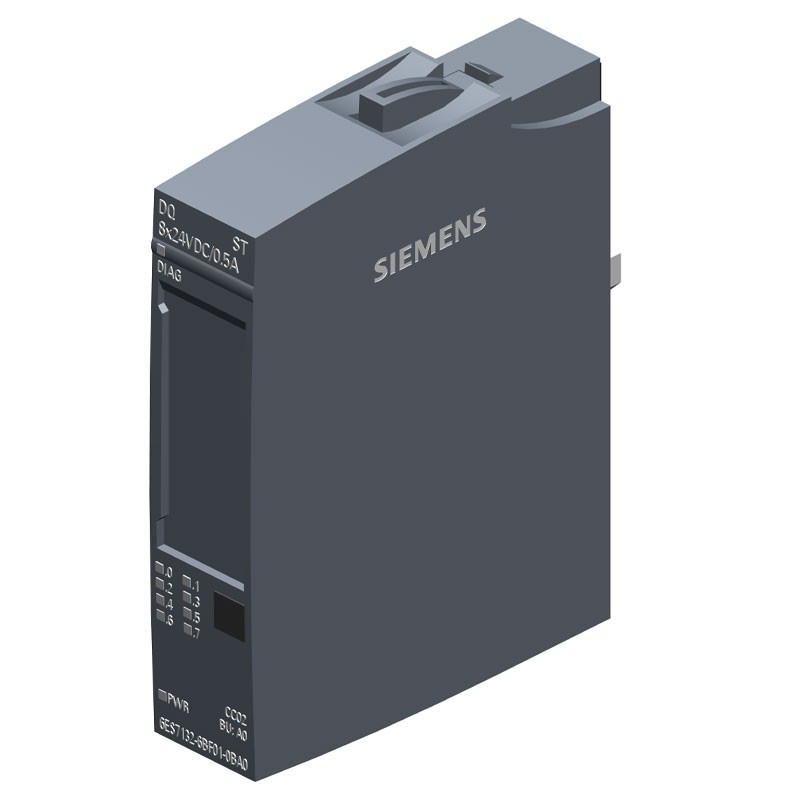

Siemens digital output module ET 200SP 8x 24V 6ES71326BF010BA0

Siemens
Siemens
SIE 6ES71326BF010BA0 4047623408703

Siemens digital output module ET 200SP, with the following characteristics:



  • Rated value (DC) 24V
  • Allowable range, lower limit (DC) 19.2V
  • Allowable range, upper limit (DC) 28.8V
  • Reverse polarity protection Yes
  • Current consumption, max. 35 mA; no load
  • Rated value (DC) 24V
  • Power dissipation, typ. 1W
  • Addressing space per module, max. 1 byte; + 1 byte for QI information
  • Number of digital outputs: 8
  • Cable length: with shielding, max 1000 m -without shielding, max 600 m
  • With alarm and diagnostic function
  • Insulation tested with DC 707 V (Type Test)
  • Max. installation altitude above sea level 5 000 m; Limitations for installation altitude > 2000 m
  • Dimensions: Width 15 mm - Height 73 mm - Depth 58 mm
  • Weight approx. 30 grams
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens digital output module ET 200SP 8x 24V 6ES71326BF010BA0
€78.27
€78.27

€78.27
Tax included
Calculate shipping cost
Items Available: 76
Further availability of the manufacturer
€78.27

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Ambient temperature in operation:

  • Horizontal mounting position, min. -30 °C; < 0 °C from FS02
  • Horizontal mounting position, max. 60 °C
  • Vertical mounting position, min. -30 °C; < 0 °C from FS02
  • Vertical mounting position, max. 50 °C

There are no reviews

Data sheet

Type:
Digital output modules
Voltage:
24V
