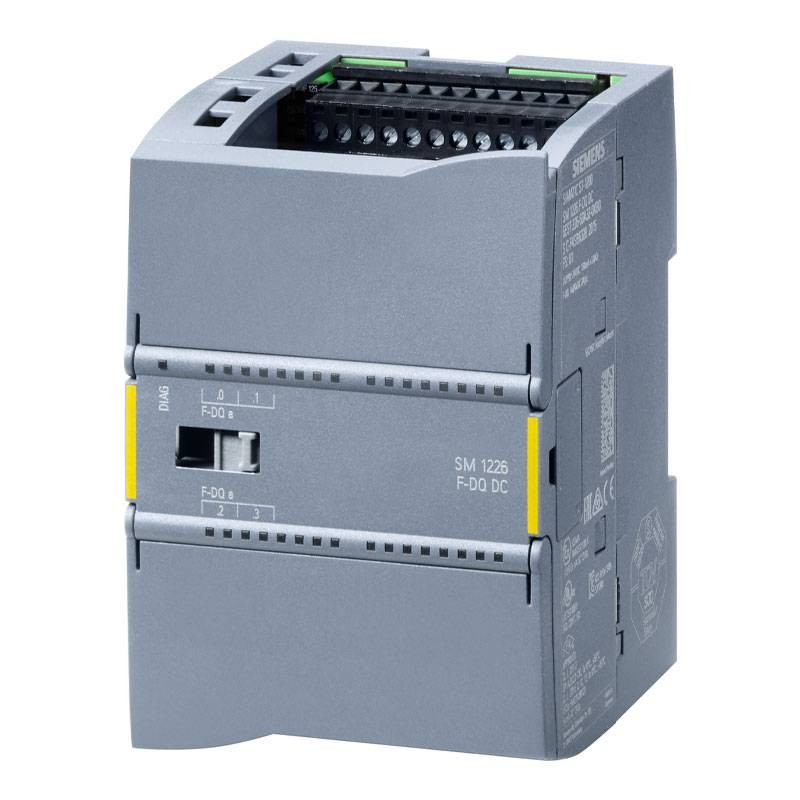

Siemens Simatic S7-1200 SM 1226 digital output module 4x DC 24V 2A 6ES72266DA320XB0
SIE 6ES72266DA320XB0
4025515082873
Siemens Simatic S7-1200 SM 1226 digital output module with the following features:
- Digital inputs: 4x DC 24V
- Nominal value: 24V DC
- Power dissipation: 8W
- Degree of protection: IP20
- Compatible with: SIMATIC S7-1200, for advanced industrial automation

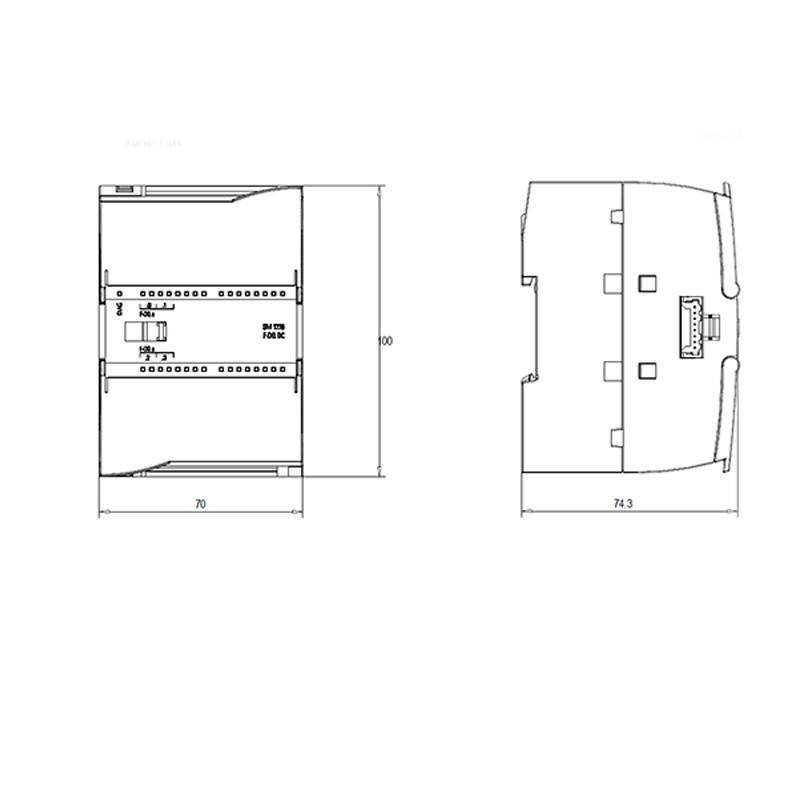

- Dimensions: 70x100x75 (W-H-P)
With a construction width of 70mm, it is easily integrated into industrial automation systems.
€261.10
Items Available: 26
: 3
SIMATIC S7-1200 SM 1226 F-DQ Digital Output Unit 4x DC 24V 2A is a module designed to provide 4 digital 24V DC outputs with a current capacity of 2A per channel.
It is compatible with the PROFIsafe protocol, ensuring secure communications for applications with high safety requirements.
This module supports up to PL e (ISO 13849-1) and SIL 3 (IEC 61508), offering maximum functional protection. With a construction width of 70 mm, it is easily integrated into industrial automation systems.
Features:
- Digital outputs: 4x 24V DC, 2A
- Safety: Up to PL e (ISO 13849-1), SIL 3 (IEC 61508)
- Protocol: PROFIsafe
- Application: Advanced industrial automation
- Compatible with: SIMATIC S7-1200, for advanced industrial automation
- Rated value: 24V DC
- Power dissipation: 8W
- Degree of protection: IP20
- Dimensions: 70x100x75 (W-H-P)
- Allowable range, lower limit (DC) 20.4 V
- Allowable range, upper limit (DC) 28.8 V
- Ambient temperature for operation: 0/+55 degrees
- Ambient temperature for storage/transportation: -40/+70 degrees
- Relative humidity: Operating at 25 °C without condensation, max. 95 %
- Material: Plastic
There are no reviews
Data sheet
- Type: Digital output modules
- Voltage: 24V
