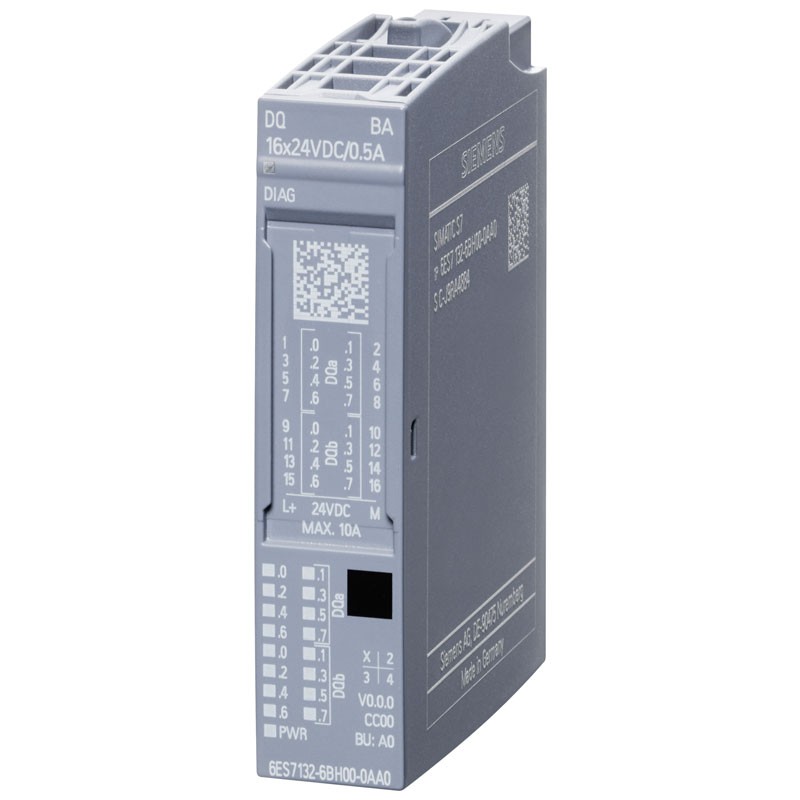

Siemens Simatic ET 200SP DQ 16X24VDC/0.5A Digital Output Module 6ES71326BH000AA0
SIE 6ES71326BH000AA0
4047623409397
Digital output module Siemens Simatic ET 200SP DQ 16X24VDC/0,5A suitable for BU type A0, Color code CC00, Diagnostic module.
€119.16
Items Available: 3
Features:
- DQ 16x24VDC/0.5A BA Product Type Designation.
- Hardware version From FS03
- Firmware version V0.0
- FW upgrade possible No
- BaseUnit usable BU Type A0
- Color code for module specific color coding plate CC00
- Product function I&M data Yes; I&M0 ... I&M3
- Engineering with: STEP 7 TIA Portal plannable/integrated from version V14 - STEP 7 plannable/integrated from version From STEP 7 V5.5 - PROFIBUS from version GSD/revision GSD Respectively a GSD file from revision 3 and 5 - PROFINET from version GSD/revision GSDML V2.3
- DQ operating mode Yes
- Supply voltage: Nominal value (DC) 24 V - Permissible range, lower limit (DC) 19.2 V - Permissible range, upper limit (DC) 28.8 V - Reverse polarity protection Yes
- Current consumption, max. 55 mA; no load
- Output voltage / header Nominal value (DC) 24 V
- Power loss, typ. 1 W
- Addressing space per module Outputs 2 bytes
- Digital outputs: Type of digital output Source Output (PNP, switching to P) - Number of outputs 16 - Closing on M No - Closing on P Yes - Digital outputs, parameterizable Yes - Short-circuit protection Yes - Trip threshold, typ. 1,4 A; 0,7 ... 1,9 A - Conductor break detection No - Limitation of opening inductive overvoltage on Typ. L+ (-53 V) - Control of a digital input Yes
- Switching capacity of outputs with ohmic load, max. 0.5 A - with lamp load, max. 5 W
- Dimensions: Width 15 mm - Height 73 mm - Depth 58 mm
- Weight 30 g.
There are no reviews
Data sheet
- Type: Digital output modules
- Voltage: 24V
