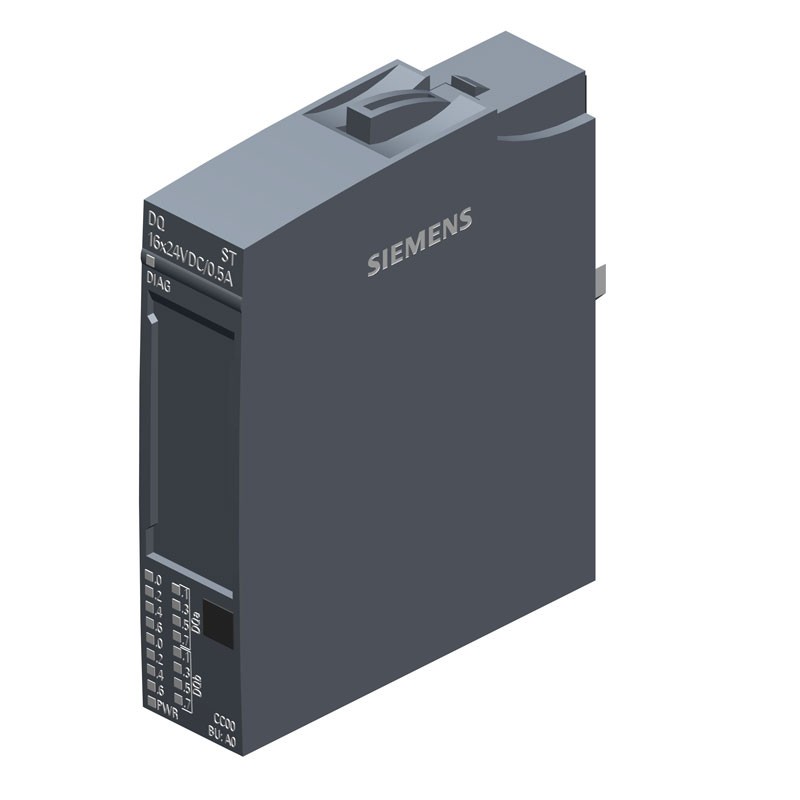

Siemens digital output module ET 200SP 16x 24V 6ES71326BH010BA0

Siemens
Siemens
SIE 6ES71326BH010BA0 4047623408574

Siemens digital output module SIMATIC ET 200SP, with the following features:

  • Nominal value (DC): 24V
  • Permissible range, lower limit (DC): 19.2V
  • Allowable range, upper limit (DC): 28.8V
  • Reverse polarity protection: Yes
  • Current consumption, max: 60 mA; no load
  • Power loss: Power loss, typ. 1W
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens digital output module ET 200SP 16x 24V 6ES71326BH010BA0
€119.81
€119.81

€119.81
Tax included
Calculate shipping cost
Items Available: 32
Further availability of the manufacturer
€119.81

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Output current:

  • for signal "1" nominal value 0.5A
  • for signal "0" residual current, max. 0.1 mA

Digital outputs

  • Type of digital output Source Output (PNP, switching to P)
  • Number of outputs: 16
  • Closing on M: No
  • Closing on P: Yes
  • Digital outputs, parameterizable Yes
  • Short-circuit protection Yes - Trip threshold, typ. 1 A; 0,7 ... 1,3A
  • Conductor break detection: Yes
  • Limitation of opening inductive overvoltage on tip: L+ (-50 V)
  • Digital input control: Yes

Operating ambient temperature:

  • Horizontal mounting position, min: -30 °C; < 0 °C from FS03
  • Horizontal mounting position, max: 60 °C
  • Vertical mounting position, min: -30 °C; < 0 °C from FS03
  • Vertical mounting position, max: 50 °C

Dimensions and weight:

  • Width 15 mm
  • Height 73 mm
  • Depth 58 mm
  • Weight: approx. 30 grams

There are no reviews

Data sheet

Type:
Digital output modules
Voltage:
24V
