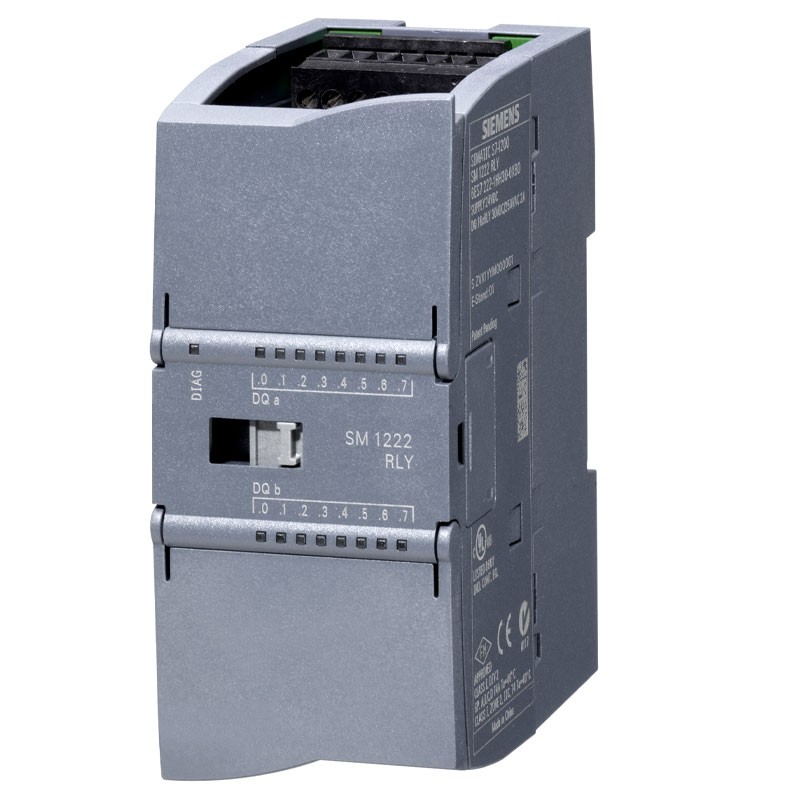

Siemens S7-1200 SM1222 Output Module 16 DO RELAIS 2A 6ES72221HH320XB0
SIE 6ES72221HH320XB0
6940408101968
Siemens S7-1200 SM 1222 digital output module , DQ 16x relay/2A, with the following features:
- Supply voltage: Allowable range, lower limit (DC) 20.4V - Allowable range, upper limit (DC) 28.8V
- Input current from backplane bus DC 5 V, max. 135 mA
- Digital outputs from load voltage L+, max. 11 mA / relay coil
- Power dissipation: typ. 8.5W
- Digital outputs: 16
- Short-circuit protection No (to be provided externally)
- Output voltage: Rated value (DC) DC 5V ... DC 30V - Rated value (AC) 5 ... 250V AC
- Output current: for signal "1" rated value 2A
- Cable length: with shielding, max. 500 m - without shielding, max. 150 m
- Diagnostic alarm: yes
![](https://www.elettronew.com/53315-large_default/output-module-siemens-s7-1200-sm1222-16-do-relais-2a-6es72221hh320xb0.jpg)
Siemens S7-1200 SM1222 Output Module 16 DO RELAIS 2A 6ES72221HH320XB0
€229.32
€229.32
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 67
Other technical features:
- Diagnostic display LEDs for output status: yes
- Allowable potential difference between different circuits AC 750 V for 1 minute
- IP20 degree of protection
- Free fall: Drop height, max. 0.3 m; five times, in shipping packaging
- Ambient temperature for storage/transportation: -20/+40°C
- Atmospheric pressure according to IEC 60068-2-13: Storage/transport, min. 660 hPa - Storage/transport, max. 1 080 hPa
- Relative humidity: Operating at 25 °C without condensation, max. 95 %.
- Front connector required
- Housing material: plastic
- Dimensions: Width 45mm - Height 100mm - Depth 75mm
- Weight: 260 grams approx.
Data sheet
- Type:
- Digital output modules
