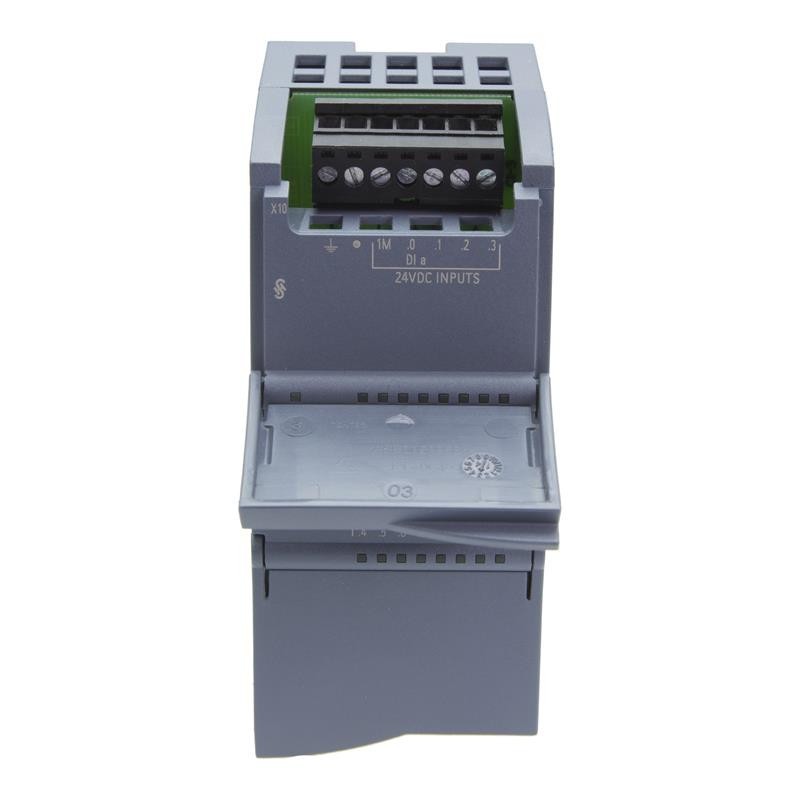

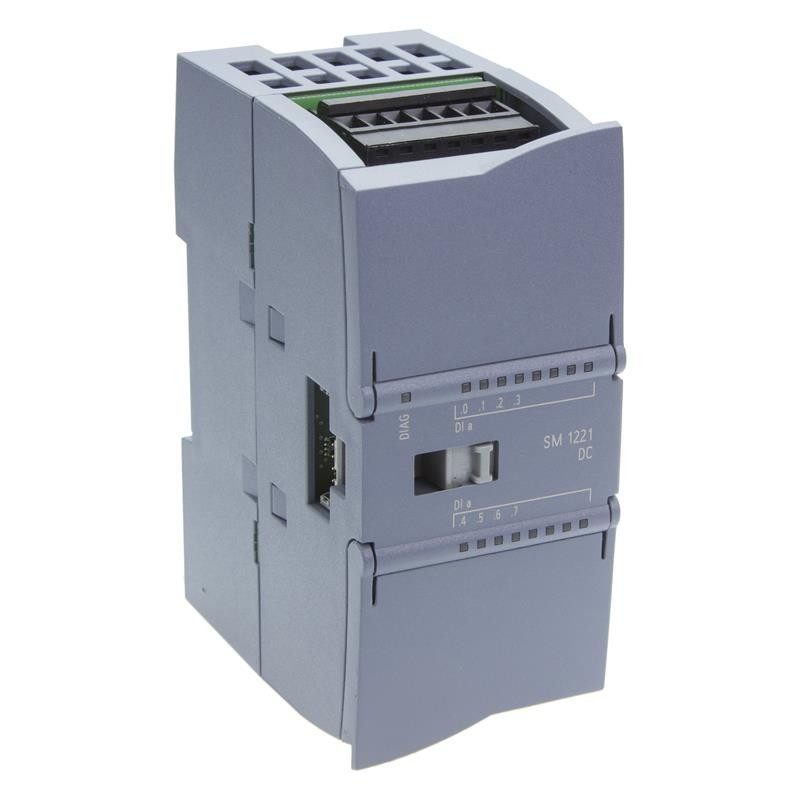

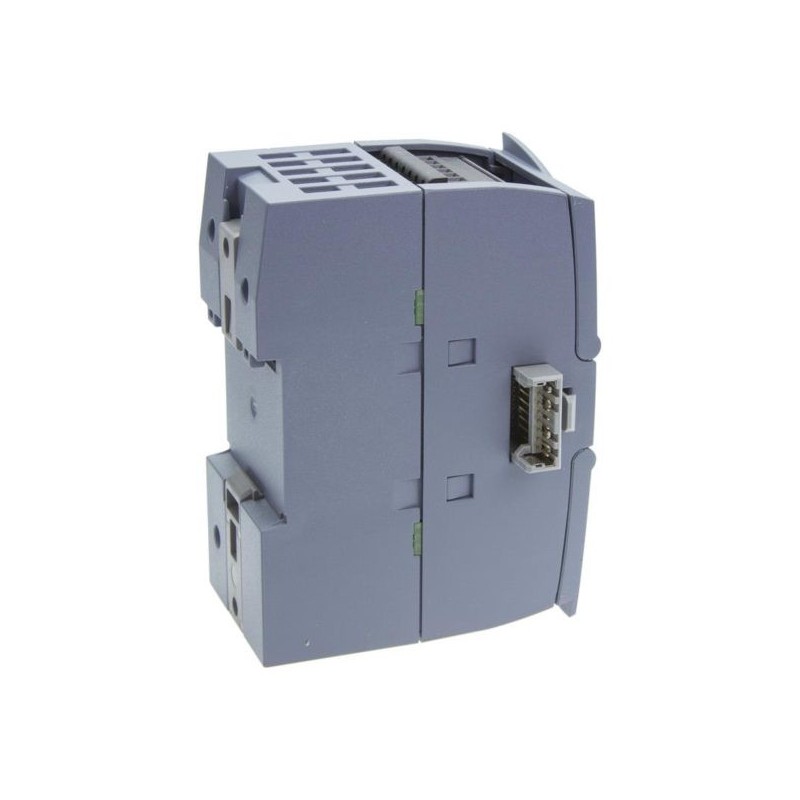

Siemens S7-1200 SM1221 8DI 24VDC Output Module 6ES72211BF320XB0

Siemens
Siemens
SIE 6ES72211BF320XB0

Siemens SIMATIC S7-1200 output module, with the following features:

  • Nominal value (DC) 24V
  • Permissible range, lower limit (DC) 20.4V
  • Permissible range, upper limit (DC) 28.8V
  • Input current from backplane bus DC 5 V, max: 105 mA
  • Digital inputs: from load voltage L+ (no load), max. 4 mA; per channel
  • Transmitter supply voltage/header: present
  • Power dissipation, typ: 1.5W
  • Supply voltage of transmitters/header: present
  • Number of inputs: 8 (in groups of 2)
  • Input characteristic according to IEC 61131, Type 1: yes
  • Protection class IP20
  • Housing material (on front side): plastic
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens S7-1200 SM1221 8DI 24VDC Output Module 6ES72211BF320XB0
€142.04
€142.04

€142.04
Tax included
Calculate shipping cost
Items Available: 77
Further availability of the manufacturer
€142.04

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Dimensions and weight:

  • Width 45 mm
  • Height 100 mm
  • Depth 75 mm
  • Weight: about 170 grams

There are no reviews

Data sheet

Type:
Digital output modules
Voltage:
24V
