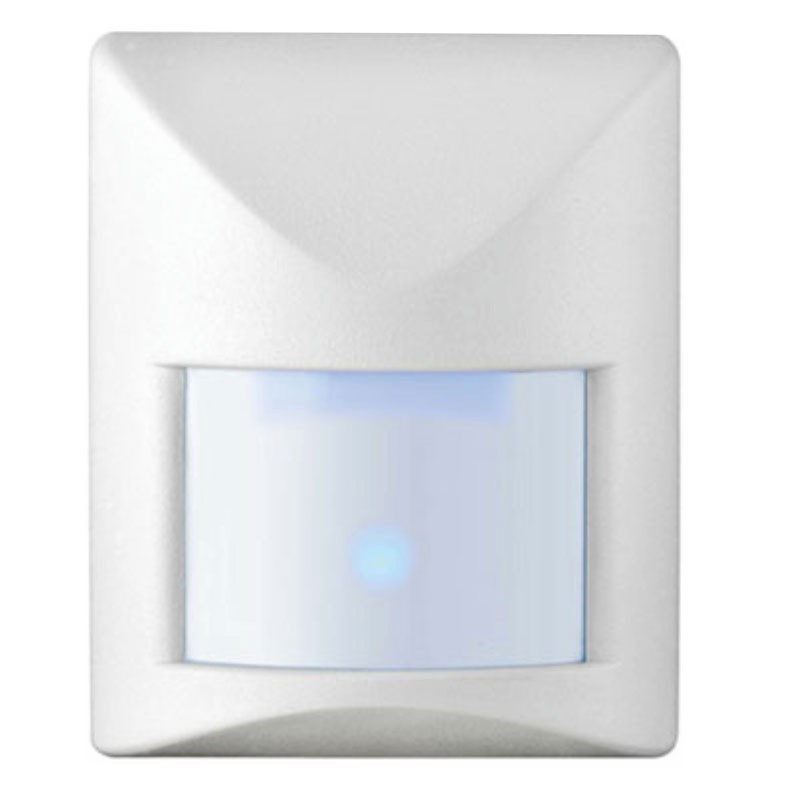

Urmet Passive infrared detector 12 metres 12V 1033/012
UTD 1033/012
8021156056491
Urmet passive infrared detector 12 metres, 12V power supply EN50131-2-4, range 15 metres, for indoors.
€16.85
Items Available: 13
: 1
Features:
- Digital passive infrared volumetric detector
- Two selectable sensitivity levels
- Adjustable range, max 15 metres
- Opening angle 90°.
- Sensitive zones: 18 on 4 levels with creep zones
- Wall or corner mounting
- Rated supply voltage: 12V +/- 3V
- Power consumption at 12 V: max. 17 mA
- Alarm relay: 100mA / 24V
- Tamper relay: 100 mA / 30V
- Operating temperature: -10°C to +55°C
- Dimensions (H x W x D): 60 x 60 x 45 mm
- Weight: 65 grams
- Joint for wall or ceiling mounting (optional)
Data sheet
- Type: Detectors
