Urmet IR infrared detector 12x12 meters 1033/152
UTD 1033/152
8021156077007

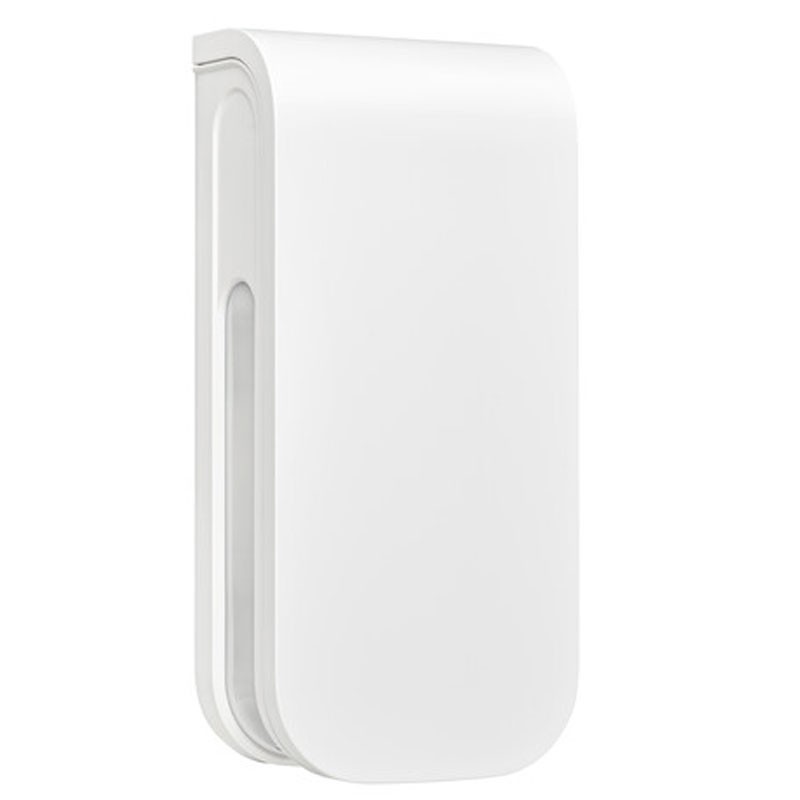

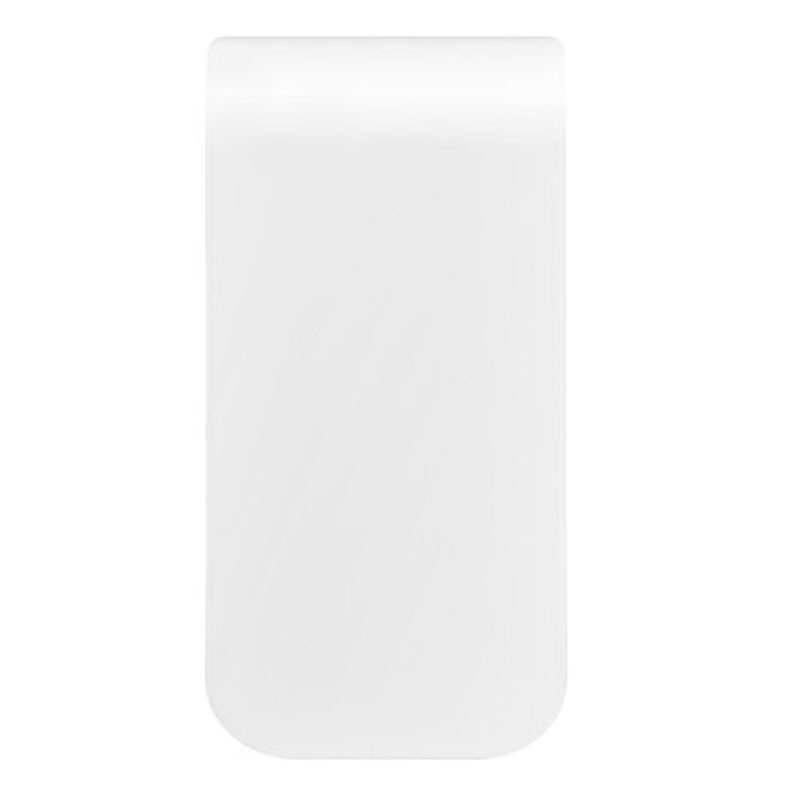

Urmet outdoor passive infrared detector with 4 pyroelectric elements, line 1061, 1067, 1068, with the following features:
- Current consumption : 34 mA max@12Vdc
- Infrared range : from 2.5 m to max 12 m per detection side (RIGHT -SX) with 180° angle
- Sensitivity: individually selectable for each side
- Detection angle from wall: 0° or 3° selectable
- Alarm time: 2.0 ± 1 second
- Warm-up period: 60 seconds or less (LED flashes)
- Separate right and left alarm output: 100mA 28VDC max. [N.O. or N.C.] selectable
- Tamper output: N.C. 100mA 28VDC max. Opens when front cover, main unit or base are removed
- Operating temperature: -30°C to +60°C
- Ambient humidity: 95% max.
- Degree of protection: IP55
- Mounting height: m 0.80 to 1.20
- Weight: 430 grams
€155.78
Items Available: 4
It is a two-sided curtain-effect wired detector with passive infrared (PIR) motion sensor, which can detect movement in an assigned area and report it to the control panel to trigger the intrusion alarm. Suitable for both indoor and outdoor environments. The base of the product has provisions for holes that allow installation on a flat surface. The detector has a tamper switch that is activated when the cover is opened or when an attempt is made to remove it from the wall. The detector is designed to operate with a detection range of 12 meters for each detection side (RIGHT - LEFT) mounted at a height ranging from 0.8 to 1, 2 meters above the ground.
There are no reviews
Data sheet
- Type: Detectors
