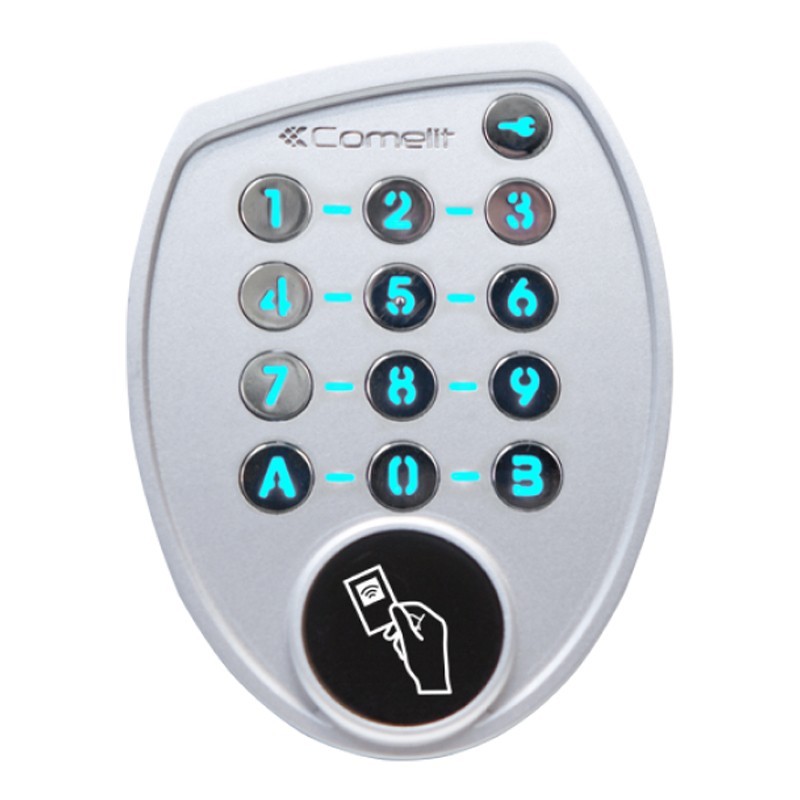

Comelit vandal-proof IP54 electronic keypad with Mifare RFID reader SKR
COE SKR
8023903304961
Vandal-proof electronic keypad with Comelit RFID Mifare reader, integrated for access control, made of zamak steel, with the following features:
-
Integrated Mifare RFID reader
-
Opening by code, badge or both
-
Up to 100 user codes + 1 super code
-
500 programmable badges
-
Dual configurable relays (monostable/bistable)
-
Wall mount, IP54
-
Clock, alarm and external relay management
€175.69
Items Available: 10
: 1
Electronic keypad with combined technology
The Comelit electronic key, represents a complete solution for access control in residential and professional environments. Equipped with a rugged, vandal-resistant zamak housing and backlit keypad, it provides secure management, even in low-light conditions.
Thanks to the built-in Mifare RFID reader, opening can take place in three modes: code only, badge only, or code + badge, offering flexibility according to the level of security required. The 500 programmable proximity badges make the device ideal for facilities with numerous users.
Intelligent functionality and centralized management
The 2 configurable relays allow activation in monostable (1-99 sec) or bistable mode, while the ability to connect an external relay via RS485 expands the possible applications. The system also handles clock input, alarm activation, and output button, offering complete control from a single device.
Suitable for any environment
Designed for outdoor or indoor use, the SKR operates in a wide temperature range (-25°C ÷ +55°C) and is protected from dust and water splashes according to IP54 grade. Its compact design (90x122x19 mm) and surface mounting simplify installation in any context.
Technical Specifications Comelit Electronic Key
General Data
| Alarm activation | Yes |
| Product Color. | Steel |
| Mounting | Surface |
| Available codes | 100 + 1 super code |
| Length of codes | 3 ÷ 6 digits |
| Current consumption (min) | 70 mA (standby + backlight active @13.98VDC) |
| Current consumption (max) | 170 mA (2 relays and buzzer active @13.98VDC) |
Main Functions
| Clock input management | Yes |
| External relay management | Yes |
| Relay timing adjustment | 1 ÷ 99 seconds |
| Access control system | Yes |
Hardware Features
| Total buttons | 13 |
| Key backlighting | Yes |
| Number of relays | 2 |
| Monostable and bistable relays | Yes |
Electrical Characteristics
| Supply voltage | 12 TO 33 VDC / 12 TO 24 VAC |
Environmental and Compliance Characteristics
| Operating Temperature | -25 ÷ 55 °C |
| IP rating | IP54 |
Data sheet
- Type: Keyboards
