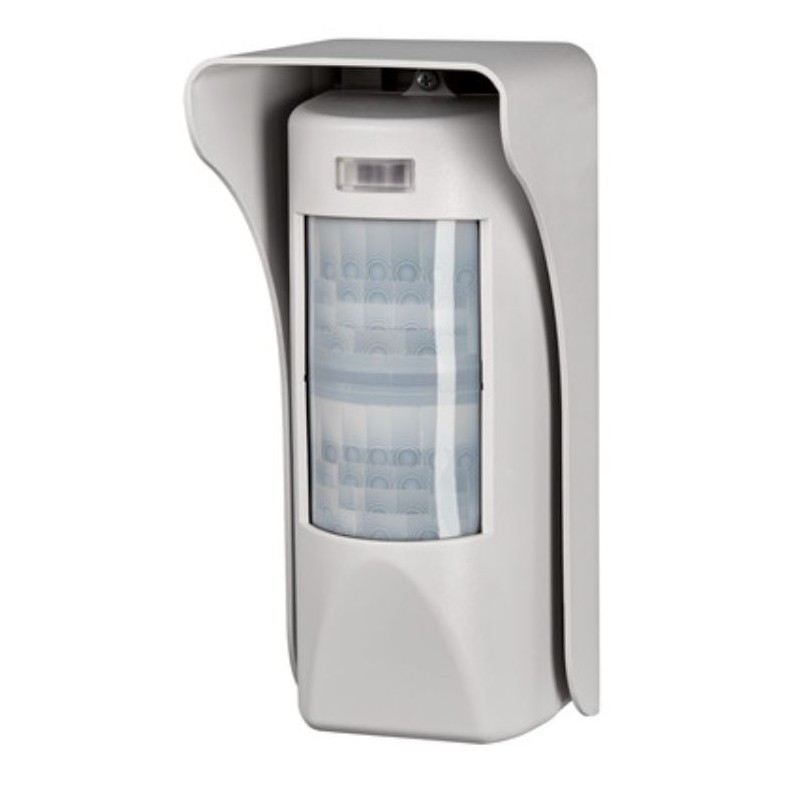

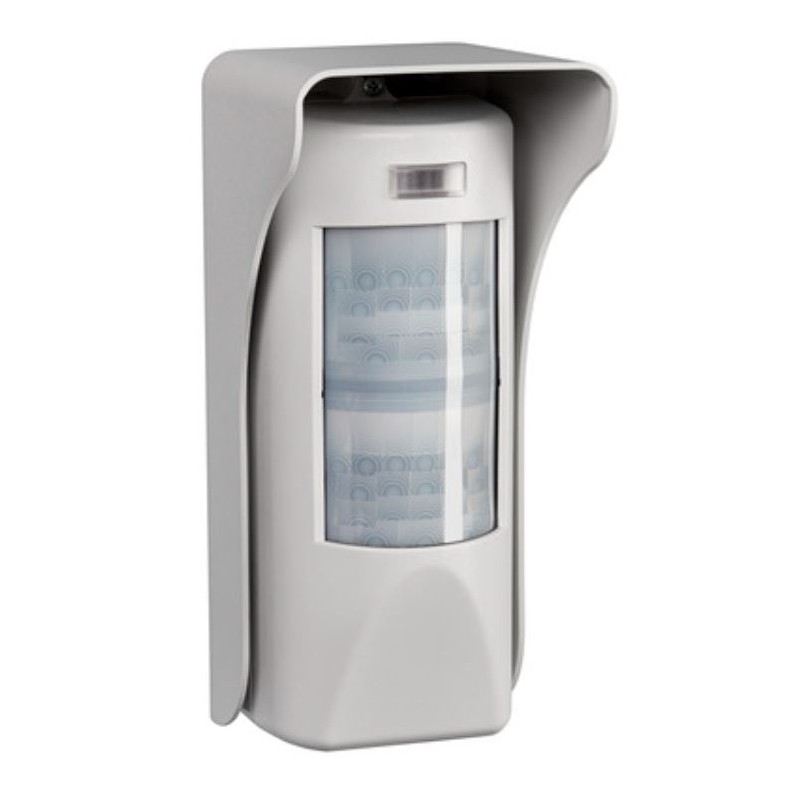

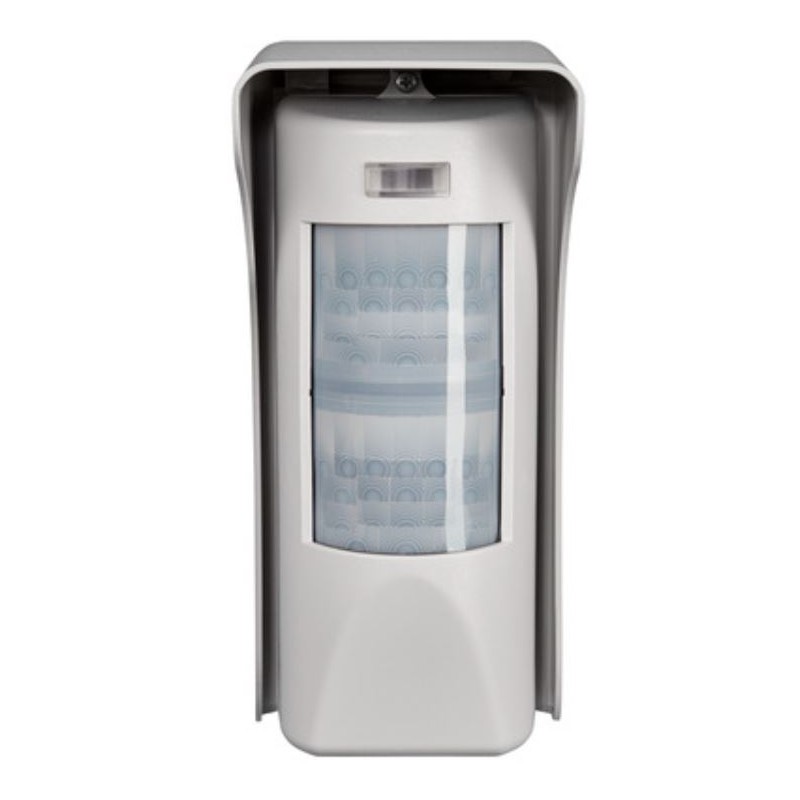

Urmet detector with dual technology Antimasking Pet Immunity 1033/146A
UTD 1033/146A
8021156069170
Urmet detector with dual Antimasking technology, with outdoor Pet Immunity function. Suitable for installations between 2 and 2.3 m high.
€108.54
Items Available: 53
: 3
Frequently bought together
The 1033/146A detector is a suitable device for the protection of outdoor environments. Its operating principle combines infrared (IR) and microwave (MW) technologies. It is equipped with Antimasking and Pet Immunity function. It is very similar to the current 1033/146 detector, but is suitable for installations between 2 and 2.3 m high.
Features:
- Double IR and microwave MW 10.525GHz
- Power supply: 12Vcc
- Max consumption: 45 mA
- Microwave MW 10.525GHz
- Antimasking
- Pet Immunity
- Max. flow rate: 10 m
- Tamper alarm
- Dynamic temperature compensation
- Degree of protection: IP54
- Installation between 2 mt and 2,30 mt
- Conforms to EN50131 grade 2
- Dimensions: 85 (W) x 185 (H) x 80 (D) mm.
E composed of two PASSIVE PYROELECTRICS, with Fresnell lens, and a 10.525 GHz MICROWAVE. The detector has a range between 3m and 10m.
MAIN PERFORMANCES:
- High detection efficiency and stability against false alarms thanks to dynamic temperature compensation
- An ACTIVE LED anti-masking system for the protection of the detector with the possibility of filtering by means of a MW anti-approach system (settable via DIP)
- High immunity to the presence of animals, guaranteed by an algorithm calibrated not to detect animals up to a medium size.
Data sheet
- Type: Detectors
- System: Antimasking
