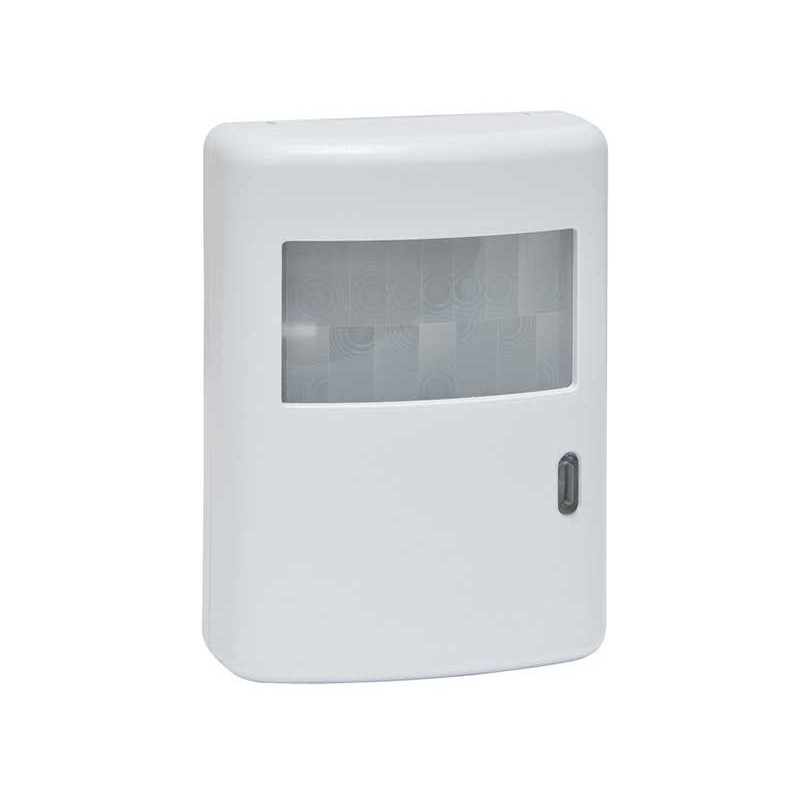

INSTALLATION: The installation must be carried out by fixing the detector XR152 in such a way that it can carry out the activity of radio transmission towards the central unit in an effective way. Therefore, avoid positioning it in places where there are shields for the signal towards the central unit, such as concrete pillars or large metal structures, or in the presence of radio sources on the transmission frequency. The range increases in relation to the absence of obstacles between the detector and the central unit. Fix the detector on the wall in a stable way, making sure that there are no vibrations. Avoid direct exposure to sunlight and do not direct the detector towards heat sources such as heaters or windows.

Features

• Hiltron series
• Double shielded element sensor, with Fresnel lens with 14 beams on 3 horizontal levels
• Signalling via LEDs of radio transmission and low battery status
• High immunity to RF noise
• Complete with anti-disorientation joint
• Detection test and radio transmission
• Tamper protection
• Sensor sensitivity adjustment by trimmer
• High immunity to RF 30Vm
• Rated supply voltage 9V battery (included)
• Standby consumption 10µA
• Alarm transmission interval 5 min
• Coverage angle H: 90°; V: 60° Low battery threshold 7,6 Volt
• Working frequency 433,92 MHz
• Infrared sensor range 12 mt
• Stabilization time at battery change 90
• Initial stabilization time 60"
• External container: ABS
• Dimensions (WxHxD) 67x83x65mm
