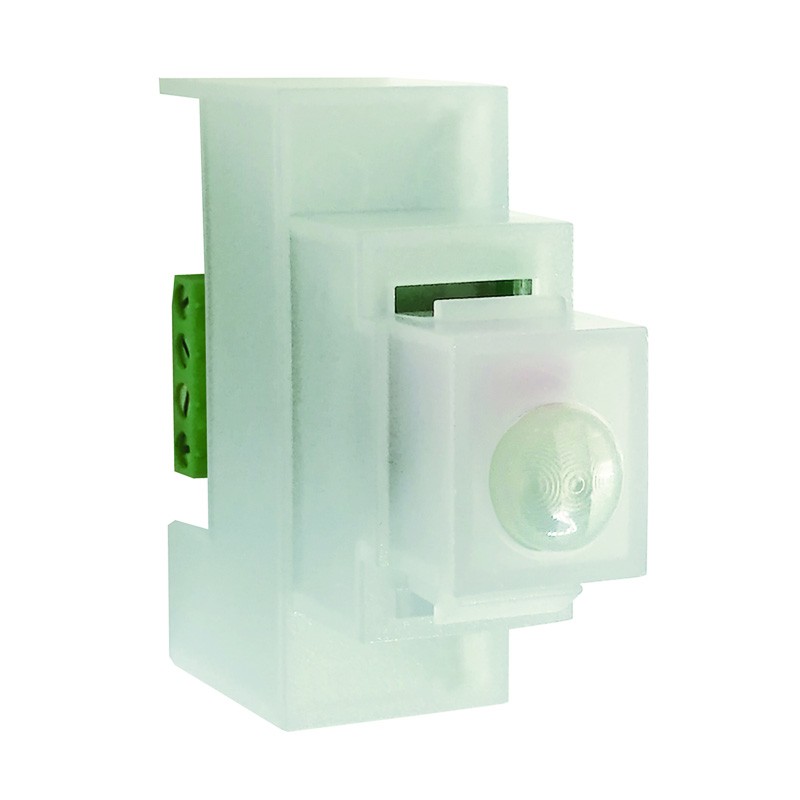

Hiltron recessed passive infrared detector with RJ45 connection XMJ45

Cia Hiltron
Cia Hiltron
C1A XMJ45 8056450413794

Hiltron recessed passive infrared detector with RJ45 connection for XM Series

Do you have questions about this product or did you not find what you were looking for? Ask us!
Hiltron recessed passive infrared detector with RJ45 connection XMJ45
€35.46
€35.46

€35.46
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€35.46

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Dual element digital sensor 1
  • Programmable local signalling
  • Connection on bus line 2 wires / 3 wires
  • Coverage 5 meters
  • Lens beams 3 (horizontal)
  • Sensitivity levels 8
  • Programmable pulse counter function
  • High immunity 30Vm
  • Led signaling programmable
  • White color
  • Rated supply voltage 12V
  • Maximum absorption 5mA (on +12V); 2mA (on MPX)
  • Initial stabilization time 60 sec.
  • Operating temperature +5°C ÷ 40°C
  • Safety grade 1
  • Environmental class 2
  • Dimensions (W) 19mm - (H) 33mm - (D) 47mm.

There are no reviews

Data sheet

Type:
Detectors
