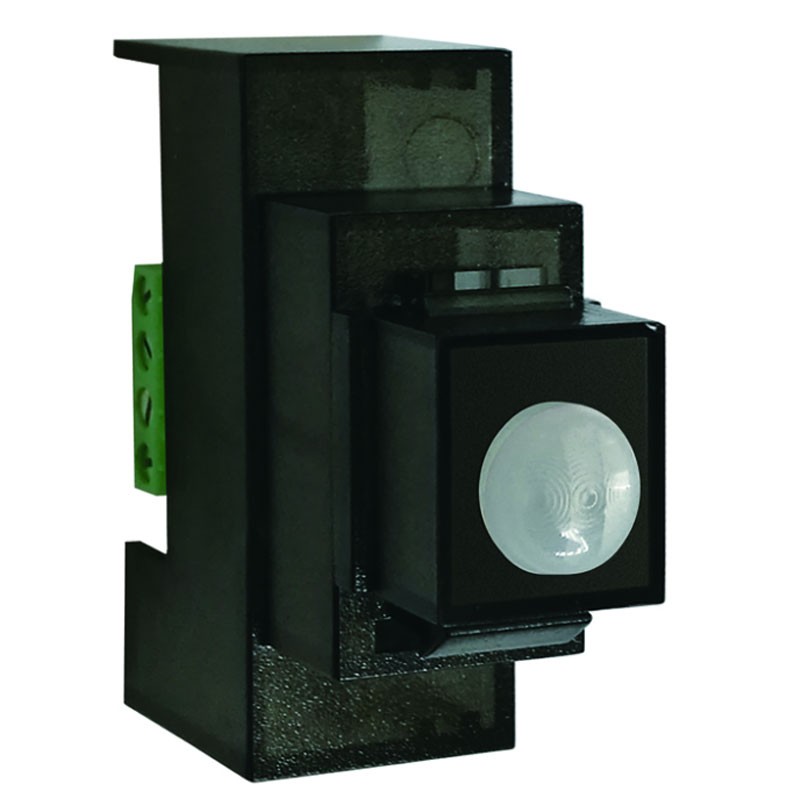

Hiltron passive infrared recessed detector IRINJ45F
C1A IRINJ45F
8056450413015
Cia Hiltron Recessed passive infrared detector, with the following features:
- Rated supply voltage 12Vdc 10%.
- Maximum absorption 5mA
- Solid state relay output NC 100mA, 50Vdc ma
- High immunity to RF 30Vm
- Dual element digital sensor (Digipyro™)
- Local alarm memory signaling
- Maximum coverage: 5 meters
- Signaling LEDs
- With Keystone™ connection
€29.37
Items Available: 34
: 15
It can be installed inside any recessed fixture end cap with RJ45 connection.
Features:
- Cia Hiltron Series
- Lens beams 3 (horizontal)
- Coverage angle H: 85°; V: 60°.
- Initial stabilization time 60 seconds
- Operating temperature +5°C 40°C
- Security grade: 1
- Environmental class: 2
- Colour: smoked
- Dimensions (WxHxD): 19x33x47mm
- Complies with CEI EN 50131-1 standard
OTTIMO PRODOTTO, FACILE DA INSTALLARE E COLLEGABILE ALLA MAGGIOR PARTE DELLE CENTRALI
Data sheet
- Type: Detectors
