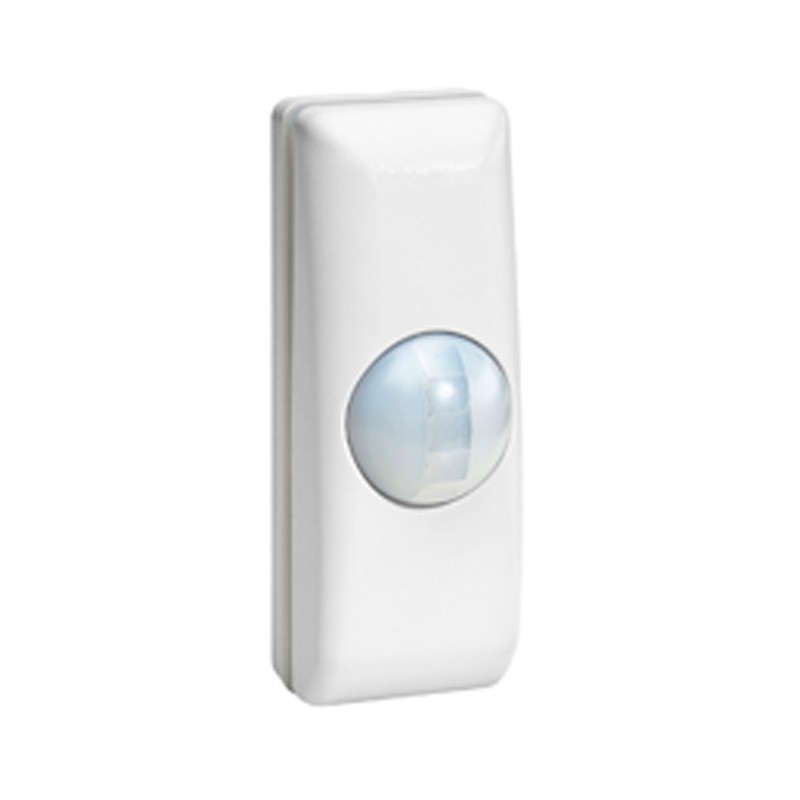

Mini Urmet dual technology curtain detector 1033/127
UTD 1033/127
8021156066896
Urmet curtain detector, with the following features:
- 12V power supply
- Max absorption: 27 mA
- Microwave 24GHz
- Led display settable via dip-switch
- Coverage max. 6 m settable
- Alarm time: 3 sec
€46.21
Items Available: 191
: 18
The detector is an indoor sensor, is suitable in all applications of small tertiary and residential (offices, stores, apartments, cottages, etc.). Its operating principle combines infrared (IR) and microwave (MW) technologies.
Its main features are:
- The coverage of the sensor with curtain effect, max 6 m depth
- The installation mode: from top to bottom (window center) and sideways
- Dynamic temperature compensation
- The LED display settable
Other technical features :
- Opto Relay: 100mA / 24V
- Tamper: 100mA /30V
- Wall Tamper: 300mA / 48V
- Working Temperature: -10°C/+55°C
- Environmental Humidity: 95%
- Performance Level: EN50131-2-4 Grade 2, CLASS II
- Dimensions: 35 (W) x 87 (H) x 32 (D) mm
Abbiamo comprato dei rilevatori a tendina. Prezzo migliore che su Amazon o Bricoman. Peccato per la spedizione,GLS assolutamente inattendibile e inaffidabile. Il venditore ha dovuto cambiare il corriere per riuscire a consegnarci la merce. Lodevole il tracking da parte della ditta.
Data sheet
- Type: Detectors
- System: Curtain
