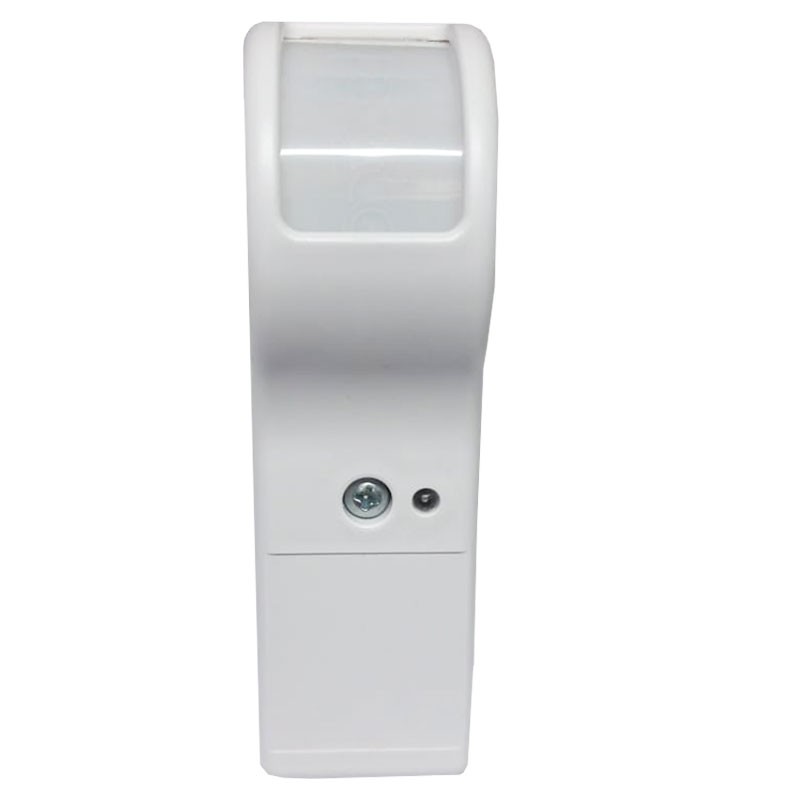

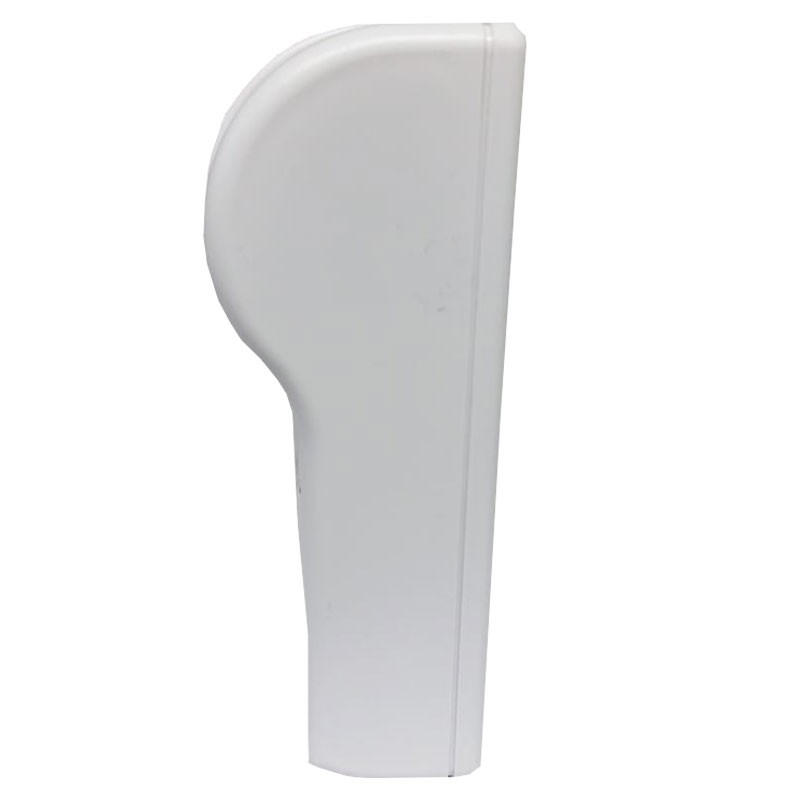

Bentel passive PIR curtain detector with angle MX461
BSY MX461
Curtain infrared detector Bentel, with the following features:
- Range: 8 meters
- Immunity: to RF: Up to 1 Ghz
- Alarm duration: 4 seconds
- Antisabotage: switch saparato
- Signalling LED: can be deactivated
- Temperature compensation: YES
- Solid state relay: YES
- Detection angle: 60 ° vertical -7 ° horizontal
- Ambient humidity: 95%.
- Power supply: 10/16 Vcc
- Consumption: 10 mA
- Dimensions in mm: 95 x 28 x 35
€17.42
Items Available: 5
: 3
Passive infrared curtainsensor with horizontal detection angle of only 7 degrees and a range up to 8 meters.
Particularly suitable for protecting frames, detecting transverse movements.
Its peculiarity to self-compensate for sudden changes in temperature, make it than other products on the market, more suitable to be installed in environments quite critical, the high technological content of the detection circuit makes the sensor very stable and suitable for outdoor applications in a protected environment.
NOTE: And 'to be strictly avoided exposure to direct weathering (rain, sunlight, etc. ..).
There are no reviews
Data sheet
- Type: Detectors
- System: Curtain
